K–20
AUTOMATIC TRANSAXLE

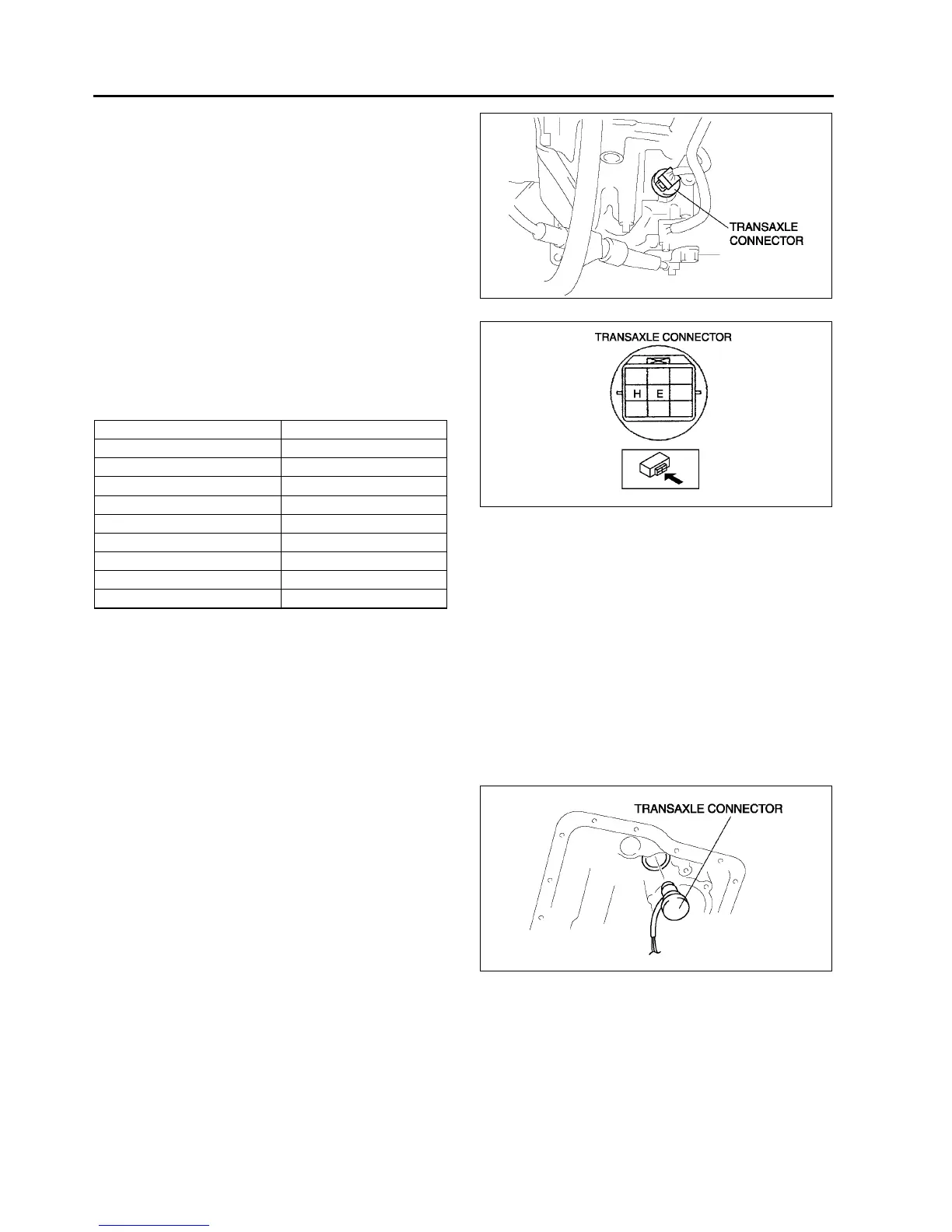

3. Disconnect the transaxle connector.
4. Measure the resistance between the terminals E
and H.
• If it is out of specification, perform the off-
vehicle inspection of TFT sensor. (See K–21
TRANSAXLE FLUID TEMPERATURE (TFT)
SENSOR REMOVAL/INSTALLATION.)
5. Install the air cleaner component. (See F–10 INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)
6. Connect the negative battery cable.
Off-Vehicle Inspection
Warning
• When the transaxle and ATF are hot, they can badly burn. Turn off the engine and wait until they
are cool before replacing ATF.
1. Remove the control valve body. (See K–34 CONTROL VALVE BODY REMOVAL.)
2. Remove the transaxle connector.
3. Remove the TFT sensor from the strainer, and
connect it to the transaxle connector.
4. Place the TFT sensor and a thermometer in ATF
as shown, and heat the ATF gradually.
ATF temperature (°C {°F}) Resistance (kilohm)
–20 {–4} 236—324
0 {32} 84.3—110
20 {68} 33.5—42.0
40 {104} 14.7—17.9
60 {140} 7.08—8.17
80 {176} 3.61—4.15
100 {212} 1.96—2.24
120 {248} 1.13—1.28
130 {266} 0.87—0.98
A6E5614W021
A6E5614W022
A6E5614W023
