ON-BOARD DIAGNOSTIC
K–97
K
Diagnostic procedure
STEP INSPECTION ACTION
1 VERIFY FREEZE FRAME DATA HAS BEEN
RECORDED
• Has FREEZE FRAME PID DATA been
recorded?
Yes Go to next step.
No Record FREEZE FRAME PID DATA on repair order, then
go to next step.
2 VERIFY RELATED REPAIR INFORMATION
AVAILABILITY
• Check for related Service Bulletins availability.
• Is any related repair information available?
Yes Perform repair or diagnosis according to available repair
information.
• If vehicle is not repaired, go to next step.
No Go to next step.
3 INSPECT ATX CONNECTOR FOR POOR
CONNECTION
• Turn ignition key to OFF.
• Disconnect ATX connector.
• Check for poor connection (damaged/pulled-
out terminals, corrosion, etc.).
• Is connection okay?
Yes Go to next step.
No Repair or replace connector and/or terminals, then go to
Step 11.
4 INSPECT RESISTANCE
• Inspect resistance between ATX connector
terminal G (transaxle case side) and body
ground.
• Is resistance within 1.0—4.2 ohms?
(See K–26 Resistance Inspection (On-Vehicle
Inspection).)
Yes Go to Step 7.
No Go to next step.

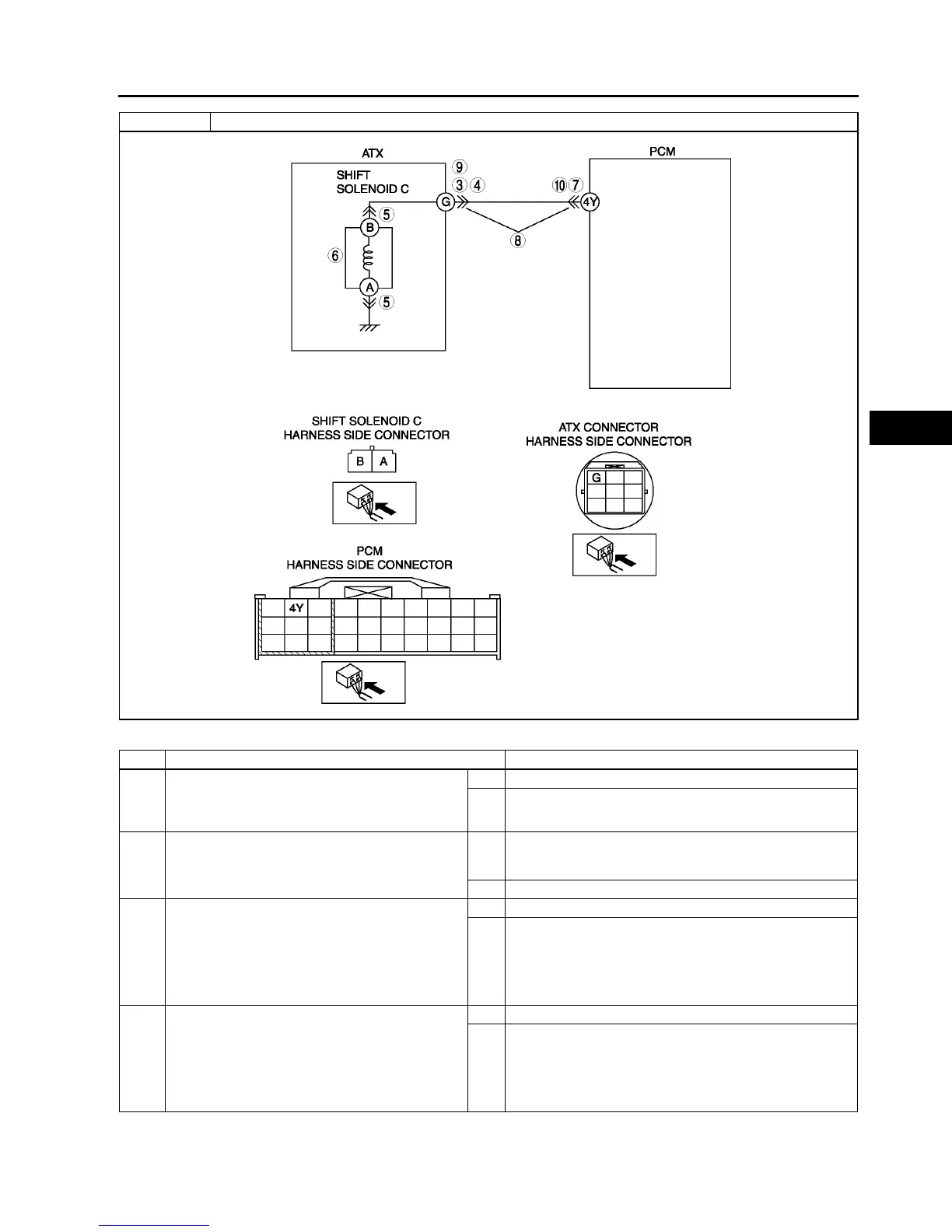

DTC P0763 Shift solenoid C malfunction (electrical)
