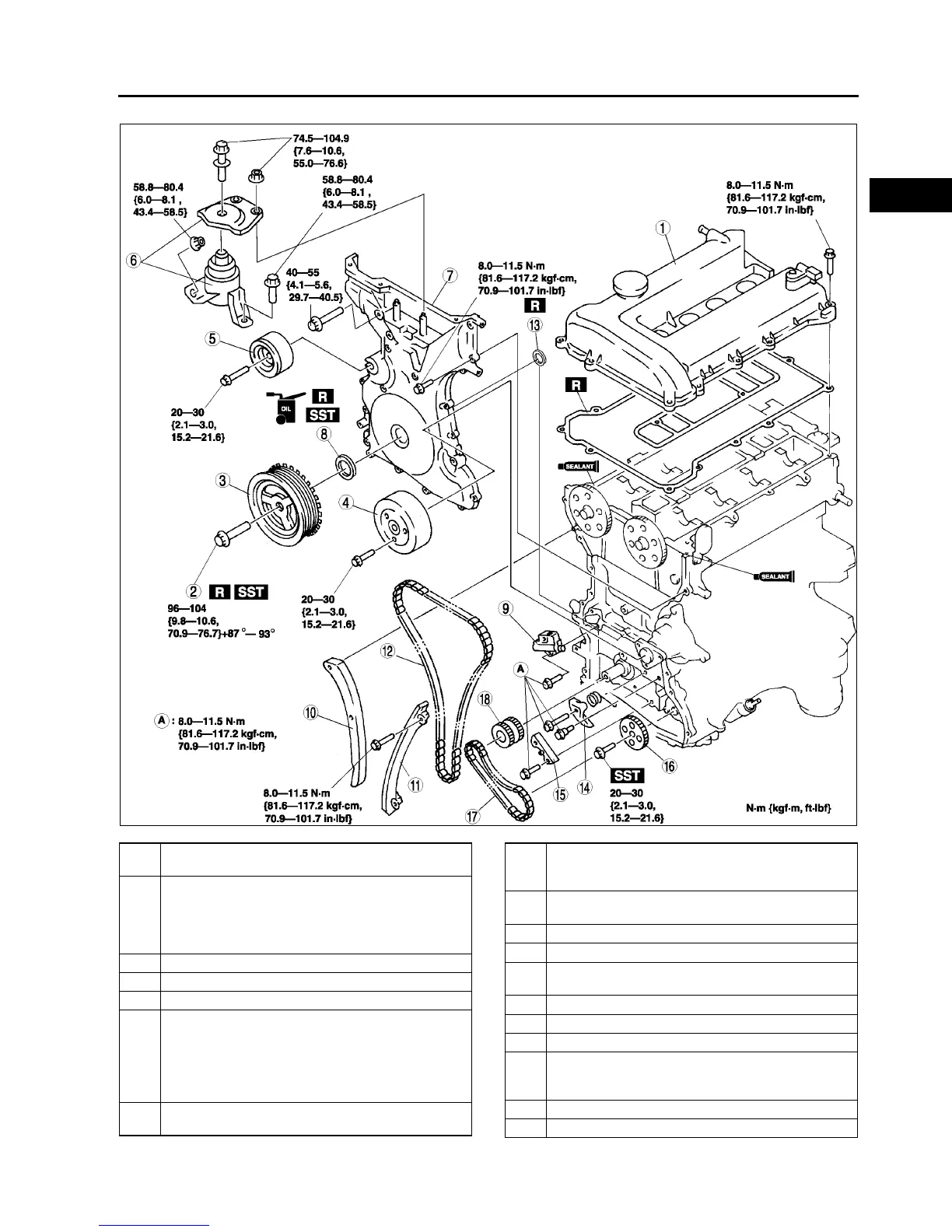

TIMING CHAIN
B–11
B
.
AME2215W001
1 Cylinder head cover
(See B–17 Cylinder Head Cover Installation Note)
2 Crankshaft pulley lock bolt
(See B–12 Crankshaft Pulley Lock Bolt Removal
Note)
(See B–16 Crankshaft Pulley Lock Bolt Installation
Note)
3 Crankshaft pulley
4 Water pump pulley
5 Drive belt idler pulley
6 No.3 engine mount rubber and No.3 engine joint
bracket
(See B–12 No.3 Engine Mount Rubber and No.3
Engine Joint Bracket Removal Note)
(See B–16 No.3 Engine Mount Rubber and No.3
Engine Joint Bracket Installation Note)
7 Engine front cover
(See B–14 Engine Front Cover Installation Note)
8 Front oil seal
(See B–13 Engine Front Cover Removal Note)
(See B–15 Front Oil Seal Installation Note)
9 Chain tensioner
(See B–12 Chain Tensioner Removal Note)
10 Tensioner arm
11 Chain guide
12 Timing chain
(See B–14 Timing Chain Installation Note)
13 Seal
14 Oil pump chain tensioner
15 Oil pump chain guide
16 Oil pump sprocket
(See B–13 Oil Pump Sprocket Removal Note)
(See B–13 Oil Pump Sprocket Installation Note)
17 Oil pump chain
18 Camshaft sprocket
To Next Page
