DRIVE SHAFT
M–21
M

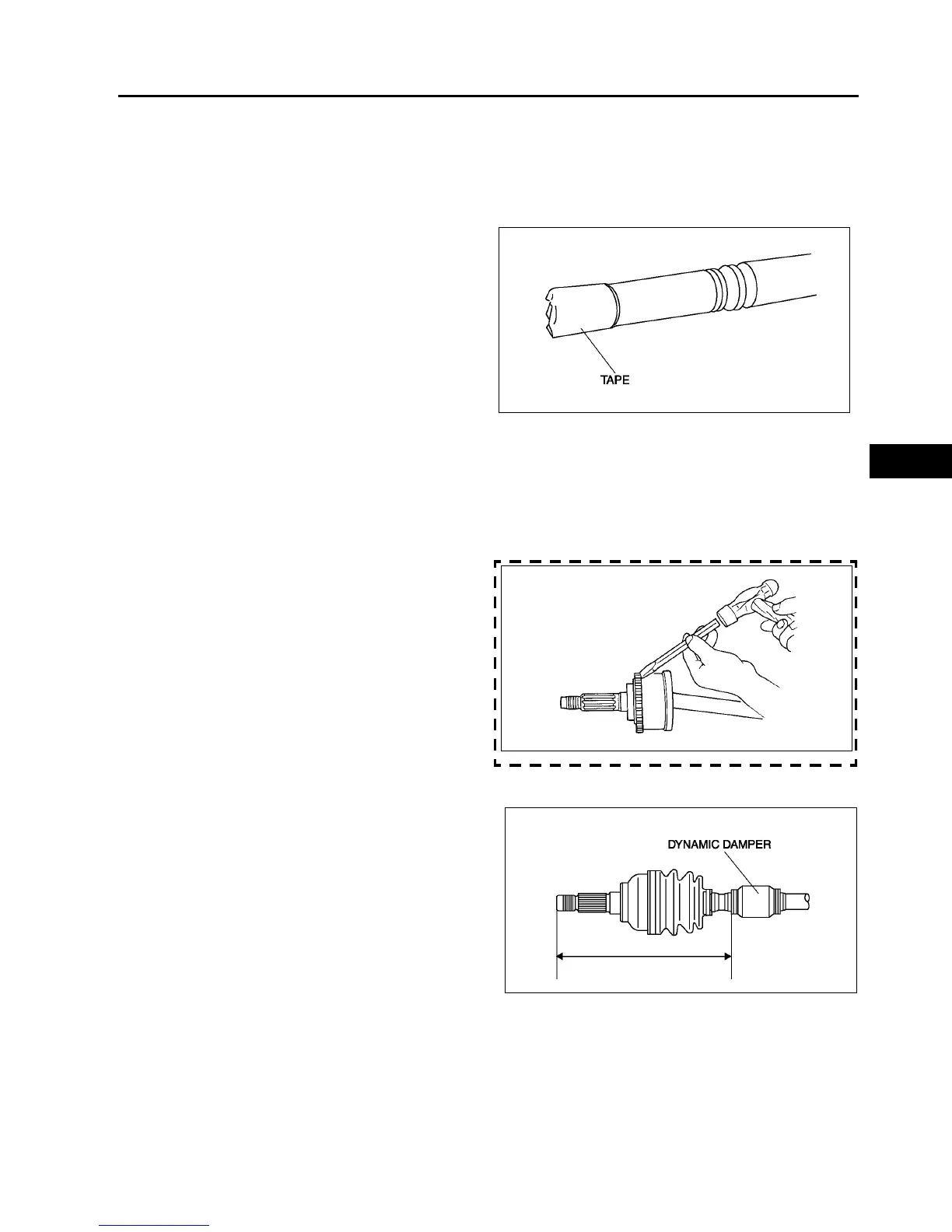

Boot Disassembly Note
Note
• The wheel side boot does not need to be removed unless replacing it or the ball joint and shaft
component.
• Do not strip the tape until the boot is assembled.
1. Wrap the shaft splines with tape.
2. Remove the boot.
ABS Sensor Rotor (With ABS) Disassembly Note
Caution
• Do not remove the sensor rotor unless it is necessary.
• Do not reuse the sensor rotor if removed.
1. Tap the ABS sensor rotor off the drive shaft using
a chisel.
Dynamic Damper Assembly Note
1. Install the dynamic damper as shown in the
figure.
Standard length
334.7—340.7 mm {13.2—13.4 in}
2. Install the new boot band onto the dynamic
damper.
A6E0313W048
ZLU0313W105
A6E6316W006
