DRIVE SHAFT
M–25
M

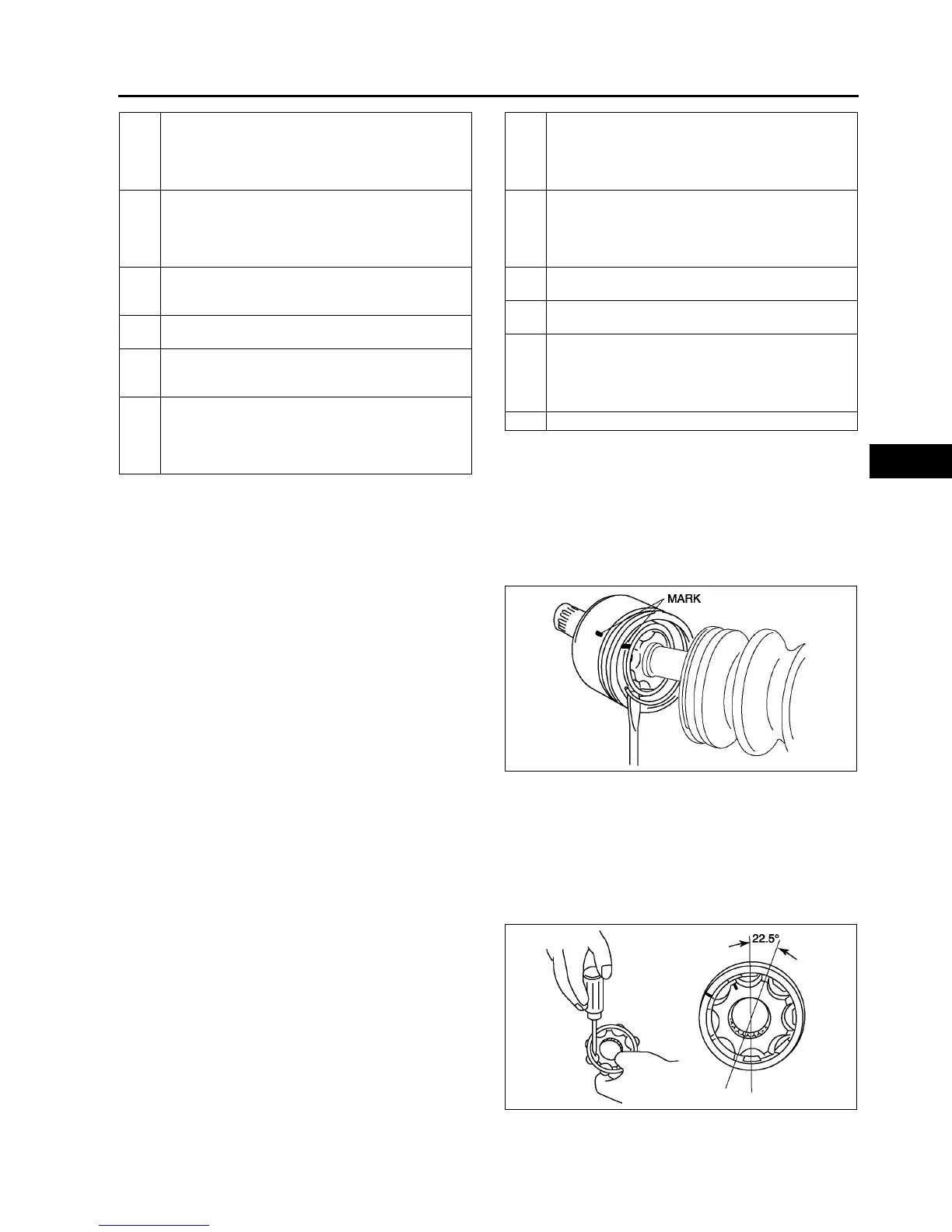

Clip Disassembly Note
1. Mark the drive shaft and outer ring for proper
assembly.
Caution
• Mark with paint; do not use a punch.
2. Remove the clip.
Balls, Inner Ring, Cage Disassembly Note
1. Mark the inner ring and cage.
Caution
• Mark with paint; do not use a punch.
2. Remove the snap ring using snap-ring pliers.
3. Turn the cage approximately 30 degree and pull
the cage and balls away from the inner ring.
1 Boot band (wheel side)
(See M–20 Boot Band (Wheel Side) Disassembly
Note)
(See M–23 Boot Band (Wheel Side) Assembly
Note)
2 Boot band (transaxle side)
See M–20 Boot Band (Transaxle Side) Disassembly
Note
See M–23 Boot Band (Transaxle Side) Assembly
Note
3Clip
See M–25 Clip Disassembly Note
See M–26 Outer Ring, Clip Assembly Note
4 Outer ring
(See M–26 Outer Ring, Clip Assembly Note)
5 Snap ring
(See M–26 Cage, Inner Ring, Balls, Snap Ring
Assembly Note)
6Balls
(See M–25 Balls, Inner Ring, Cage Disassembly
Note)
(See M–26 Cage, Inner Ring, Balls, Snap Ring
Assembly Note)
7 Inner Ring
(See M–25 Balls, Inner Ring, Cage Disassembly
Note)
(See M–26 Cage, Inner Ring, Balls, Snap Ring
Assembly Note)
8Cage
(See M–25 Balls, Inner Ring, Cage Disassembly
Note)
(See M–26 Cage, Inner Ring, Balls, Snap Ring
Assembly Note)
9Boot
(See M–26 Boot Assembly Note)
10 Dynamic damper
(See M–26 Dynamic Damper Assembly Note)
11 ABS sensor rotor
(See M–21 ABS Sensor Rotor (With ABS)
Disassembly Note)
(See M–22 ABS Sensor Rotor (With ABS) Assembly
Note)
12 Shaft and ball joint component
