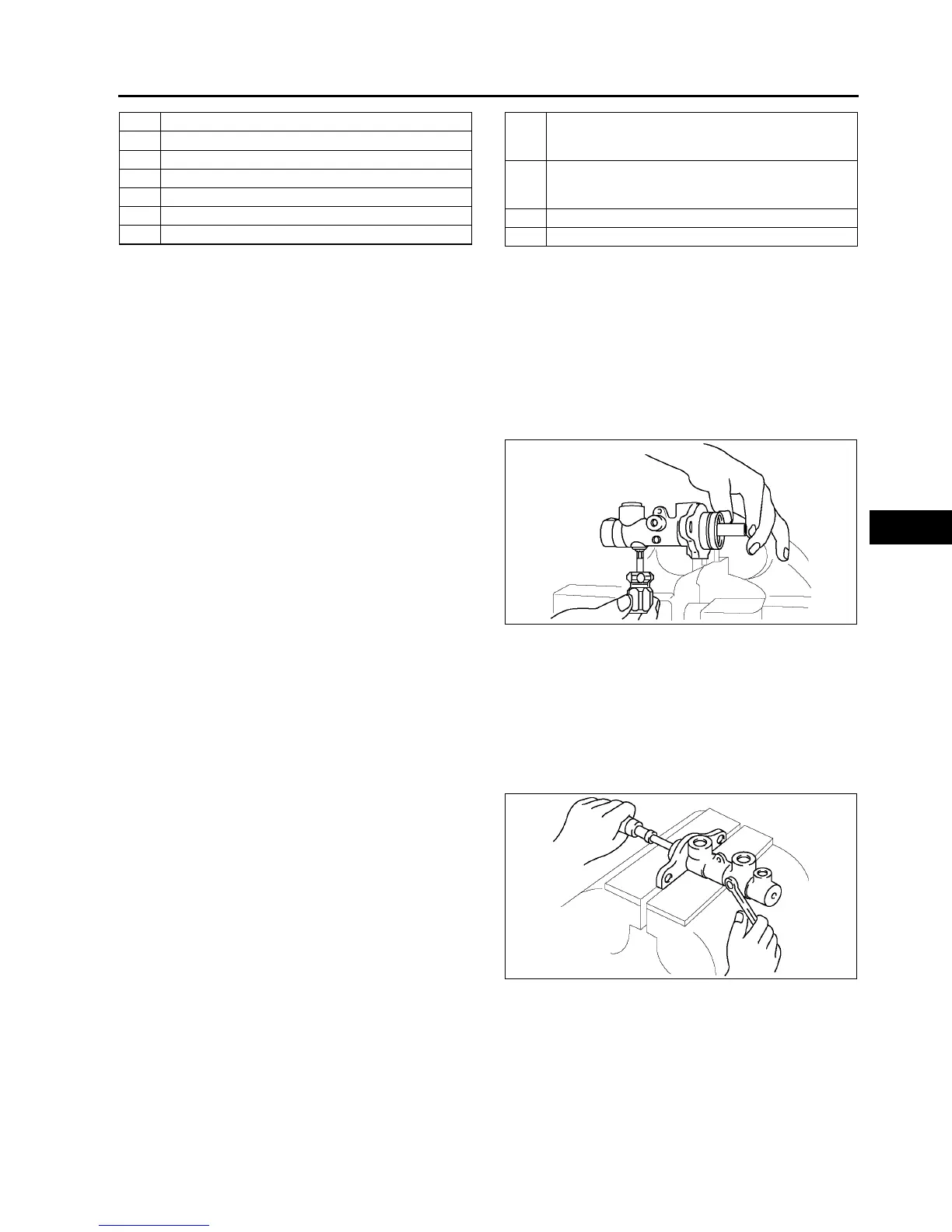

Stop Screw and O-ring (without ABS) Assembly Note
1. Install the secondary piston and primary piston.
2. Install the new O-ring onto the stop screw.
3. Push the primary piston assembly in full.
4. Install and tighten the stop screw.
Tightening torque
2.0—2.4 N·m {21—24 kgf·cm, 18—21 in·lbf}
5. Push and release the secondary piston
component to verify that it is held properly by the
stop screw.
Stop Pin and O-ring (with ABS) Assembly Note
1. Install the secondary piston with the piston hole facing the stop pin and primary piston.
2. Install the new O-ring onto the stop pin.
3. Push the primary piston assembly in full.
4. Install and tighten the stop pin.
Tightening torque
6.9—9.8 N·m {71—99 kgf·cm, 62—86 in·lbf}
5. Push and release the secondary piston
component to verify that it is held properly by the
stop pin.
End Of Sie
3 Reservoir
4 Joint bushing
5 Snap ring
6 Piston guide
7Cup
8 Stopper
9 Primary piston
10 Stop pin and O-ring (with ABS)
(See P–13 Stop Pin and O-ring (with ABS)
Assembly Note)
11 Stop screw and O-ring (without ABS)
(SeeP–13 Stop Screw and O-ring (without ABS)
Assembly Note)
12 Secondary piston
13 Master cylinder body
