ON-BOARD DIAGNOSTIC (ABS/TCS)
P–47
P
Active Command Modes Procedure
Note
• When driving, the ABS motor and each valve forcibly turn ABS_VOLT on, and then each command on.
ABS_VOLT regulates the power supply for the ABS motor and 8 valves.
1. Connect WDS or equivalent to the vehicle DLC-2
16-pin connector.
2. Turn the ignition switch to ON (Engine OFF) or
start engine.
3. Activate active command modes using WDS or
equivalent.
DTC Table

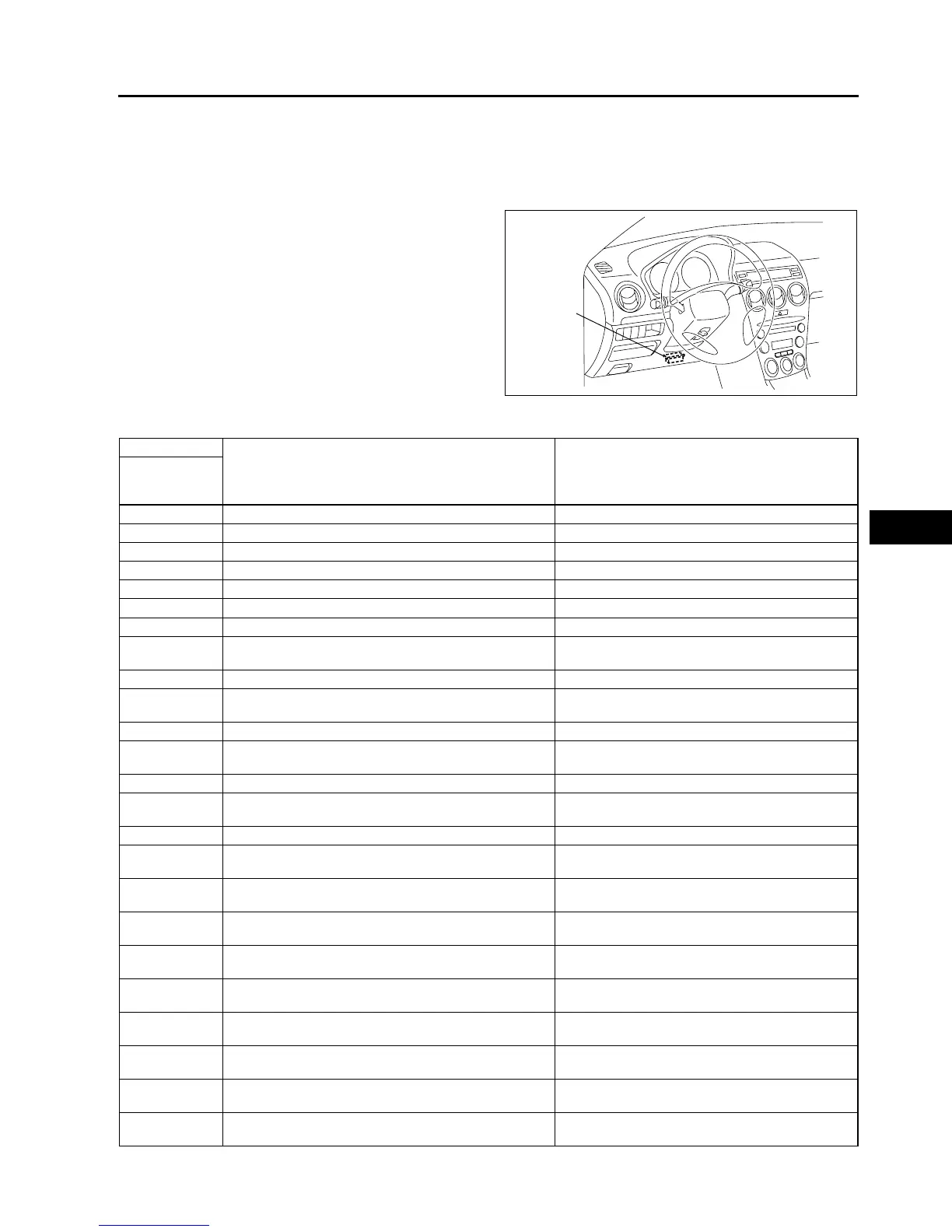

DLC-2
A6E3970W002
DTC
Diagnosis system component Page
WDS or
equiva-
lent
B1318 ABS (ABS/TCS) power supply (See P–50 DTC B1318)
B1342 ABS (ABS/TCS) HU/CM (See P–52 DTC B1342)
C1095 Motor relay, pump motor (See P–52 DTC C1095, C1096)
C1096 Motor relay, pump motor (See P–52 DTC C1095, C1096)
C1119 Engine control system (See P–54 DTC C1119)
C1140 ABS (ABS/TCS) HU/CM (pump) (See P–55 DTC C1140)
C1145 Right front wheel-speed sensor (See P–56 DTC C1145, C1155, C1165, C1175)
C1148 Right front wheel-speed sensor/sensor rotor (See P–59 DTC C1148, C1158, C1168, C1178,
C1233, C1234, C1235, C1236)
C1155 Left front wheel-speed sensor (See P–56 DTC C1145, C1155, C1165, C1175)
C1158 Left front wheel-speed sensor/sensor rotor (See P–59 DTC C1148, C1158, C1168, C1178,
C1233, C1234, C1235, C1236)
C1165 Right rear wheel-speed sensor (See P–56 DTC C1145, C1155, C1165, C1175)
C1168 Right rear wheel-speed sensor/sensor rotor (See P–59 DTC C1148, C1158, C1168, C1178,
C1233, C1234, C1235, C1236)
C1175 Left rear wheel-speed sensor (See P–56 DTC C1145, C1155, C1165, C1175)
C1178 Left rear wheel-speed sensor/sensor rotor (See P–59 DTC C1148, C1158, C1168, C1178,
C1233, C1234, C1235, C1236)
C1186 Fail-safe relay (See P–62 DTC C1186, C1266)
C1194 Left front pressure reduction solenoid valve (See P–63 DTC C1194, C1198, C1210, C1214,
C1242, C1246, C1250, C1254)
C1198 Left front pressure retention solenoid valve (See P–63 DTC C1194, C1198, C1210, C1214,
C1242, C1246, C1250, C1254)
C1210 Right front pressure reduction solenoid valve (See P–63 DTC C1194, C1198, C1210, C1214,
C1242, C1246, C1250, C1254)
C1214 Right front pressure retention solenoid valve (See P–63 DTC C1194, C1198, C1210, C1214,
C1242, C1246, C1250, C1254)
C1233 Left front wheel-speed sensor/sensor rotor (See P–59 DTC C1148, C1158, C1168, C1178,
C1233, C1234, C1235, C1236)
C1234 Right front wheel-speed sensor/sensor rotor (See P–59 DTC C1148, C1158, C1168, C1178,
C1233, C1234, C1235, C1236)
C1235 Right rear wheel-speed sensor/sensor rotor (See P–59 DTC C1148, C1158, C1168, C1178,
C1233, C1234, C1235, C1236)
C1236 Left rear wheel-speed sensor/sensor rotor (See P–59 DTC C1148, C1158, C1168, C1178,
C1233, C1234, C1235, C1236)
C1242 Left rear pressure reduction solenoid valve (See P–63 DTC C1194, C1198, C1210, C1214,
C1242, C1246, C1250, C1254)
