B–22
FRONT OIL SEAL

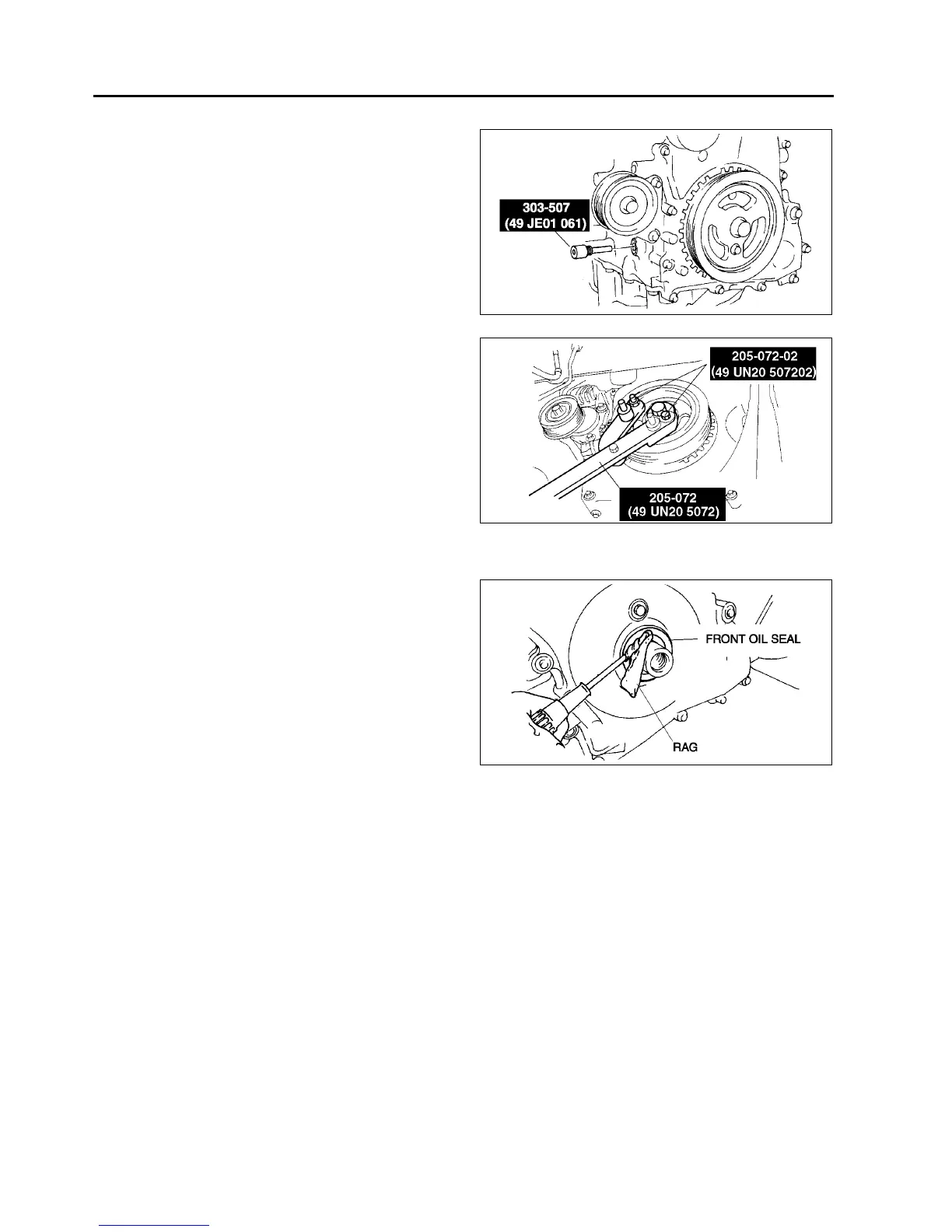

Crankshaft Pulley Lock Bolt Removal Note
1. Remove the cylinder block lower blind plug.
2. Install the SST.
3. Turn the crankshaft clockwise the crankshaft is in
the No.1 cylinder TDC position.
4. Hold the crankshaft pulley by using the SSTs.
Front Oil Seal Removal Note
1. Cut the oil seal lip using a razor knife.
2. Remove the oil seal using a screwdriver protected
with a rag.
AME2212W004
AME2215W002
AME2220W002
To Next Page
