P–86
ON-BOARD DIAGNOSTIC (DYNAMIC STABILITY CONTROL)
End Of Sie
DTC C1186, C1266
A6E697367650W14
Caution
• When attaching the tester lead to the DSC HU/CM connector the SST (49 G066 004) must be used.
8 INSPECT DSC HU/CM OPERATION
• Perform DSC HU/CM system inspection.
• See P–35 DSC SYSTEM INSPECTION
• Is it okay?
Yes Go to next step.
No Replace DSC HU/CM, then go to next step.
9 VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected
connectors.
• Clear DTC from memory.
(See P–46 Clearing DTCs Procedures)
• Start engine and drive vehicle at 10 km/h
{6.2 mph} or above.
• Gradually slow down vehicle and stop.
• Is same DTC present?
Yes Replace DSC HU/CM, then go to next step.
No Go to next step.
10 VERIFY AFTER REPAIR PROCEDURE
• Is there any other DTC present?
Yes Go to applicable DTC inspection.
No Troubleshooting completed.
STEP INSPECTION ACTION

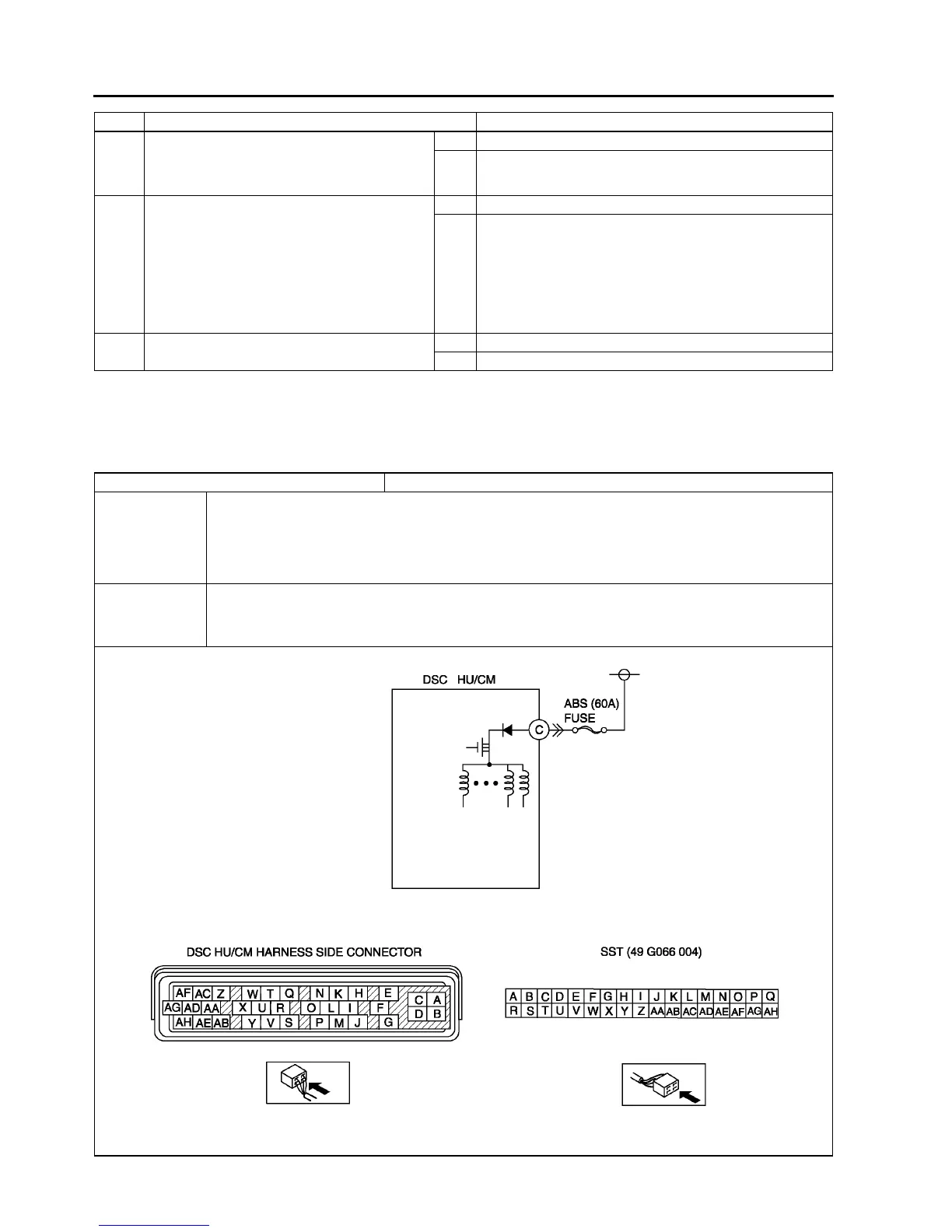

DTC C1186, C1266 Fail-safe relay
DETECTION
CONDITION
• C1186:
— Fail-safe relay in DSC HU/CM stuck OFF when ignition switch is turned ON, fail-safe relay ON is
commanded.
• C1266:
— Fail-safe relay in DSC HU/CM stuck ON when ignition switch is turned ON, fail-safe relay OFF is
commanded.
POSSIBLE
CAUSE
• Malfunction of fuse (ABS 60 A)
• Open circuit in harness between DSC HU/CM terminal C and battery positive terminal
• Open or short of fail-safe relay in DSC HU/CM
• Stuck fail-safe relay in DSC HU/CM
To Next Page
