FRONT SUSPENSION
R–17
R

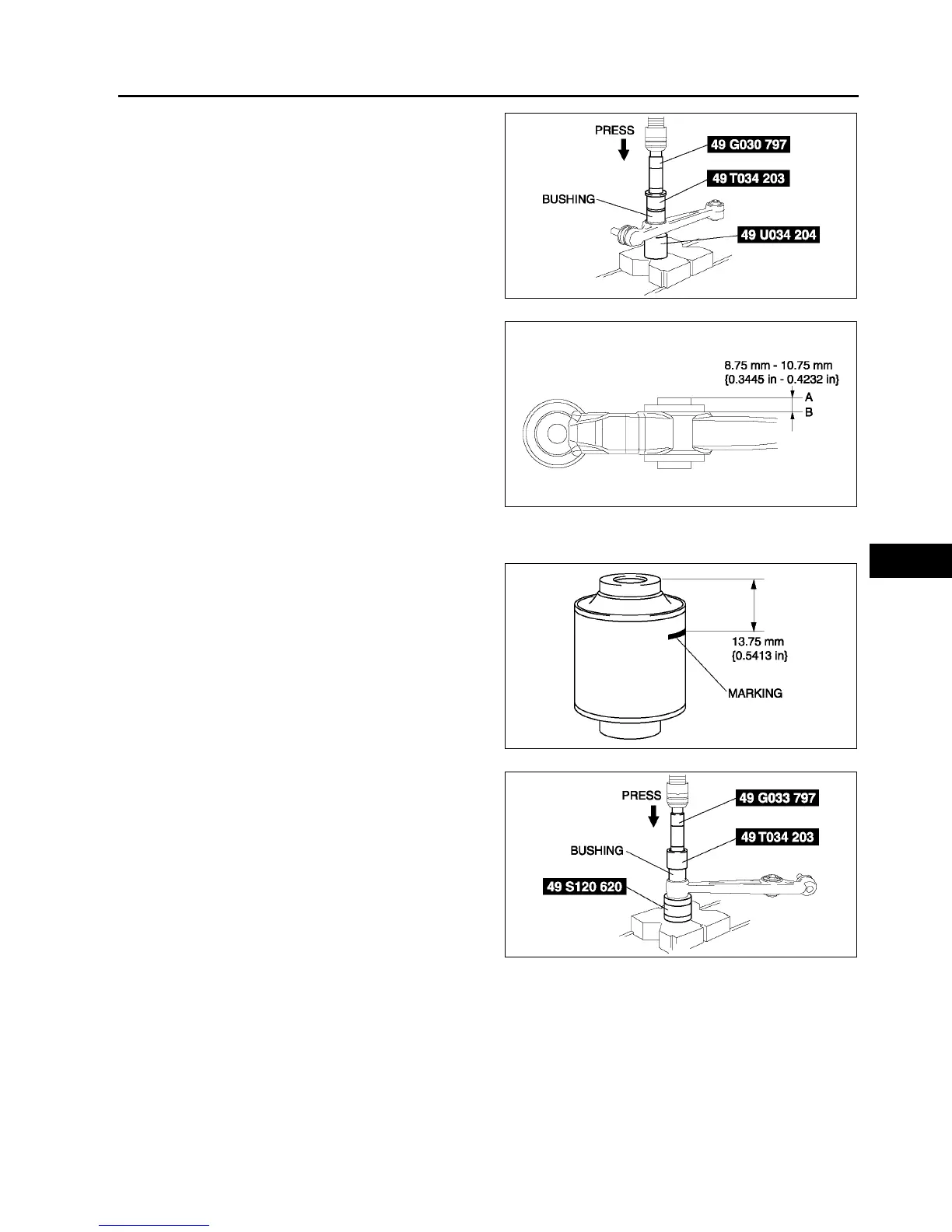

2. Press the bushing in to the marking using the
SSTs.
3. Verify that clearance distance A—B is 8.75 mm—
10.75 mm {0.3445 in—0.4232 in}.
Front Lower Arm (Front) Bushing (Inner Side) Installation Note
1. Mark the new bushing as shown in the figure.
2. Press the bushing in to the marking using the
SSTs.
A6E7414W012
A6E7414W003
A6E7414W013
A6E7414W002
To Next Page
