R–20
FRONT SUSPENSION

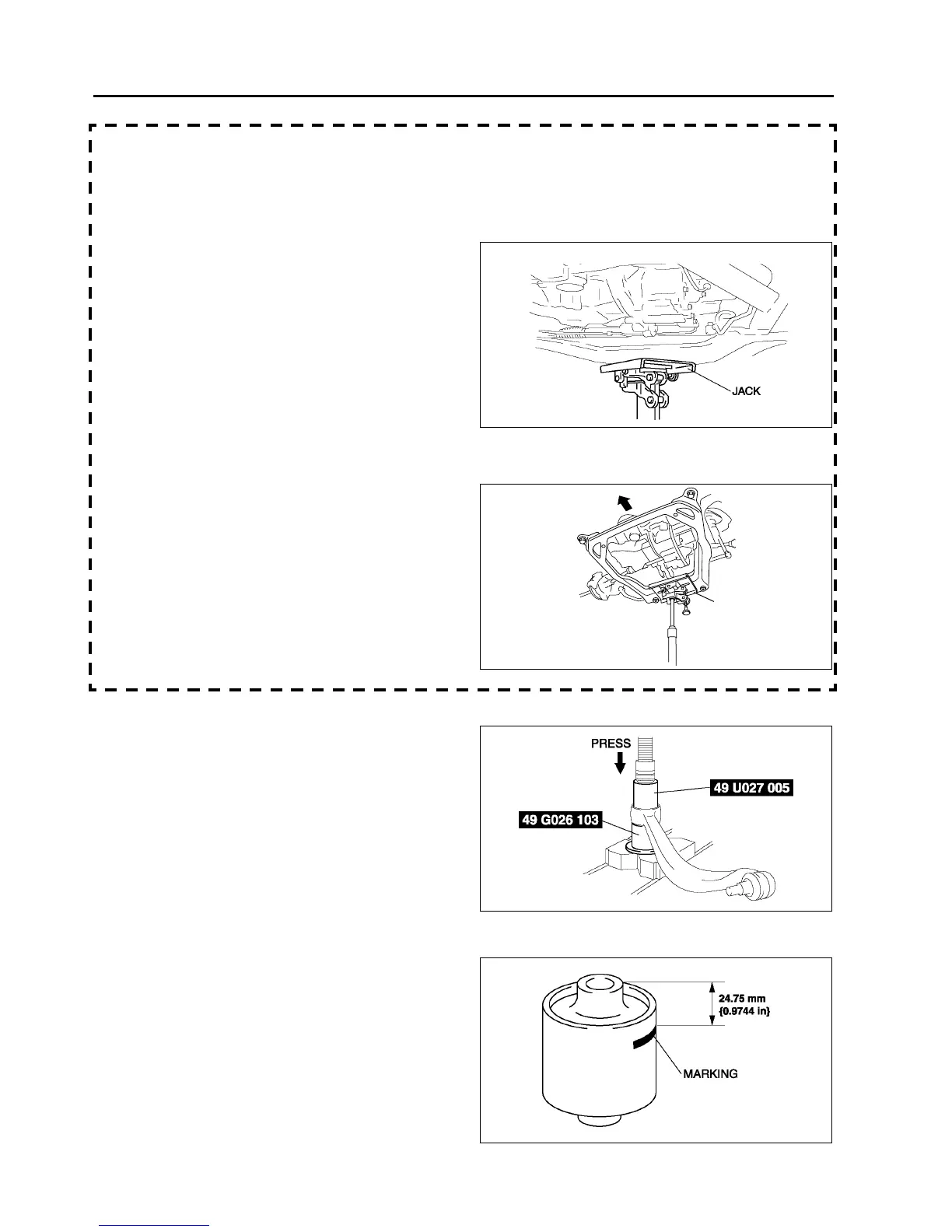

Crossmember Bracket Removal Note
Warning
• Removing the crossmember is dangerous. The crossmember component could fall and cause
serious injury or death. Verify that the jack securely supports the crossmember component before
removing the crossmember bracket.
1. Support the crossmember component with a jack
and remove the nuts.
2. Remove the crossmember bracket.
Front Lower Arm (Rear) Removal Note
1. Support the front crossmember with a jack.
2. Loosen the front crossmember installation bolts
(front side).
3. Remove the front crossmember installation bolts
(rear side).
4. Remove the front lower arm (rear) bolt, while
lowering the front crossmember slowly.
5. Remove the front lower arm (rear).
Front Lower Arm (Rear) Bushing Removal Note
1. Press the bushing out using the SSTs.
2. Remove the front lower arm (rear) from the press
and tap the bushing out with a hammer.
Front Lower Arm (Rear) Bushing Installation Note
1. Mark the new bushing as shown in the figure.
A6E7414W036
B6U0213W012
FRONT
JACK
A6E7414W014
A6E7414W026
To Next Page
