R–32
REAR SUSPENSION

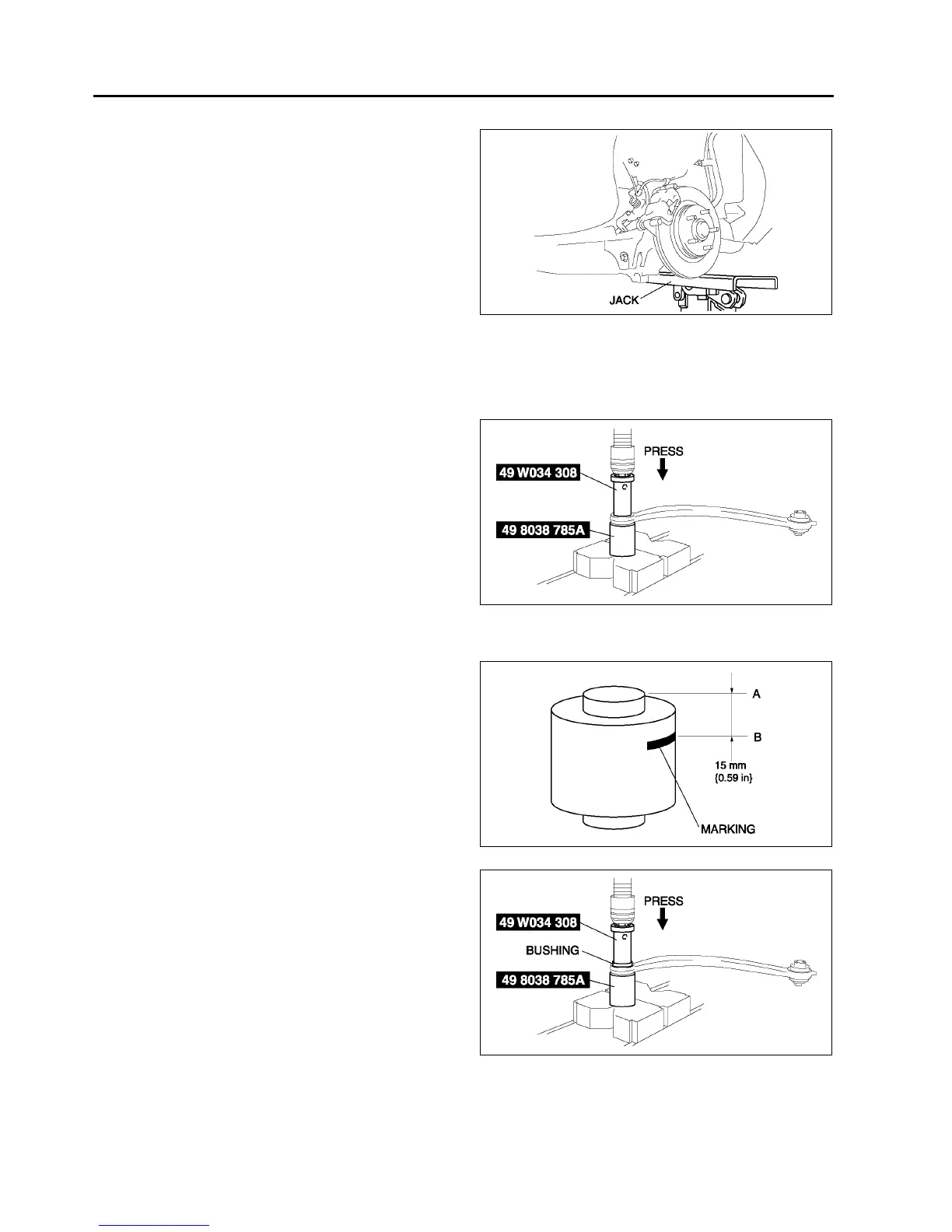

Bolt (Rear Shock Absorber Lower Side) Removal Note
1. Support the trailing link with a jack.
Bolt (Rear Upper Arm) Removal Note
1. Loosen the bolts on the inner and outer side of the lateral link.
Rear Upper Arm Bushing Removal Note
1. Press the upper arm bushing out using the SSTs.
Rear Upper Arm Bushing Installation Note
1. Mark the new bushing as shown in the figure.
2. Press the bushing in to the marking using the
SSTs.
A6E7416W005
A6E7416W010
A6E7416W011
A6E7416W012
