Mazda 2002 6 - Page 831

S–72
WINDOW GLASS

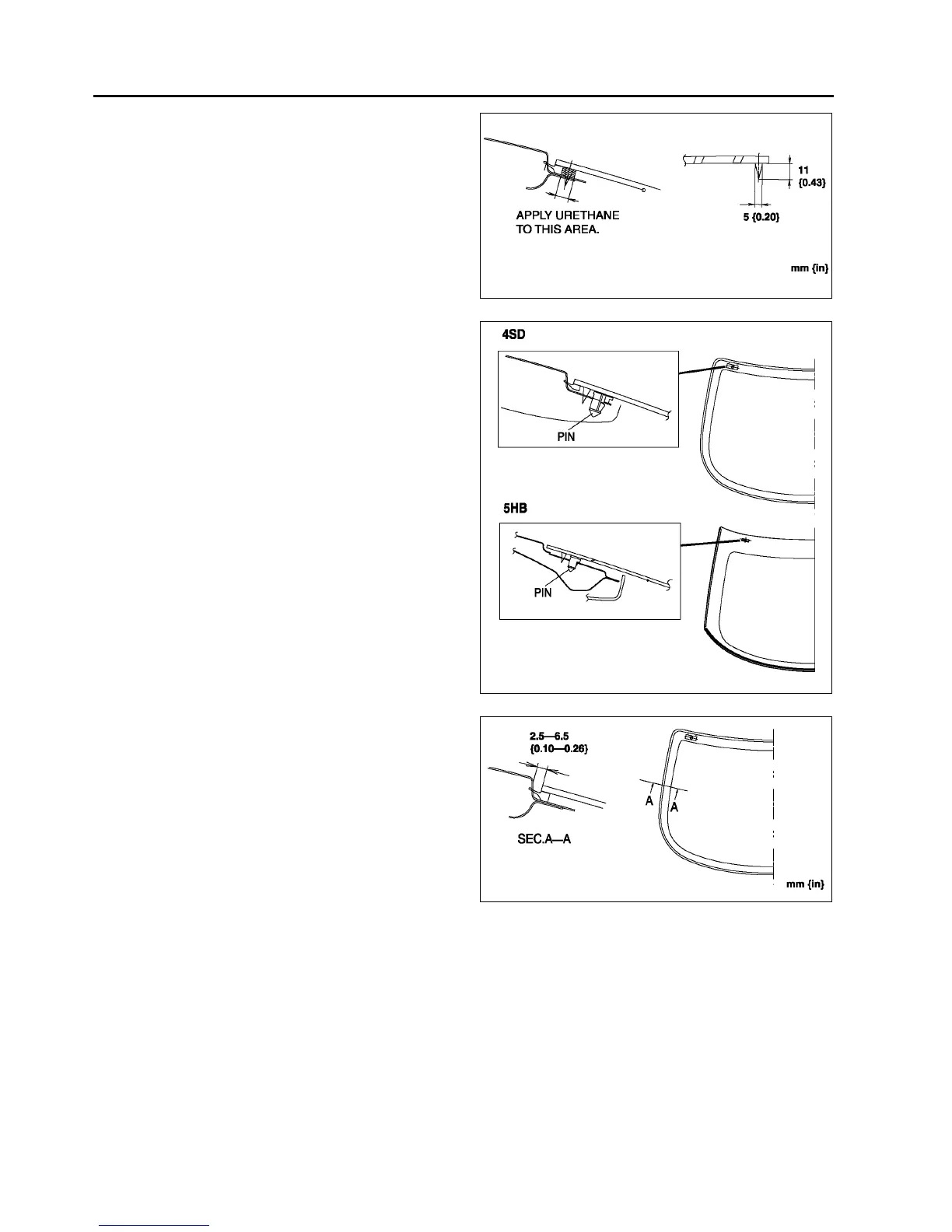

6. Apply urethane to the area of the glass surface as
shown in the figure.
7. Set the position of the front windshield glass and
insert a pin into the body. Install the glass.
8. Verify that the gap of the upper part is 7.3 mm
{0.29 in} and the A pillar part is 6.8 mm {0.27 in}.
(Only for 4SD)
A6E7738W020
A6E7738W018
A6E7738W016
