S–108
SEAT
Passenger's Seat
Warning
• Do not disassemble the seat cushion. Doing so will necessitate reassembly which may damage or
press the occupancy sensor. This will cause the misoperation of the air bag system, which may
seriously injure you.
.
A6E7752W003

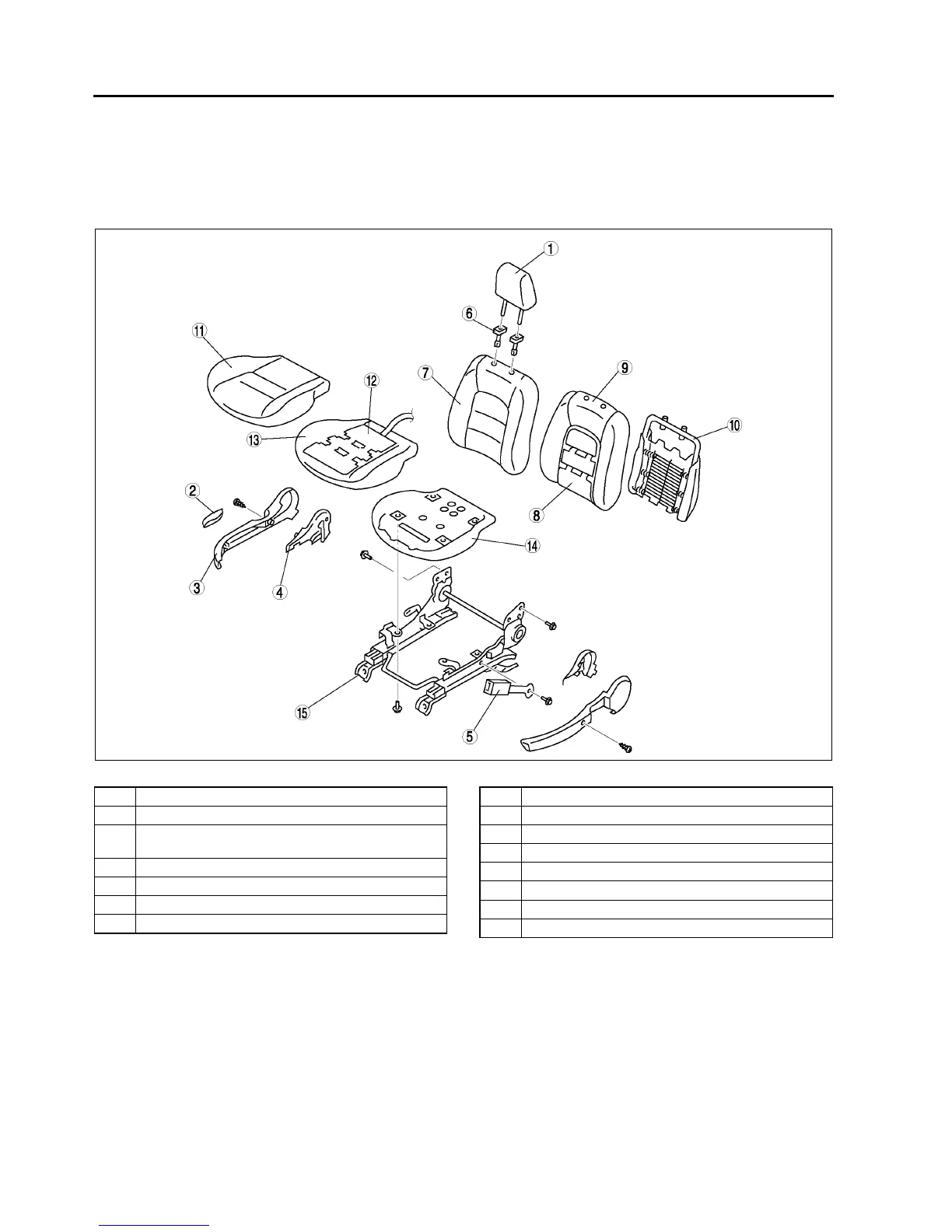

1 Headrest
2 Recliner lever
3Side cover
(See S–109 Side cover disassembly note.)
4 Reverse cover
5Front buckle
6 Pole guide
7 Seat back trim
8 Seat warmer unit (European (L.H.D.) specs. only)
9 Seat back pad
10 Seat back frame
11 Seat cushion trim
12 Seat warmer unit (European (L.H.D.) specs. only)
13 Seat cushion pad
14 Seat cushion frame
15 Slide adjuster
