INTERIOR LIGHTING SYSTEM
A6E810001052W02
.
A6E8114W130

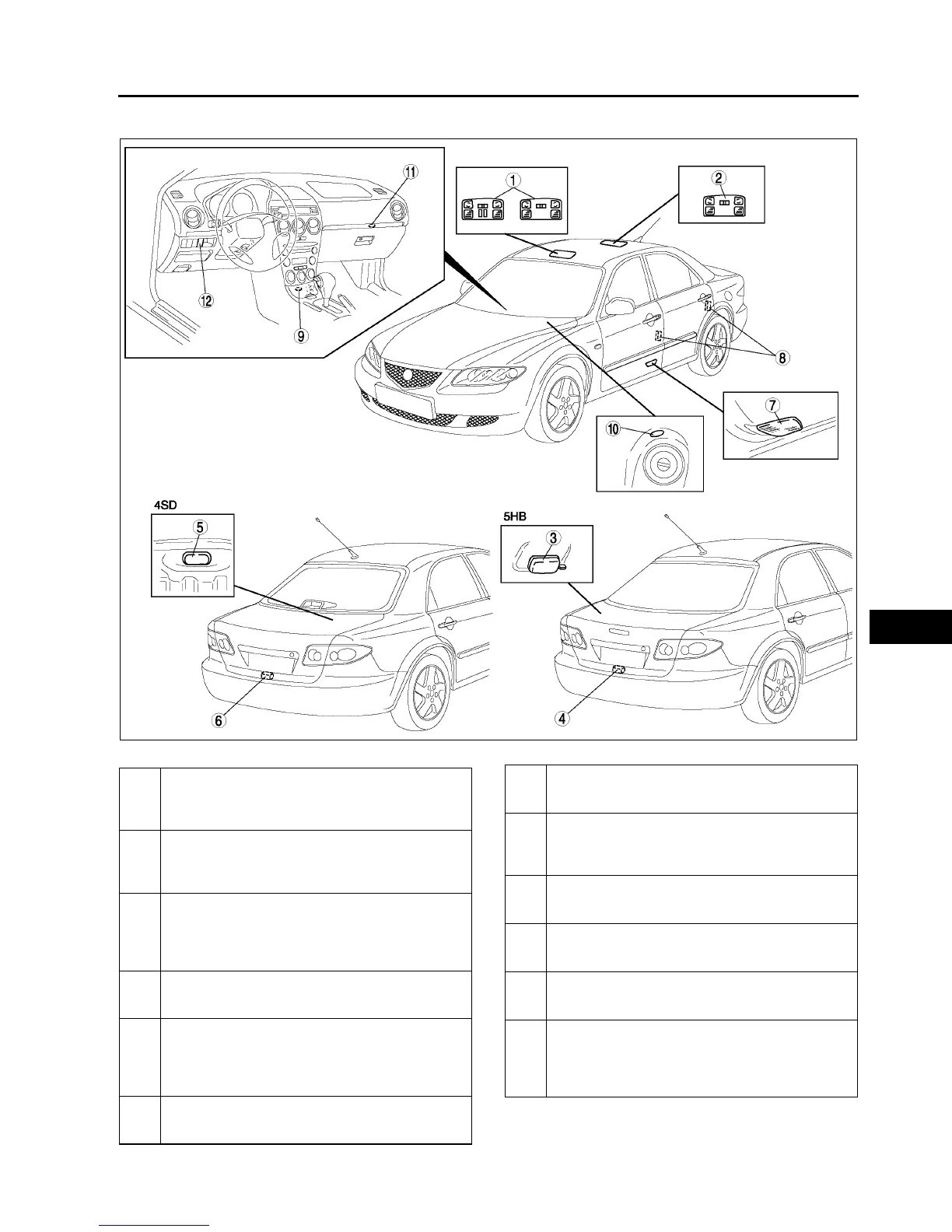

1 Front map light
(See T–48 FRONT MAP LIGHT REMOVAL/
INSTALLATION)
(See T–48 FRONT MAP LIGHT INSPECTION)
2 Rear map light
(See T–49 REAR MAP LIGHT REMOVAL/
INSTALLATION)
(See T–49 REAR MAP LIGHT INSPECTION)
3 Cargo compartment light
(See T–50 CARGO COMPARTMENT LIGHT
REMOVAL/INSTALLATION)
(See T–50 CARGO COMPARTMENT LIGHT
INSPECTION)
4 Cargo compartment light switch
(See T–50 CARGO COMPARTMENT LIGHT
SWITCH INSPECTION)
5 Trunk compartment light
(See T–51 TRUNK COMPARTMENT LIGHT BULB
REMOVAL/INSTALLATION)
(See T–51 TRUNK COMPARTMENT LIGHT
SWITCH INSPECTION)
6 Trunk compartment light switch
(See T–51 TRUNK COMPARTMENT LIGHT
SWITCH INSPECTION)
7 Courtesy light
(See T–51 COURTESY LIGHT BULB REMOVAL/
INSTALLATION)
8 Door switch
(See T–52 DOOR SWITCH REMOVAL/
INSTALLATION)
(See T–52 DOOR SWITCH INSPECTION)
9 Ashtray illumination
(See T–52 ASHTRAY ILLUMINATION BULB
REMOVAL/INSTALLATION)
10 Ignition key illumination
(See T–53 IGNITION KEY ILLUMINATION BULB
REMOVAL/INSTALLATION)
11 Grove compartment light
(See T–53 GLOVE COMPARTMENT LIGHT BULB
REMOVAL/INSTALLATION)
12 Panel light control switch
(See T–53 PANEL LIGHT CONTROL SWITCH
REMOVAL/INSTALLATION)
(See T–54 PANEL LIGHT CONTROL SWITCH
INSPECTION)
