WIPER AND WASHER
T–65
T
REAR WASHER HOSE REMOVAL/INSTALLATION
A6E811667470W01

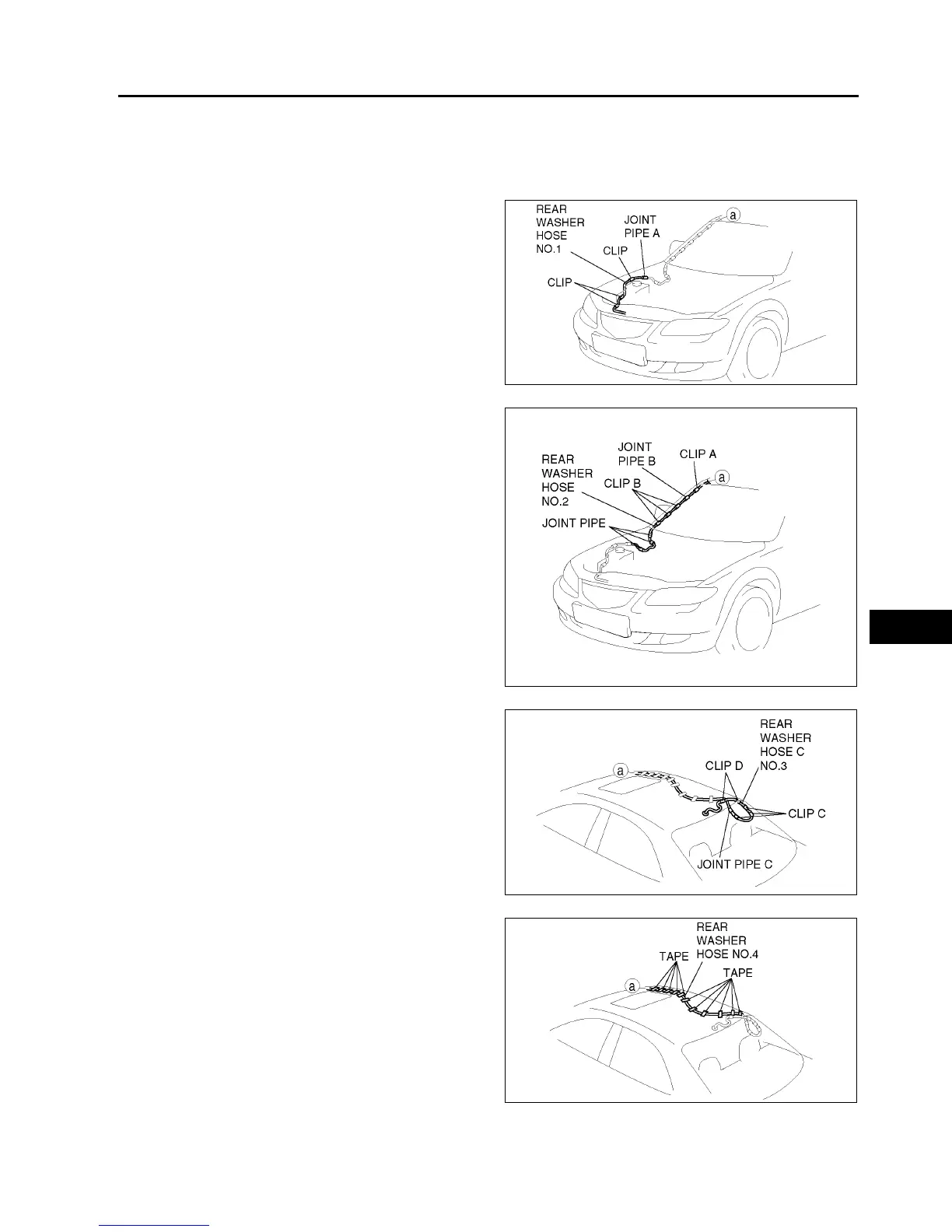

1. Disconnect the negative battery cable.
2. Remove the washer tank. (See T–58 WASHER TANK REMOVAL/INSTALLATION)
3. Partially peel off the right side mud guard.
4. Remove rear washer hose No.1 from the clips.
5. Remove rear washer hose No.1 and joint pipe A.
6. Remove the A-pillar trim. (See S–87 A-PILLAR
TRIM REMOVAL)
7. Remove rear washer hose No.2 from clip A.
8. Remove clips B from the body.
9. Remove rear washer hose No.2 and joint pipes B.
10. Remove the C-pillar trim. (See S–89 C-PILLAR
TRIM REMOVAL/INSTALLATION)
11. Remove the liftgate upper trim. (See S–94
LIFTGATE UPPER TRIM REMOVAL/
INSTALLATION)
12. Remove rear washer hose No.3 from clip C.
13. Remove clips D from the body.
14. Remove rear washer hose No.3 and joint pipe C.
15. Remove the headliner. (See S–96 HEADLINER
REMOVAL/INSTALLATION)
16. Remove the tape from rear washer hose No.4.
17. Install in the reverse order of removal.
End Of Sie
