WARNING AND INDICATOR SYSTEM
T–83
T
End Of Sie

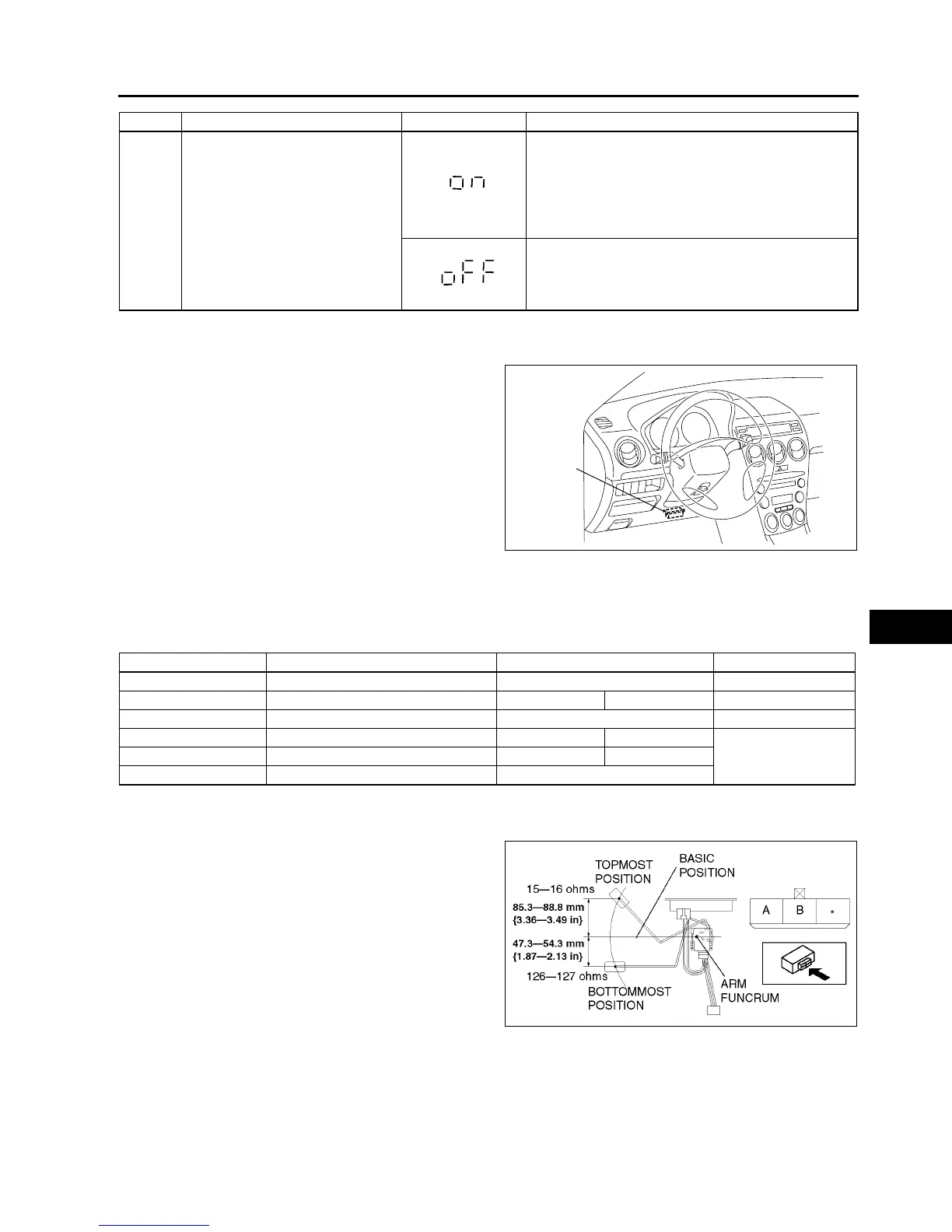

PID/DATA MONITOR AND RECORD PROCEDURE
A6E811855430W07
1. Connect SST (WDS or equivalent) to the vehicle
DLC-2 16-pin connector.
2. Access and monitor PIDs using SST (WDS or
equivalent).
Monitor Item Table
• The PID/DATA monitoring items for the instrument cluster is as shown in the table below.
—: Not applicable
End Of Sie
FUEL GAUGE SENDER UNIT INSPECTION
A6E811860960W01
1. Move the float to the topmost and bottommost
positions, and verify that the resistance between
terminals A and B of the unit and the position of
the float are as indicated in the figure.
• If they are not as indicated, replace the fuel
gauge sender unit.
End Of Sie
2 Remove key from steering lock (Key
reminder switch off.)
Measure voltage at instrument cluster terminal 2B.
Is voltage 0 V?
• If as specified, replace instrument cluster.
• If not as specified, inspect following parts.
— Key reminder switch
— Wiring harness (Key reminder switch—
instrument cluster)
Input signal to instrument cluster is okay.
STEP INSPECTION INDICATION ACTION
DLC-2
A6E3970W002
PID item Definition Unit/Condition Terminal
CCNT_HE Continuous codes Number of continuous codes —
ECT_GAUGE Temperature gauge °C °F2W, 2X
FUEL Fuel flow l/min 2M
ODOMETR Total distance km mile
2W, 2XSPEEDSG Speedometer km/h mile/h
RPM Tachometer rpm
A6E8118W002
To Next Page
