Mitsubishi Electric MELSEC iQ-R Series - Converting 16-Bit Binary Gray Code Data to 16-Bit Binary Data

430

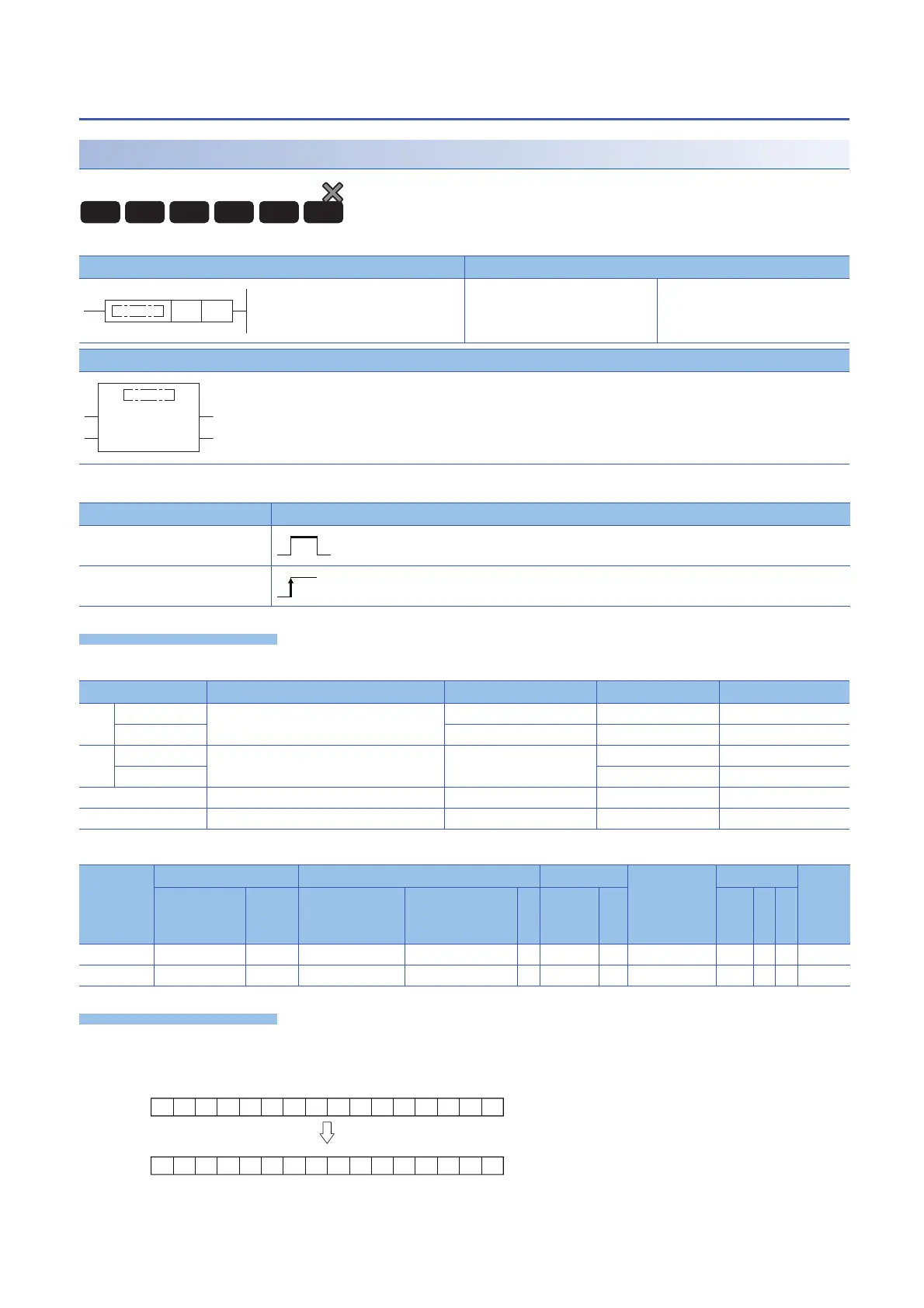

6 BASIC INSTRUCTIONS
6.6 Data Conversion Instructions
Converting 16-bit binary Gray code data to 16-bit binary data
GBIN(P)(_U)
These instructions convert the specified 16-bit binary Gray code data to 16-bit binary data.
■Execution condition
Setting data
■Description, range, data type
■Applicable devices
Processing details
• These instructions convert the 16-bit binary Gray code data in the device specified by (s) to 16-bit binary data, and store the
converted data in the device specified by (d).
Ladder ST
ENO:=GBIN(EN,s,d);
ENO:=GBINP(EN,s,d);
ENO:=GBIN_U(EN,s,d);
ENO:=GBINP_U(EN,s,d);
FBD/LD
Instruction Execution condition
GBIN
GBIN_U
GBINP
GBINP_U
Operand Description Range Data type Data type (label)
(s) GBIN(P) Gray code data or the device where the Gray
code data is stored
0 to 32767 16-bit signed binary ANY16_S
GBIN(P)_U 0 to 65535 16-bit unsigned binary ANY16_U
(d) GBIN(P) Device for storing the converted binary data  16-bit signed binary ANY16_S
GBIN(P)_U 16-bit unsigned binary ANY16_U
EN Execution condition  Bit BOOL
ENO Execution result  Bit BOOL
Operand Bit Word Double word Indirect
specification
Constant Others
X, Y, M, L,
SM, F, B, SB,
FX, FY
J\ T, ST, C, D, W,
SD, SW, FD, R,
ZR, RD
U\G, J\,
U3E\(H)G
Z LT, LST,
LC
LZ K, H E $
(s)         
(d)         
RnCPU
RnENCPU
RnSFCPU RnSFCPURnPCPURnPCPU
(Standard) (Safety)
(Redundant) (Process)
(s) (d)
EN ENO
ds
(d) BIN
(s)
00000
00000 00 0 00 0
00 0
1111
11 11
111
1
1
1234
1234
b15
b15
b0
b0


