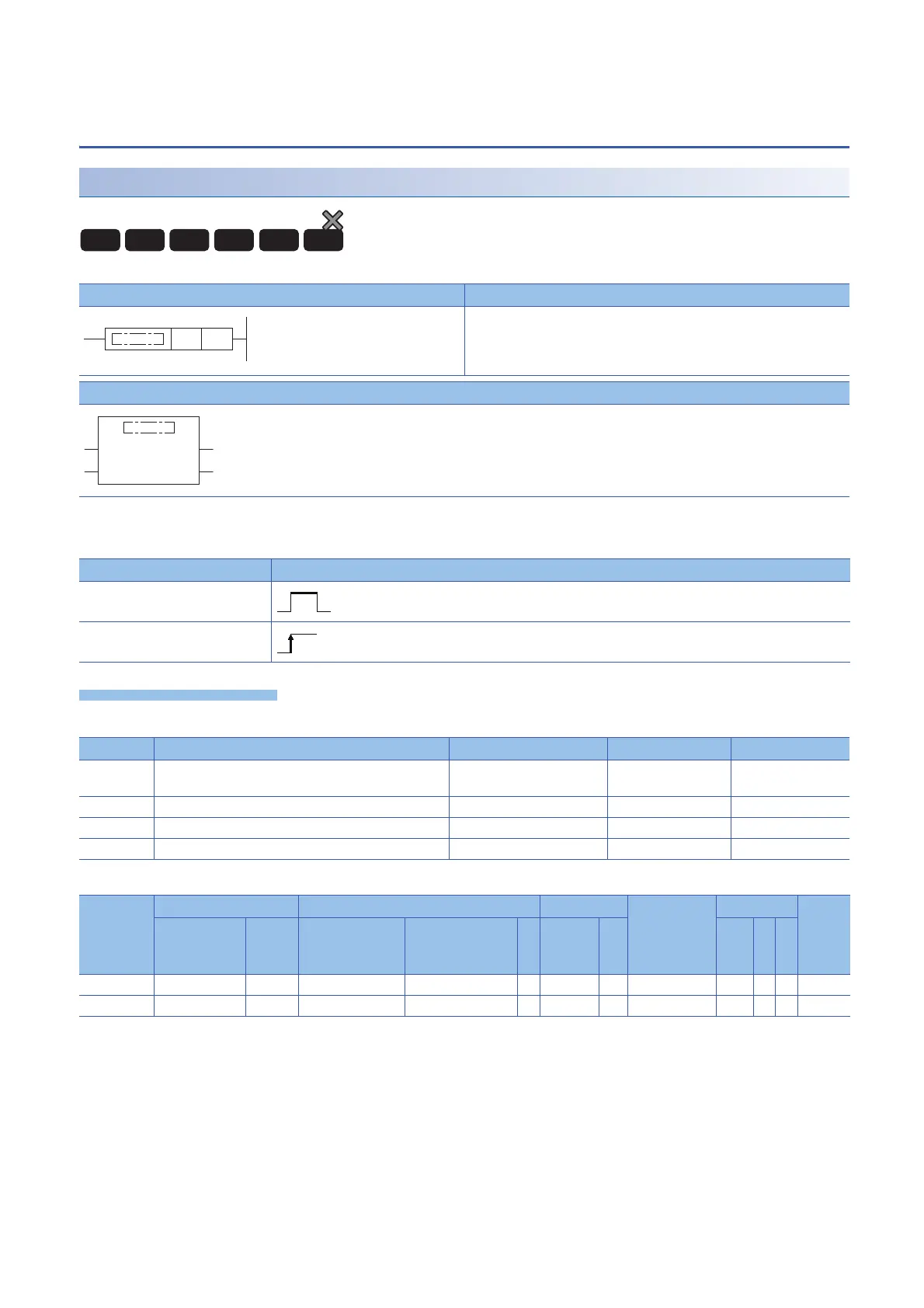

Mitsubishi Electric MELSEC iQ-R Series - Converting Double-Precision Real Number to 16-Bit Signed Binary Data

394
6 BASIC INSTRUCTIONS
6.6 Data Conversion Instructions
Converting double-precision real number to 16-bit signed binary
data
DBL2INT(P)
These instructions convert the specified double-precision real number to 16-bit signed binary data.
*1 The engineering tool with version "1.035M" or later supports the ST.
■Execution condition
Setting data
■Description, range, data type
■Applicable devices
Ladder ST
*1
ENO:=DBL2INT(EN,s,d);
ENO:=DBL2INTP(EN,s,d);
FBD/LD
Instruction Execution condition
DBL2INT
DBL2INTP
Operand Description Range Data type Data type (label)
(s) Double-precision real number or the start device where the
double-precision real number is stored
-32768 to 32767 Double-precision real
number
ANYREAL_64
(d) Device for storing the converted binary data  16-bit signed binary ANY16_S
EN Execution condition  Bit BOOL
ENO Execution result  Bit BOOL
Operand Bit Word Double word Indirect
specification
Constant Others
X, Y, M, L,
SM, F, B, SB,
FX, FY
J\ T, ST, C, D, W,
SD, SW, FD, R,
ZR, RD
U\G, J\,
U3E\(H)G
Z LT, LST,
LC
LZ K, H E $
(s)   
(d)         
RnCPU
RnENCPU
RnSFCPU RnSFCPURnPCPURnPCPU
(Standard) (Safety)
(Redundant) (Process)
(s) (d)
EN ENO
ds
