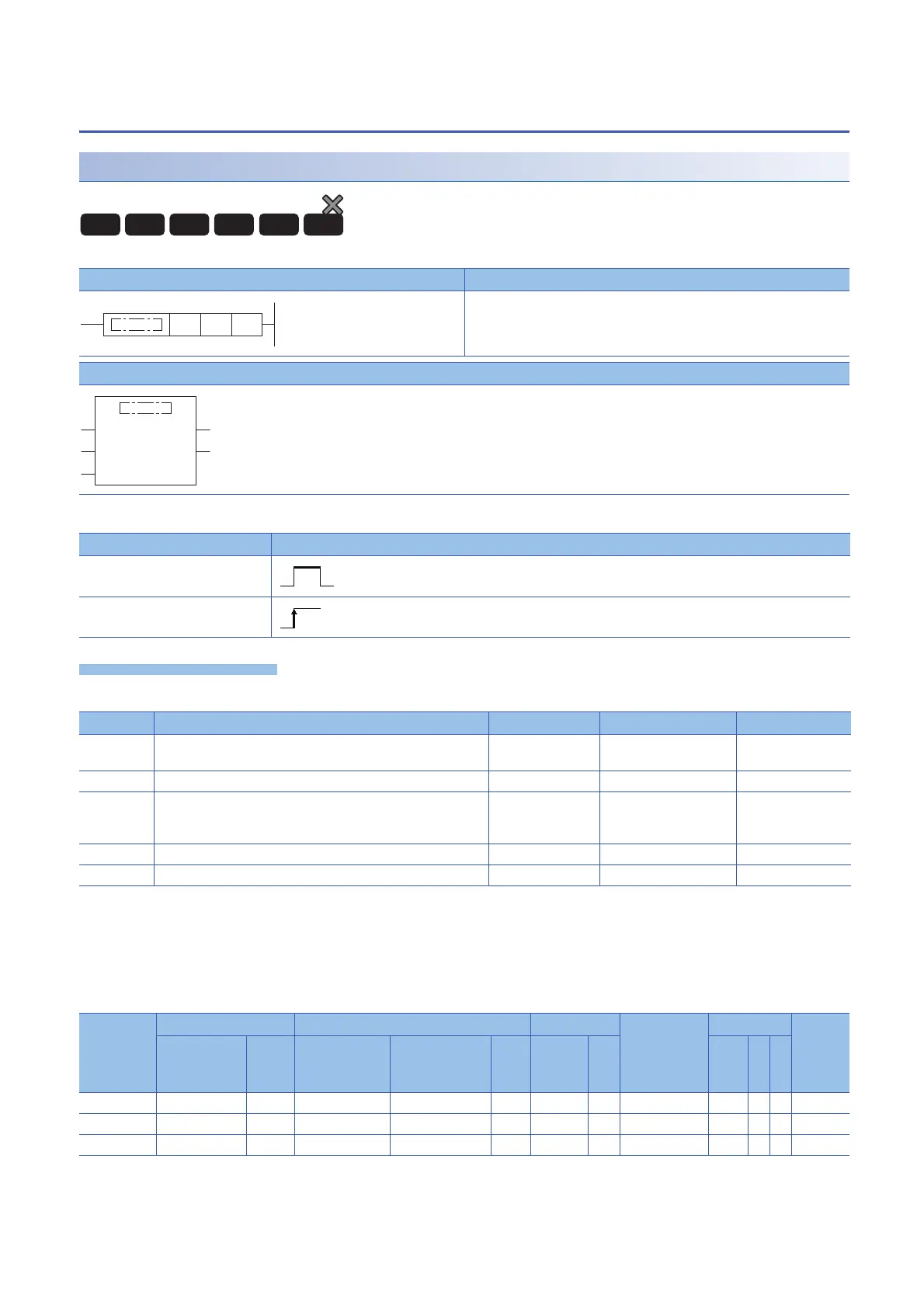

21 A/D CONVERSION INSTRUCTIONS
21.3 Restoring the User Range Setting Values
21.3 Restoring the User Range Setting Values
G(P).OGSTOR
These instructions restore the offset/gain settings in the user range setting stored in a CPU module into an analog module.
■Execution condition
■Description, range, data type
*1 Specify the device that is specified in (s) when the G(P).OGLOAD instruction is to be executed. The data read with the G(P).OGLOAD
instruction must be not be changed. Otherwise, normal operation cannot be guaranteed.
*2 When specifying setting data by using a label, define an array to secure enough operation area and specify an element of the array
label.
*3 When specifying setting data by using a label, use an array with two or more elements.
■Applicable devices
*1 FD cannot be used.
*2 FX and FY cannot be used.
*3 T, ST, C, and FD cannot be used.
Ladder ST
ENO:=G_OGSTOR(EN,U,s,d);
ENO:=GP_OGSTOR(EN,U,s,d);
FBD/LD
Instruction Execution condition
G.OGSTOR
GP.OGSTOR
Operand Description Range Data type Data type (label)
(U) Start I/O number (first three digits in four-digit hexadecimal
representation) of a module
0000H to 00FEH • 16-bit unsigned binary
• 16-bit signed binary
ANY16
(s)
*1
Start device where the control data is stored Predefined devices Device name ANY16
*2
(d) Device to be turned on one scan when instruction processing
completes.
If the instruction is completed with an error, (d)+1 is also turned on.
Predefined devices Bit ANYBIT_ARRAY
*3
(Number of
elements: 2)
EN Execution condition Bit BOOL
ENO Execution result Bit BOOL
Operand Bit Word Double word Indirect
specification
Constant Others
(U)
X, Y, M, L,
SM, F, B, SB,
FX, FY
J\ T, ST, C, D, W,
SD, SW, FD,
R, ZR, RD
U\G, J\,
U3E\(H)G
Z LT, LST,
LC
LZ K, H E $
(U)
(s)
*1
(d)
*2
*3
RnCPU
RnENCPU
RnSFCPU RnSFCPURnPCPURnPCPU
(Standard) (Safety)
(Redundant)
(Process)
