Mitsubishi Electric MELSEC iQ-R Series - Concatenating String Data

32 STRING FUNCTIONS
32.4 Concatenating String Data
1951
32

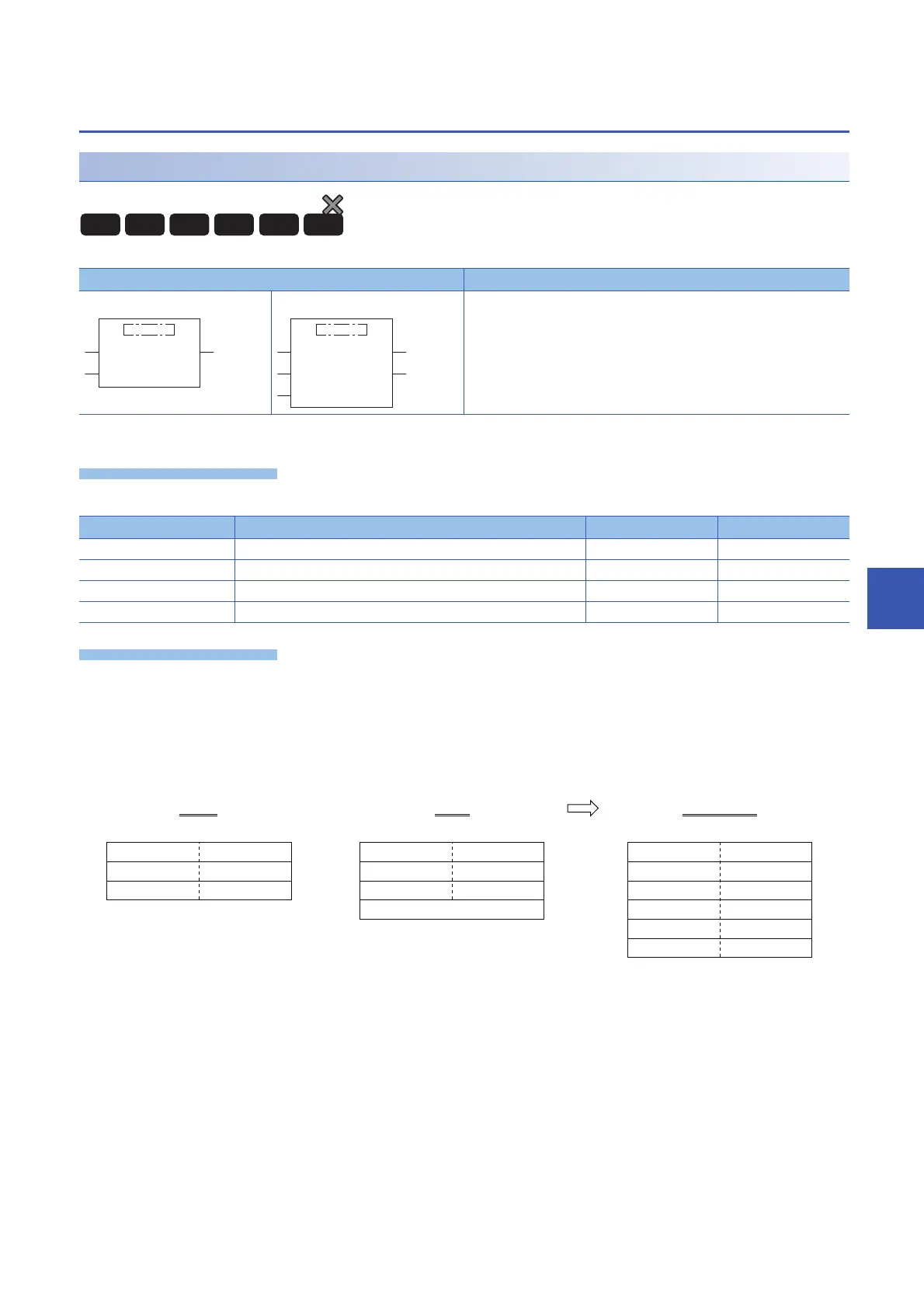

32.4 Concatenating String Data
CONCAT(_E)
These functions concatenate character strings, and output the operation result.
*1 The input variable s can be changed within the range from 2 to 28.
Setting data
■Description, type, data type
Processing details
■Operation processing
• These functions concatenate the strings input to (s2) to (s28) to the end of the string input to (s1), and output the operation
result from (d).
• The (s2) to (s28) strings are concatenated successively, ignoring 00H, which indicates the end of the (s1) string.
• If the string after concatenation exceeds 255 bytes, the substring up to the 255th byte will be output.
• Input a STRING data type value to (s1) and (s2) to (s28) within the range of 0 to 255 bytes.
Ladder, FBD/LD
*1
Structured text
*1
[Without EN/ENO] [With EN/ENO] [Without EN/ENO]
d:=CONCAT(s1,s2);
[With EN/ENO]
d:=CONCAT_E(EN,ENO,s1,s2);
Argument Description Type Data type
EN Execution condition (TRUE: Executed, FALSE: Not executed) Input variable BOOL
s1 (IN1) to s28 (IN28) Input Input variable ANYSTRING_SINGLE
ENO Output status (TRUE: Normal, FALSE: Abnormal) Output variable BOOL
d Output Output variable ANYSTRING_SINGLE
RnCPU
RnENCPU
RnSFCPU RnSFCPURnPCPURnPCPU
(Standard) (Safety)
(Redundant) (Process)
s1 d
s2
EN ENO
ds1
s2
(s1)
(s2)
(d)
+
ABCDE123456ABCDE
45H(E)00H
43H(C)44H(D)
41H(A)42H(B)
36H(6)00H
34H(4)35H(5)
32H(2)33H(3)
45H(E)31H(1)
43H(C)44H(D)
41H(A)42H(B)
123456
35H(5)
00H
36H(6)
33H(3)34H(4)
31H(1)32H(2)+0
+2
+1
+0
+3
+2
+1
+0
+5
+4
+3
+2
+1
Lower byteUpper byteLower byteUpper byte Lower byteUpper byte
