6 BASIC INSTRUCTIONS

6.6 Data Conversion Instructions

481

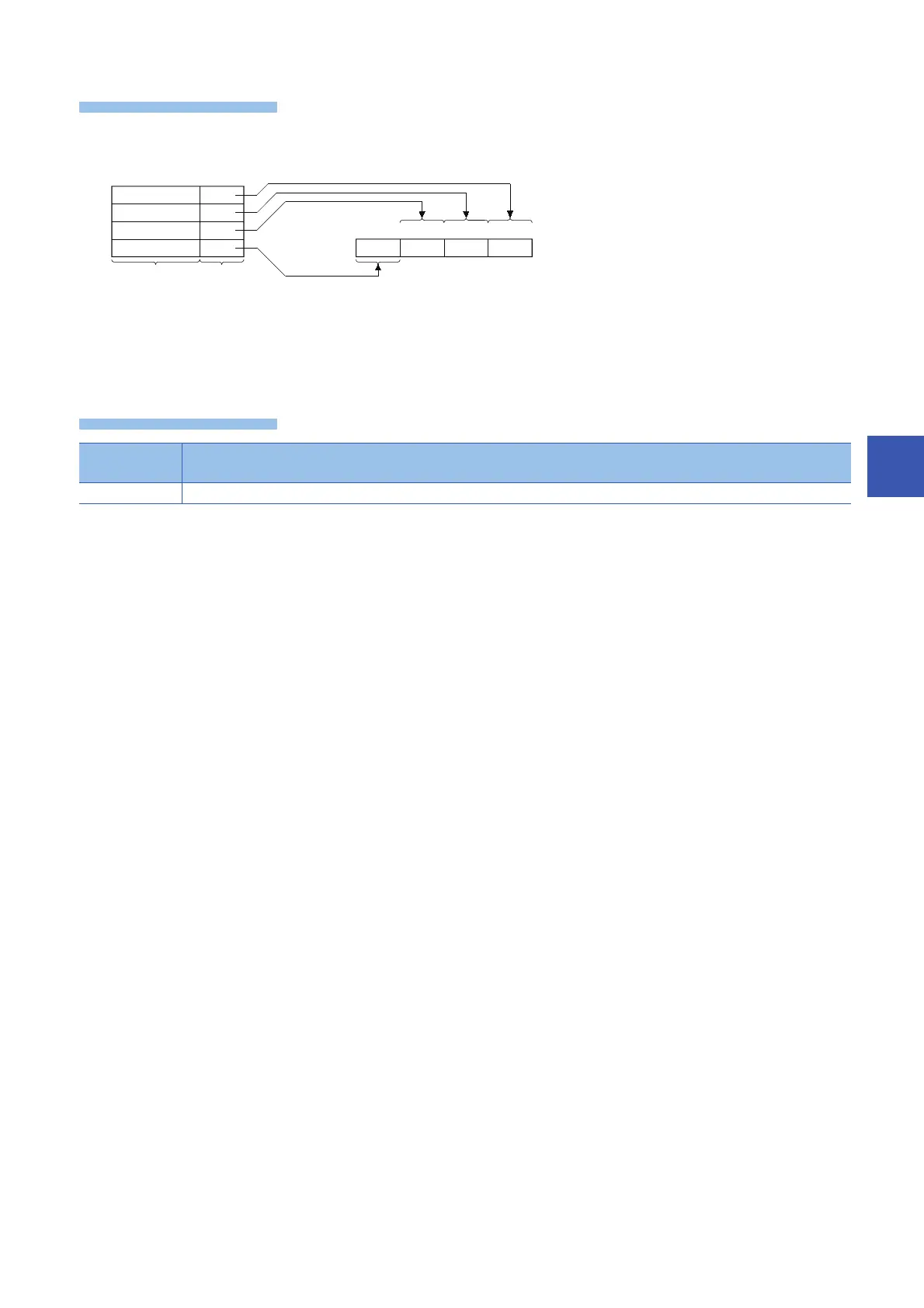

Processing details

• These instructions store the lower 4 bits of the (n) points of 16-bit binary data in the device specified by (s) in the 16-bit

device specified by (d).

• The upper bits (bits in the (4-n) nibble(s)) of data in the device specified by (d) are filled with 0s.

• Specify a value 1 to 4 for (n).

• When (n)=0, no processing is performed and the data in the device specified by (d) remain unchanged.

Operation error

(1) Ignored.

(2) Data to be connected

Error code

(SD0)

Description

3401H The value specified by (n) is out of the range, 0 to 4.



b3 b0



b7 b4



b11 b8



b15 b12

b0b3



b4b15

(d)

(s)

(s)+1

(s)+2

(s)+3

(2)(1)
