c. Click Apply to save the settings.
2. Assign IP address 192.150.2.2 to port 1/0/2.
a. Select Routing > IP > Advanced > IP Interface Configuration.

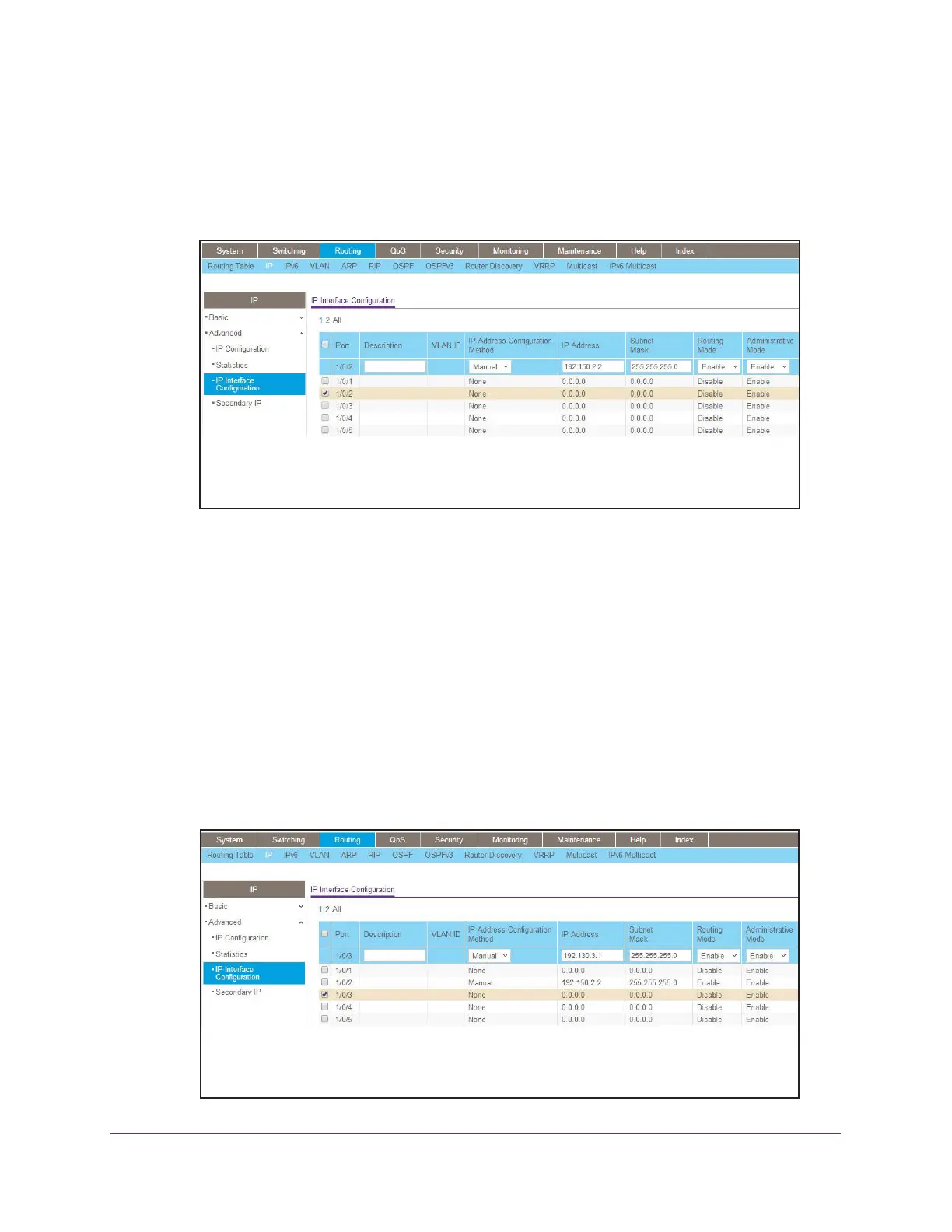

A screen similar to the following displays.
b. Scroll down and select the interface 1/0/2 check box.
Now 1/0/2 appears in the Interface field at the top.
c. Enter the following information:
• In the IP Address Configuration Method field, select Manual.
• In the IP Address field, enter 192.150.2.2.
• In the Network Mask field, enter 255.255.255.0.
• In the Admin Mode field, select Enable.
d. Click Apply to save the settings.
3. Assign IP address 192.130.3.1 to port 1/0/3:
a. Select Routing > IP > Advanced > IP Interface Configuration.
A screen similar to the following displays.
