OSPF
112
Managed Switches

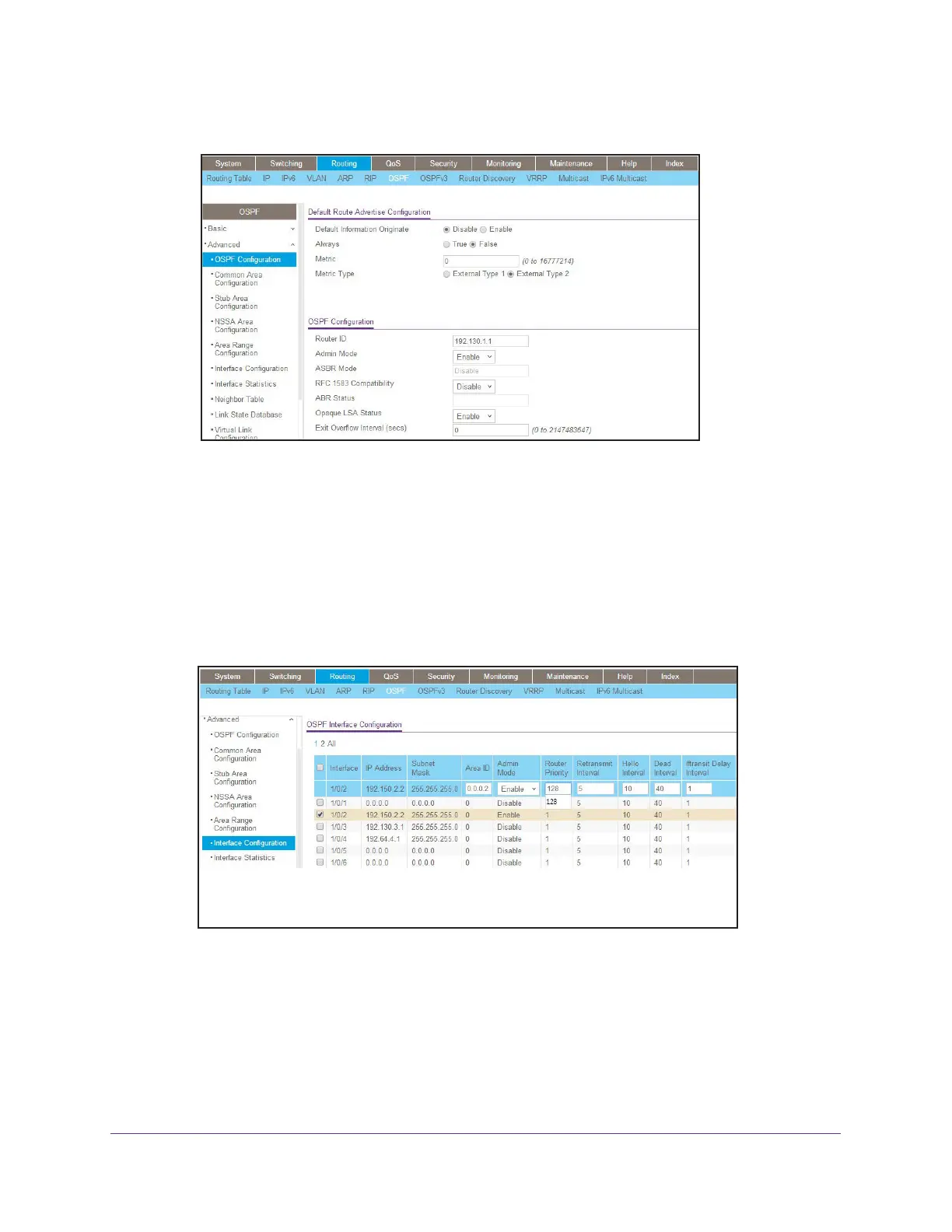

A screen similar to the following displays.
b. Under OSPF Configuration, enter the following information:
• In the Router ID field, enter 192.130.1.1.
• In the OSPF Admin Mode field, select Enable.
• In the RFC 1583 Compatibility field, select Disable.
c. Click Apply to save the settings.
6. Enable OSPF on the port 1/0/2.
a. Select Routing > OSPF > Advanced > Interface Configuration.
A screen similar to the following displays.
b. Under Interface Configuration, scroll down and select the interface 1/0/2 check box.
Now 1/0/2 appears in the Interface field at the top.
• In the OSPF Area ID field, enter 0.0.0.2.
• In the OSPF Admin Mode field, select Enable.
• In the Router Priority (0 to 255) field, enter 128.
• In the Metric Cost field, enter 32.
