NETGEAR M4200 User Manual

OSPF
122
Managed Switches
• In the Network Mask field, enter 255.255.255.0.
• In the Admin Mode field, select Enable.
d. Click Apply to save the settings.
3. Specify the router ID, and enable OSPF for the switch.

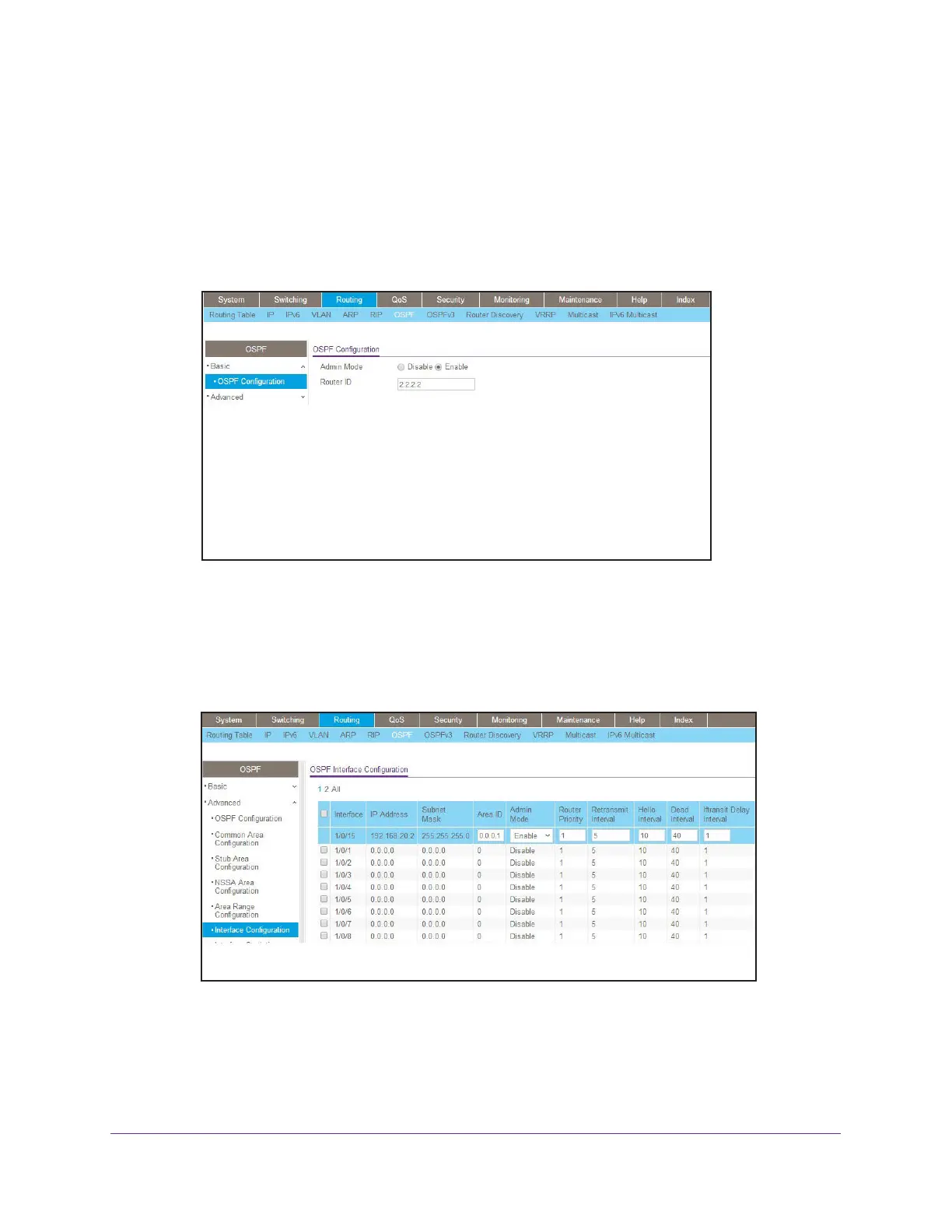

a. Select Routing > OSPF > Basic > OSPF Configuration.
A screen similar to the following displays.
b. In the Router ID field, enter 2.2.2.2.
c. Click Apply to save the settings.
4. Enable OSPF on port 1/0/15.
a. Select Routing > OSPF > Advanced > Interface Configuration.
A screen similar to the following displays.
b. Under Interface Configuration, scroll down and select the interface 1/0/15 check box.
Now 1/0/15 appears in the Interface field at the top.
• In the OSPF Area ID field, enter 0.0.0.1.
• In the OSPF Admin Mode field, select Enable.
