• In the Network Mask field, enter 255.255.255.0.
• In the Routing Mode field, select Enable.
d. Click Apply to save the settings.
3. Assign IP address 192.168.20.2 to port 1/0/15.
a. Select Routing > IP > Advanced > IP Interface Configuration.

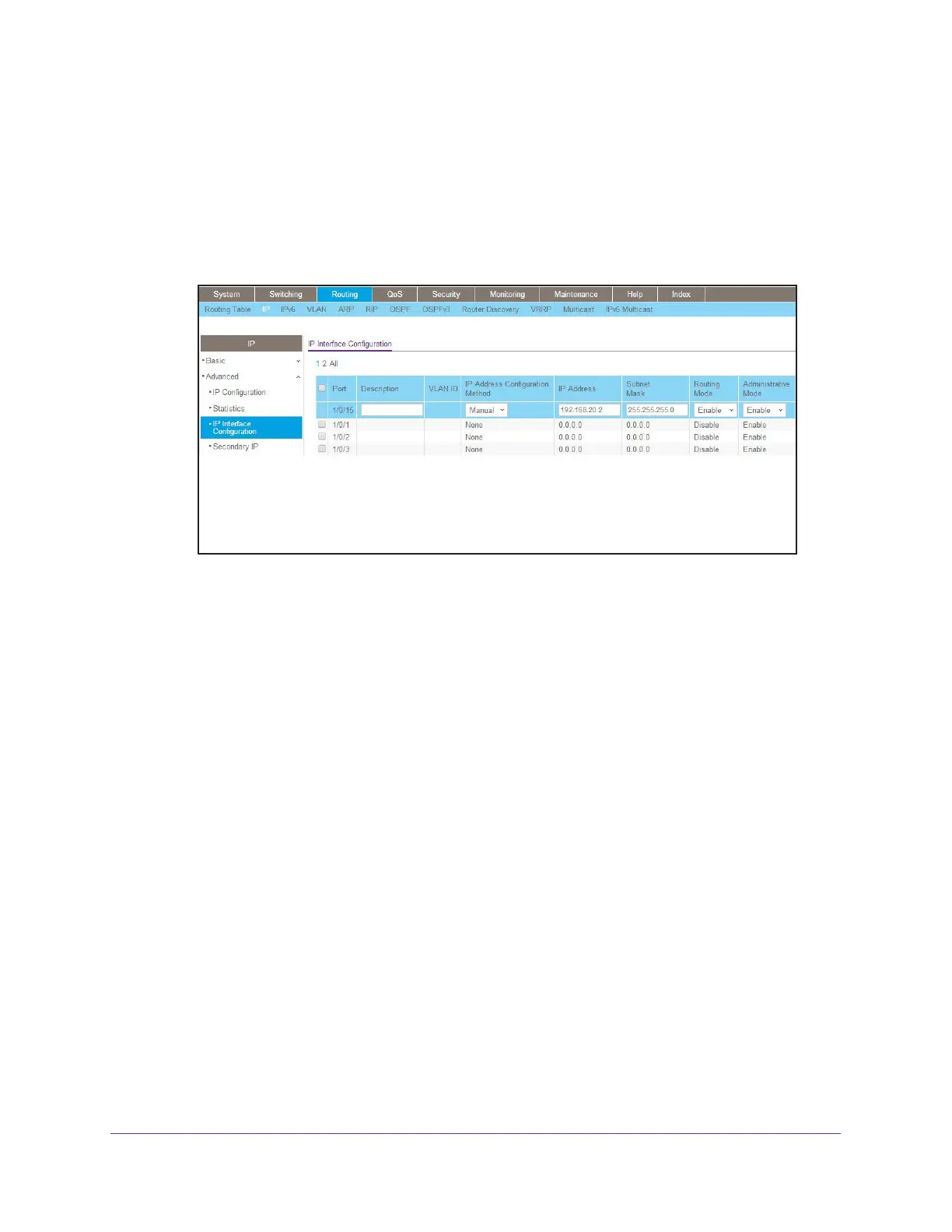

A screen similar to the following displays.
b. Under Configuration, scroll down and select the interface 1/0/15 check box.
Now 1/0/15 appears in the Interface field at the top.
c. Enter the following information:
• In the IP Address Configuration Method field, select Manual.
• In the IP Address field, enter 192.168.20.2.
• In the Network Mask field, enter 255.255.255.0.
• In the Routing Mode field, select Enable.
d. Click Apply to save the settings.
4. Specify the router ID, and enable OSPF for the switch.
a. Select Routing > OSPF > Basic > OSPF Configuration.
