c. Click Unit 1. The ports display:
Click the gray box under port 3 until T displays. The T specifies that the egress packet
is tagged for the port.
d. Click Apply to save the VLAN that includes port 3.
3. Enable OSPF on the switch.
a. Select Routing > OSPF > Basic > OSPF Configuration.

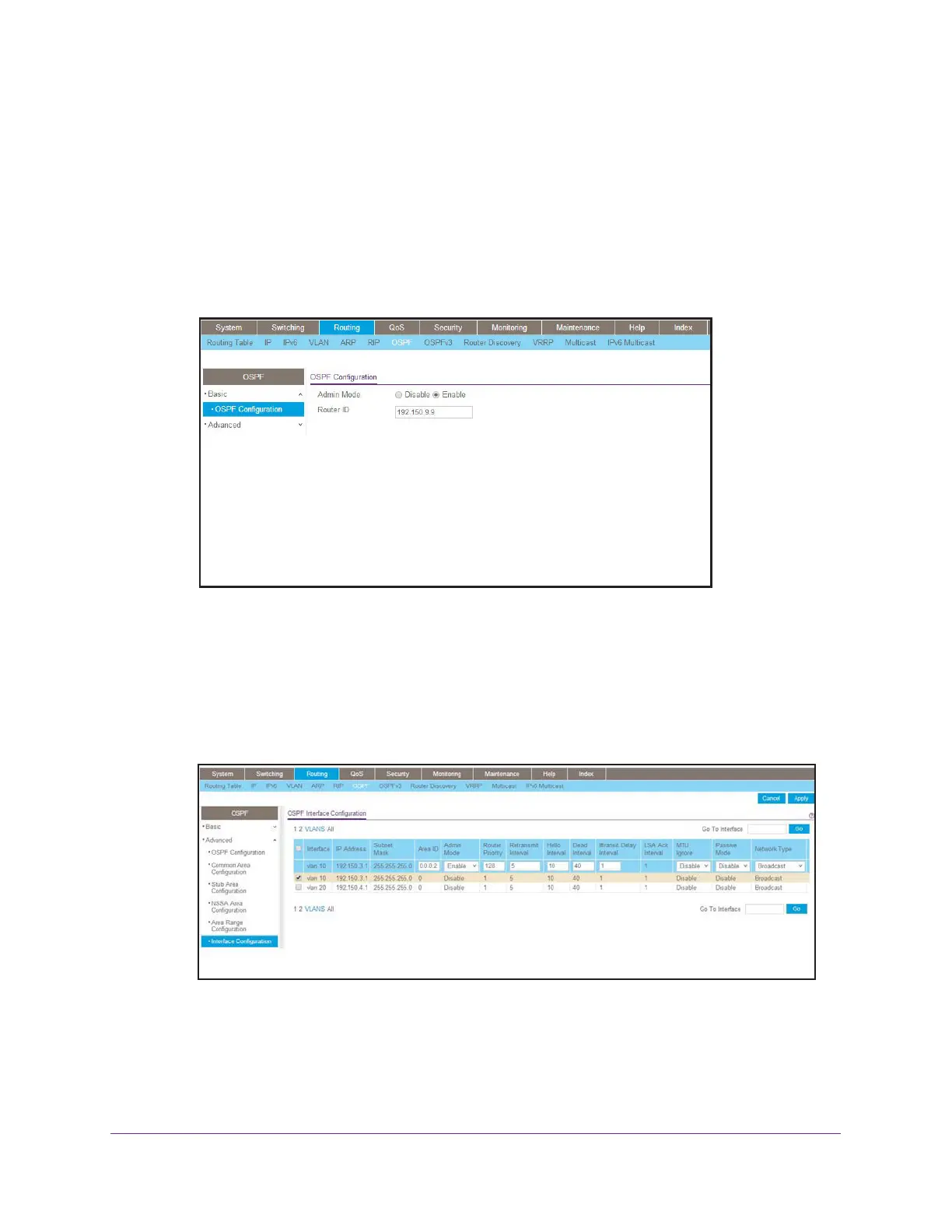

A screen similar to the following displays.
b. For OSPF Admin Mode, select the Enable radio button.
c. In the Router ID field, enter 192.150.9.9.
d. Click Apply to save the setting.
4. Enable OSPF on VLAN 10.
a. Select Routing > OSPF > Advanced > Interface Configuration.
A screen similar to the following displays.
b. Under Interface Configuration, click VLANS to show all the VLAN interfaces.
c. Scroll down and select the interface 0/2/1 check box. Now 0/2/1 appears in the
Interface field at the top.
