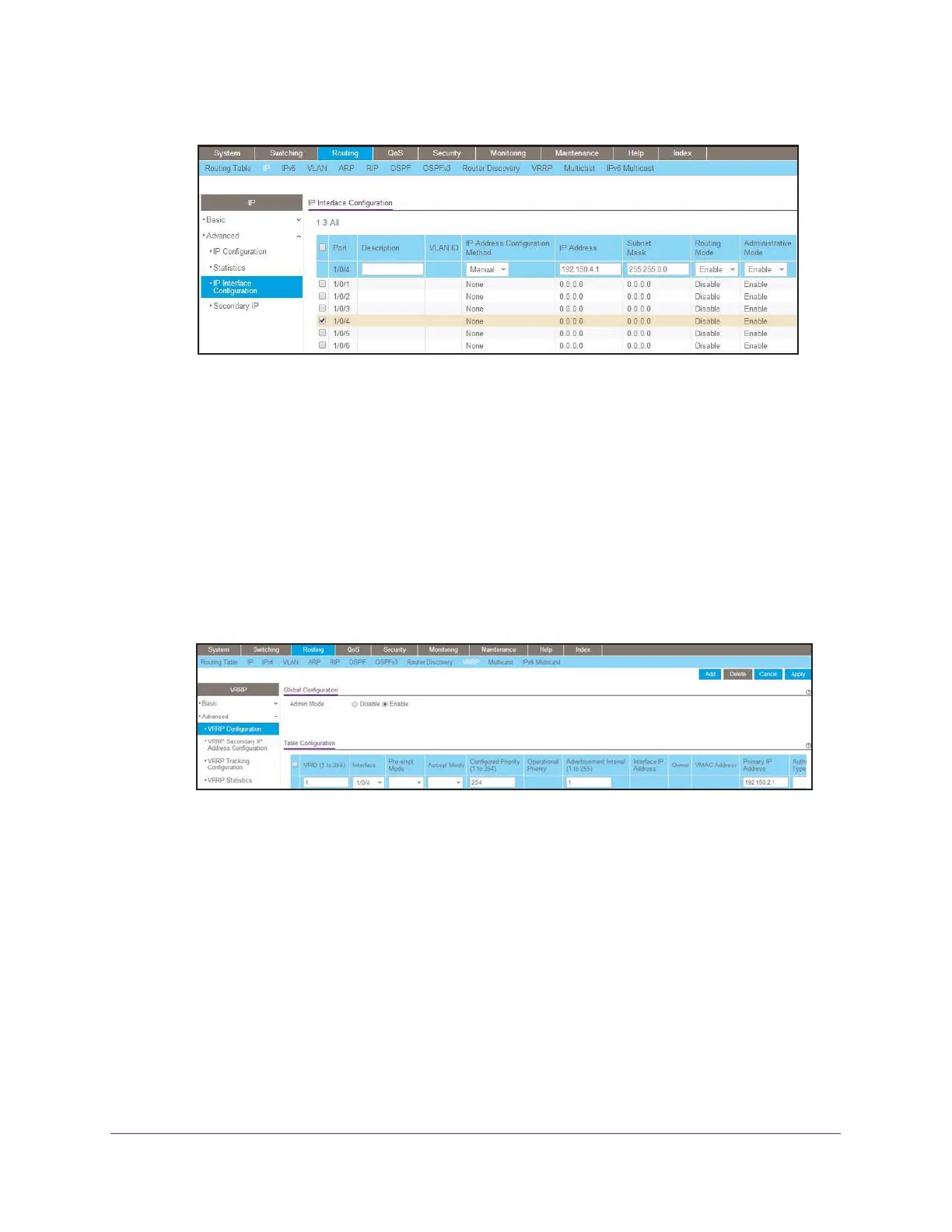

A screen similar to the following displays.
b. Scroll down and select the Interface 1/0/4 check box.
Now 1/0/4 appears in the Interface field at the top.
c. Enter the following information:
• In the IP Address field, enter 192.150.4.1.
• In the Network Mask field, enter 255.255.0.0.
• In the Administrative Mode field, select Enable.
d. Click Apply to save the settings.
3. Enable VRRP on port 1/0/4.
a. Select Routing > VRRP > Basic > VRRP Configuration.
A screen similar to the following displays.
b. Under Global Configuration, for Admin Mode, select the Enable radio button.
c. Enter the following information:
• In the VRID (1 to 255) field, enter 20.
• In the Interface field, select 1/0/4.
• In the Priority (1 to 255), enter 254.
• In the Primary IP Address field, enter 192.150.2.1.
• In the Status list, select Active.
d. Click Add to save the settings.
