ACLs
174
Managed Switches
b. In the VLAN Routing Wizard, enter the following information:
• In the Vlan ID field, enter 30.
• In the IP Address field, enter 192.168.30.1.
• In the Network Mask field, enter 255.255.255.0.
c. Click Unit 1. The ports display.
d. Click the gray box under port 35 twice until U displays.
The U specifies that the egress packet is untagged for the port.
e. Click Apply to save VLAN 30.
2. Create VLAN 100 with IP address 192.168.100.1/24.
a. Select Routing > VLAN > VLAN Routing Wizard.

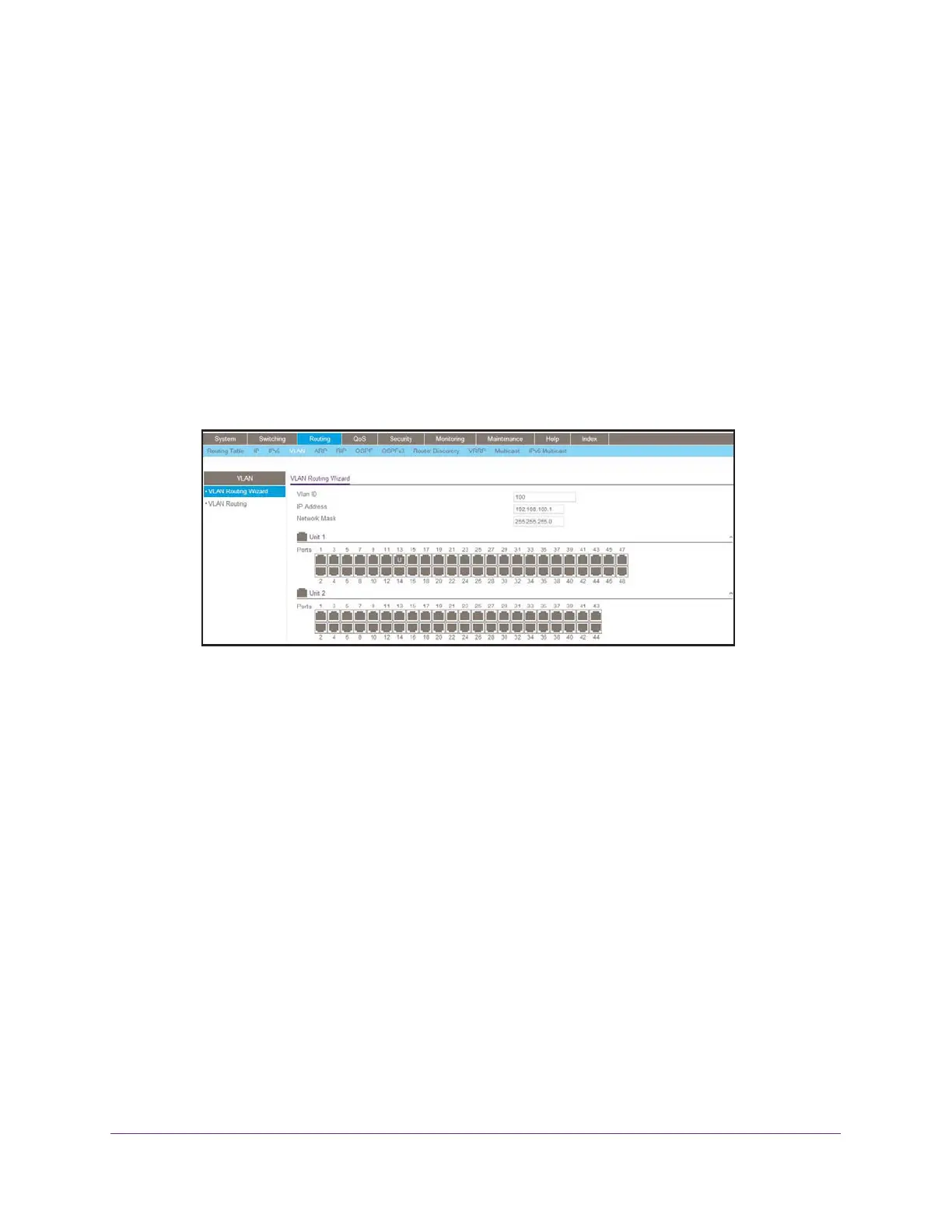

A screen similar to the following displays.
b. Enter the following information:
• In the Vlan ID field, enter 100.
• In the IP Address field, enter 192.168.100.1.
• In the Network Mask field, enter 255.255.255.0.
c. Click Unit 1. The ports display.
d. Click the gray box under port 13 twice until U displays.
The U specifies that the egress packet is untagged for the port.
e. Click Apply to save VLAN 100.
3. Create VLAN 200 with IP address 192.168.200.1/24.
a. Select Routing > VLAN > VLAN Routing Wizard.
