ACLs
183
Managed Switches
b. Under Configure Routes, make the following selections and enter the following
information:
• Select Static in the Route Type field.
• In the Network Address field, enter 192.168.100.0.
• In the Subnet Mask field, enter 255.255.255.0.
• In the Next Hop IP Address field, enter 192.168.200.1.
c. Click Add.
5. Create a static route with IP address 192.168.30.0/24:
a. Select Routing > Routing Table > Basic > Route Configuration.

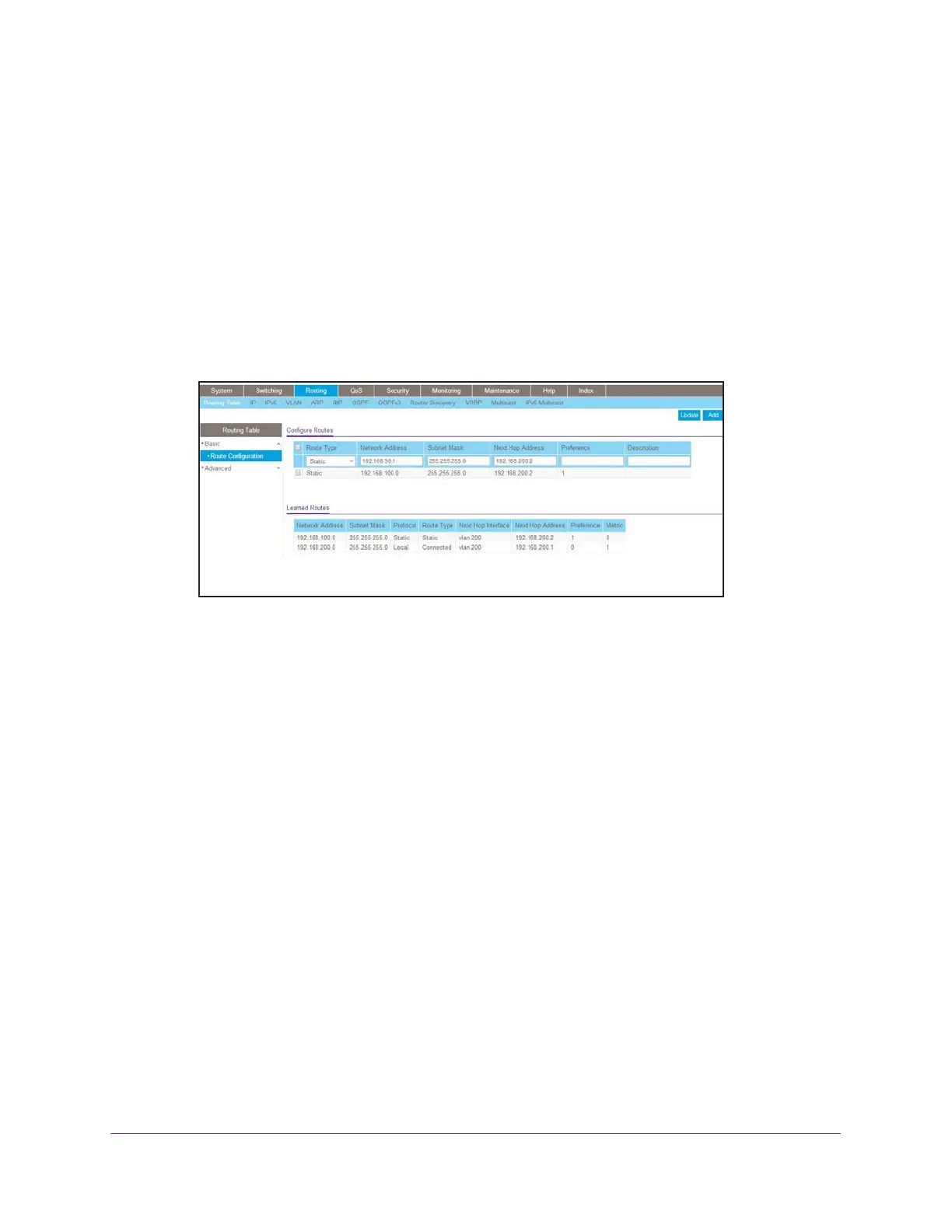

A screen similar to the following displays.
b. Under Configure Routes, make the following selection and enter the following
information:
• In the Route Type field, select Static.
• In the Network Address field, enter 192.168.30.0.
• In the Subnet Mask field, enter 255.255.255.0.
• In the Next Hop IP Address field, enter 192.168.200.1.
c. Click Add.
