ACLs
188
Managed Switches

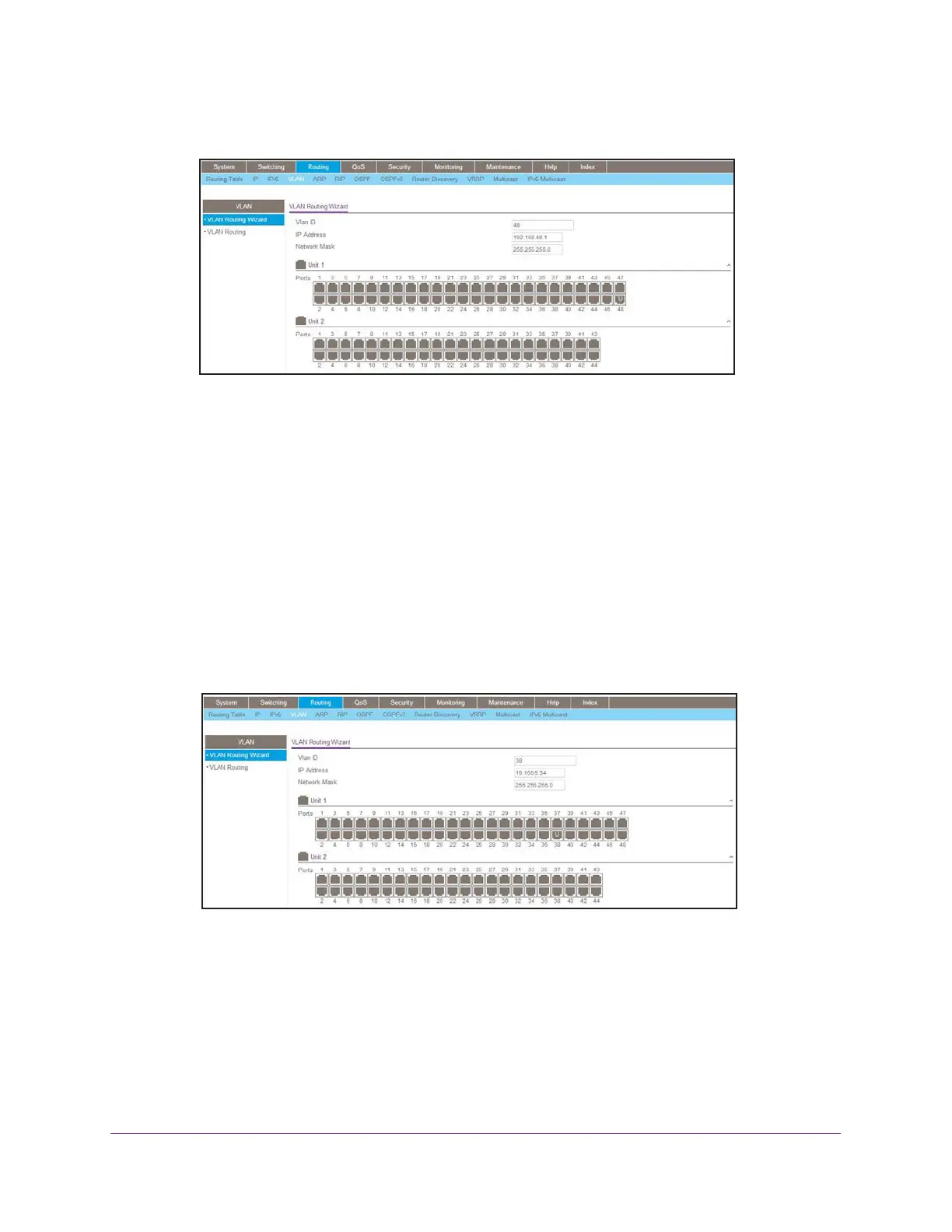

A screen similar to the following displays.
b. Enter the following information:
• In the Vlan ID field, enter 48.
• In the IP Address field, enter 192.168.48.1.
• In the Network Mask field, enter 255.255.255.0.
c. Click Unit 1. The ports display.
d. Click the gray box under port 48 twice until U displays.
The U specifies that the egress packet is untagged for the port.
e. Click Apply to save VLAN 48.
3. Create VLAN 38 with IP address 10.100.5.34.
a. Select Routing > VLAN > VLAN Routing Wizard.
A screen similar to the following displays.
b. Enter the following information in the VLAN Routing Wizard:
• In the Vlan ID field, enter 38.
• In the IP Address field, enter 10.100.5.34.
• In the Network Mask field, enter 255.255.255.0.
c. Click Unit 1. The ports display.
d. Click the gray box under port 38 twice until U displays.
The U specifies that the egress packet is untagged for the port.
