ACLs
207
Managed Switches

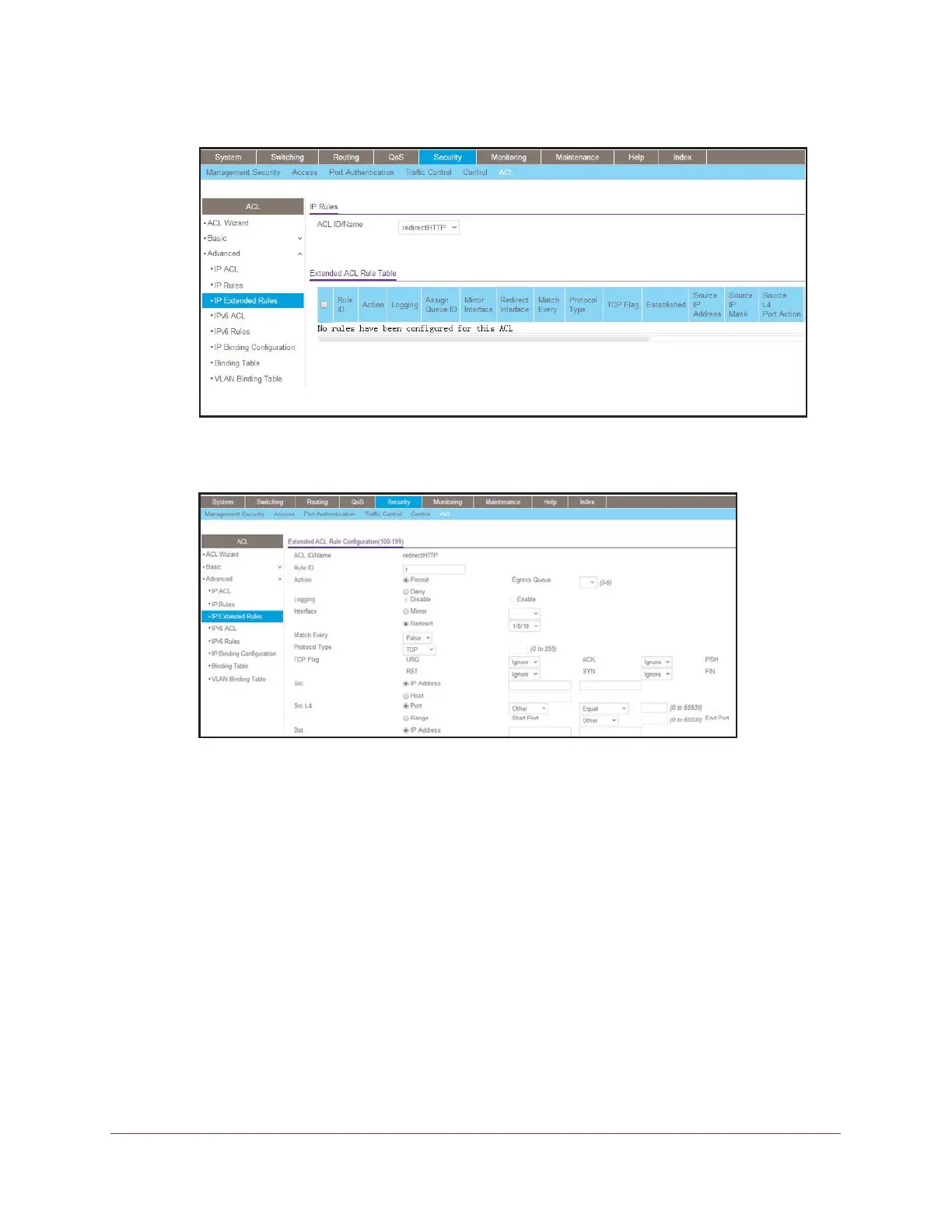

A screen similar to the following displays.
b. Click Add.
A screen similar to the following displays.
c. In the Rule ID field, enter 1.
d. In the protocol field, select www-http.
e. For Action, select the Permit radio button.
f. In the Redirect Interface list, select 1/0/19.
g. In the Dst L4 Port list, select http.
h. Click Apply. The Extended ACL Rules screen displays, as described in the next step
in this procedure.
3. Create a rule to match every other traffic.
a. Select Security > ACL > Advanced > IP Extended Rules.
