NETGEAR M4200

ACLs
220
Managed Switches

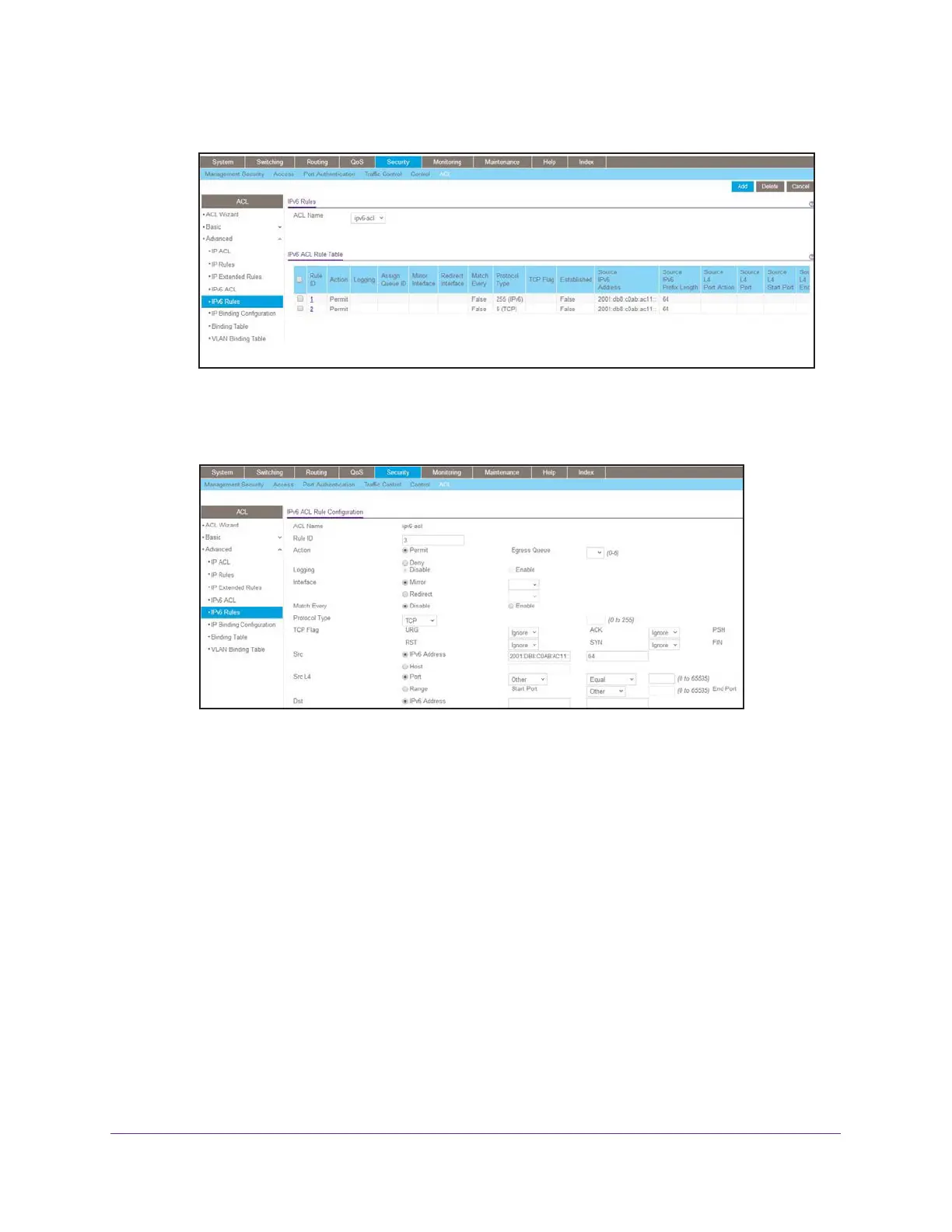

A screen similar to the following displays.
b. In the ACL Name list, select ipv6-acl.
c. Click Add.
A screen similar to the following displays.
d. In the Rule ID field, enter 3.
e. For Action, select the Permit radio button.
f. In the Protocol Type list, select TCP.
g. In the Source Prefix field, enter 2001:DB8:C0AB:AC11::.
h. In the Source Prefix Length field, enter 64.
i. In the Destination L4 Port list, select http.
j. Click Apply.
5. Apply the rules to inbound traffic on port 1/0/1.
Only traffic matching the criteria will be accepted.
a. Select Security > ACL > Advanced > IP Binding Configuration.
b. In the ACL ID list, select ipv6-acl.
c. In the Sequence Number list, select 1.
d. Click Unit 1.
e. Select Port 1.
