DiffServ
254
Managed Switches

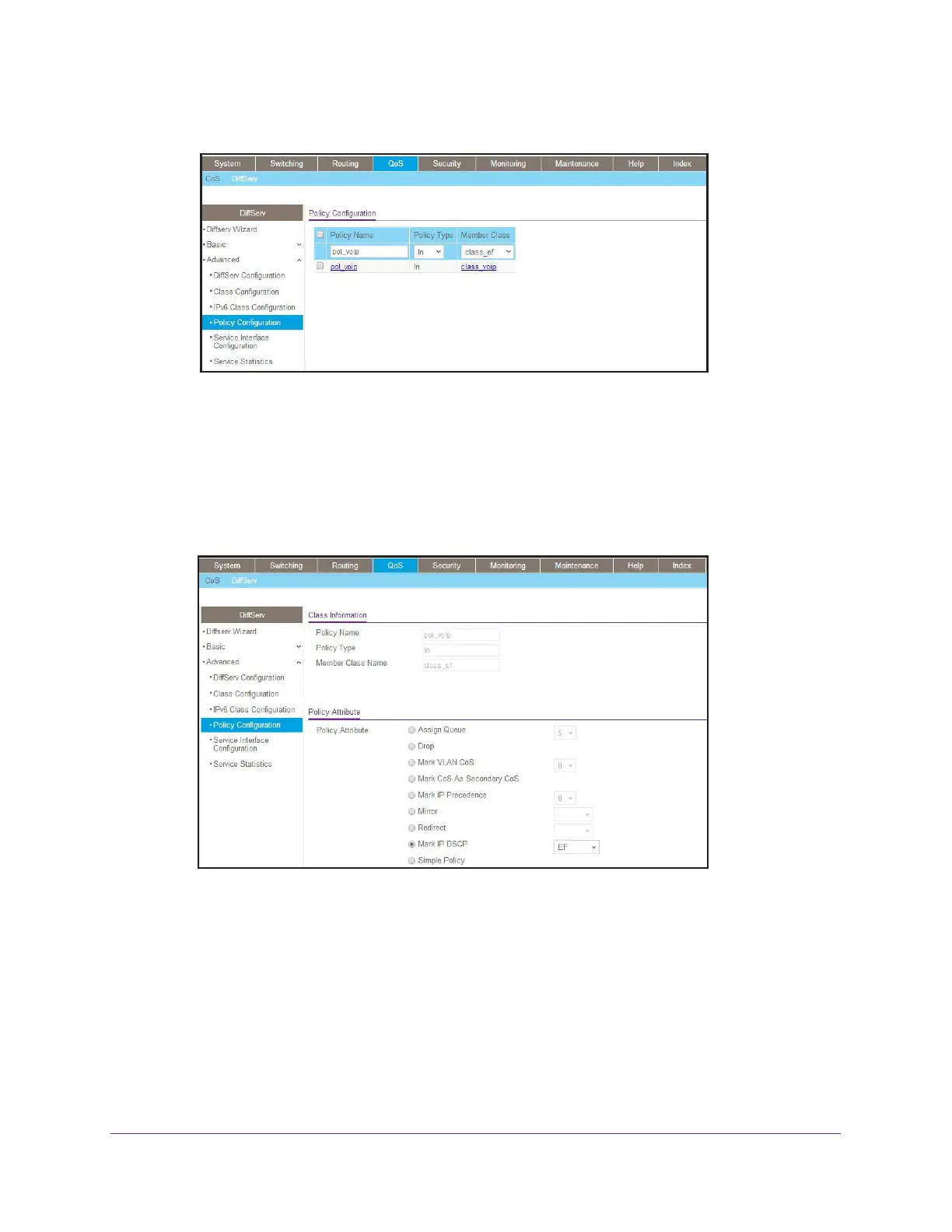

A screen similar to the following displays.
b. Under Policy Configuration, scroll down and select the pol_voip check box.
Pol_voip now appears in the Policy Selector field at the top.
c. In the Member Class list, select class_ef in.
d. Click Apply to add the class class_ef to the policy pol_voip.
e. Click the pol_voip whose class member is class_ef.
A screen similar to the following displays.
f. In the Assign Queue list, select 5.
g. Click Apply to create a new policy.
7. Attach the defined policy to interface 1/0/2 in the inbound direction.
a. Select QoS > DiffServ > Advanced > Service Configuration.
