DiffServ

264

Managed Switches

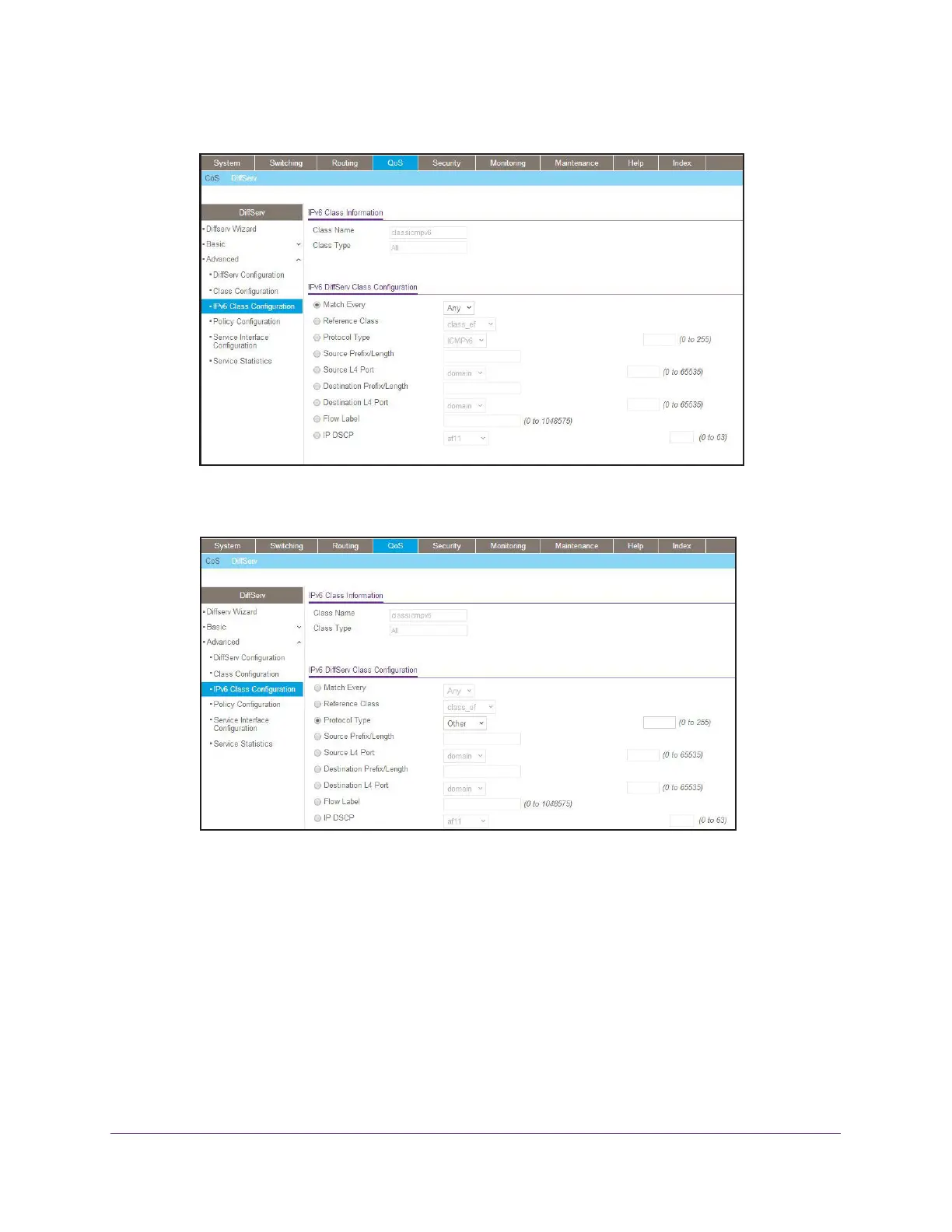

A screen similar to the following displays.

c. Select the Protocol Type radio button, select Other, and enter 58.

A screen similar to the following displays.
