MAB

384

Managed Switches

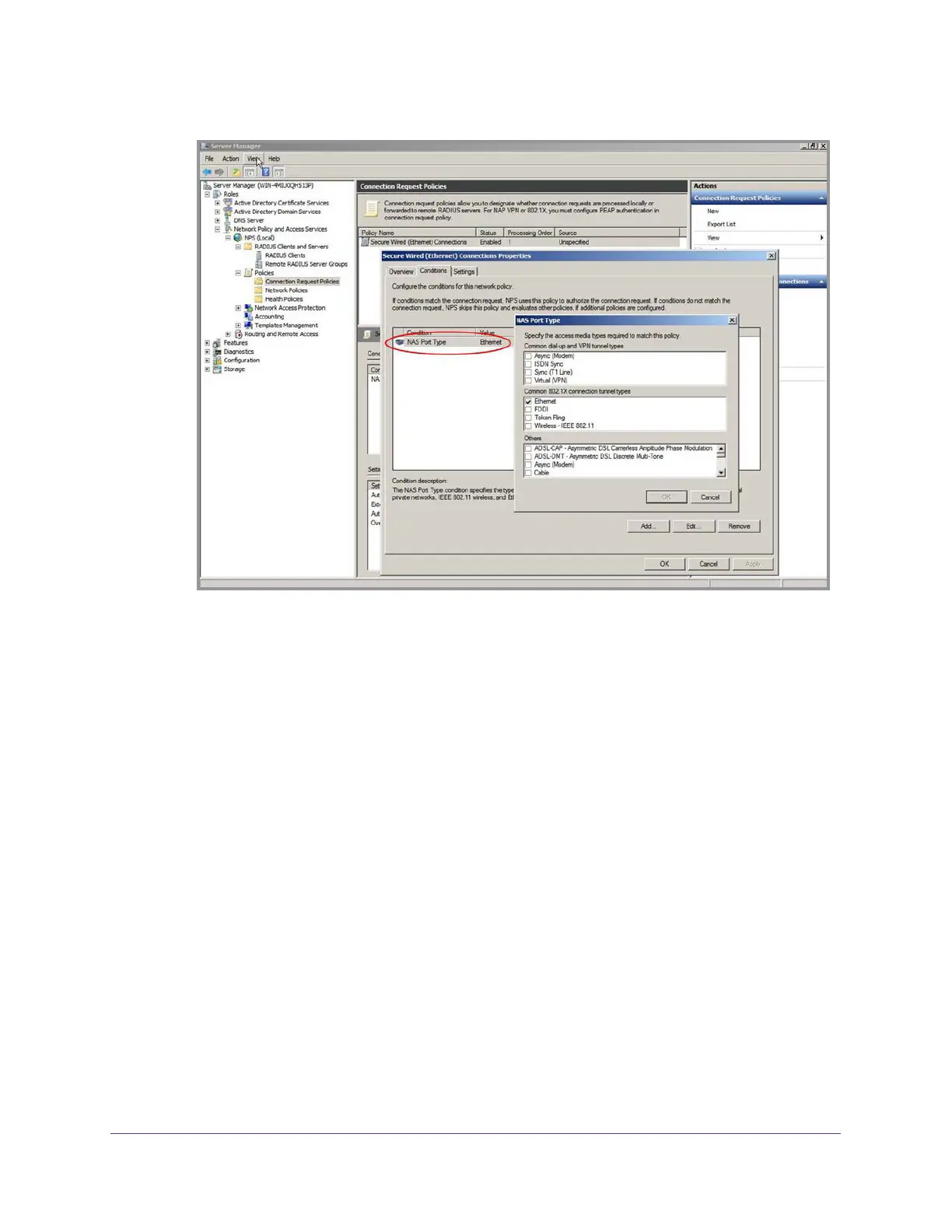

g. Configure the NAS Port Type field as Ethernet.

h. Click the Apply button.

i. Click the Settings tab.

The screen adjusts.
