IPv6 Interface Configuration
546
Managed Switches

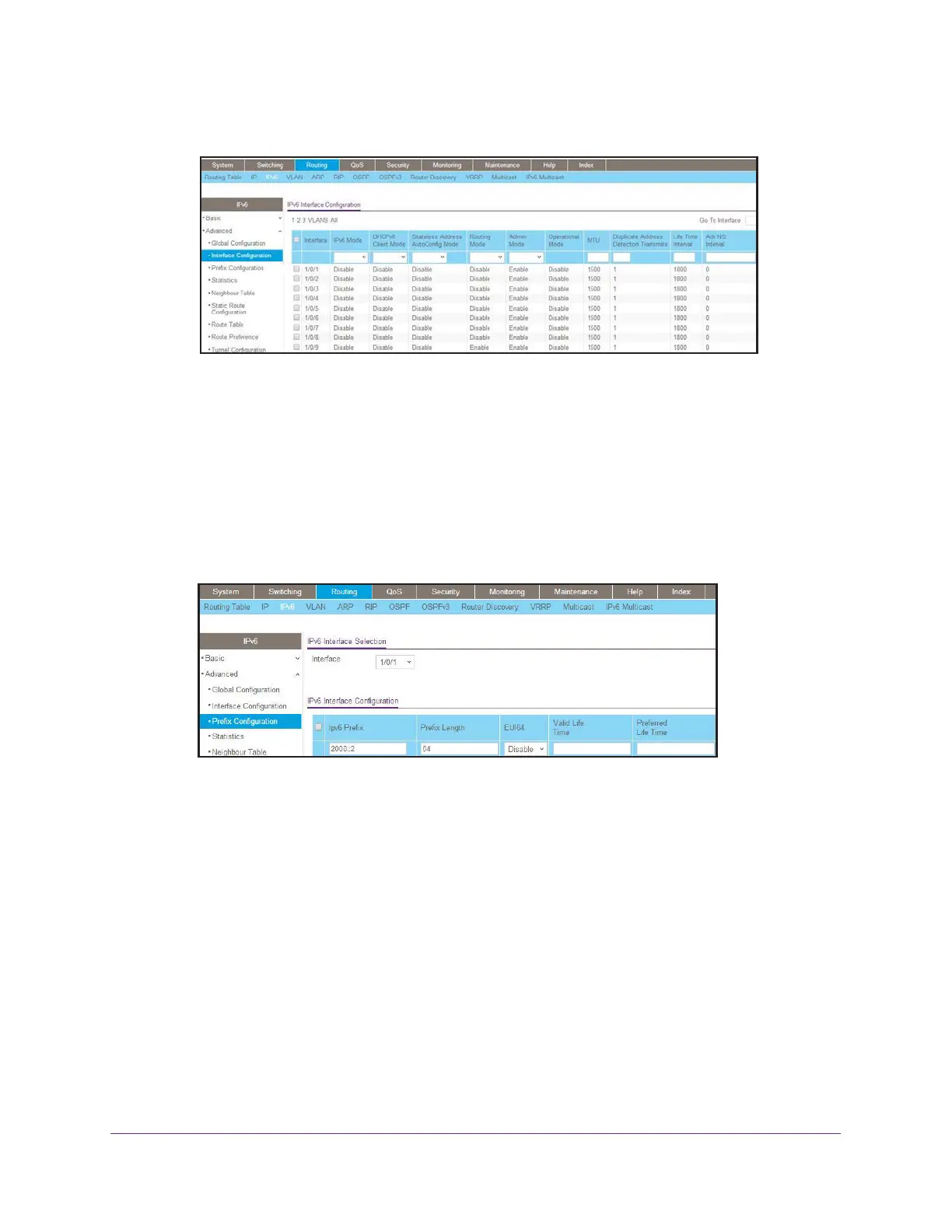

A screen similar to the following displays.
b. Under IPv6 Interface Configuration, scroll down and select the Interface 1/0/1 check
box.
Now 1/0/1 appears in the Interface field at the top.
c. In the IPv6 Mode field, select Enable.
d. Click Apply to save the settings.
3. Assign an IPv6 address to the routing interface.
a. Select Routing > IPv6 > Advanced > Prefix Configuration.
A screen similar to the following displays.
b. In the Interface list, select 1/0/1.
c. In the IPv6 Prefix field, enter 2000::2.
d. In the Length field, enter 64.
e. In the EUI64 field, select Disable.
f. Click Add.
