PIM
564
Managed Switches
d. Click Apply to save the settings.
5. Enable RIP on the interface 1/0/1.
a. Select Routing > RIP > Advanced > Interface Configuration.

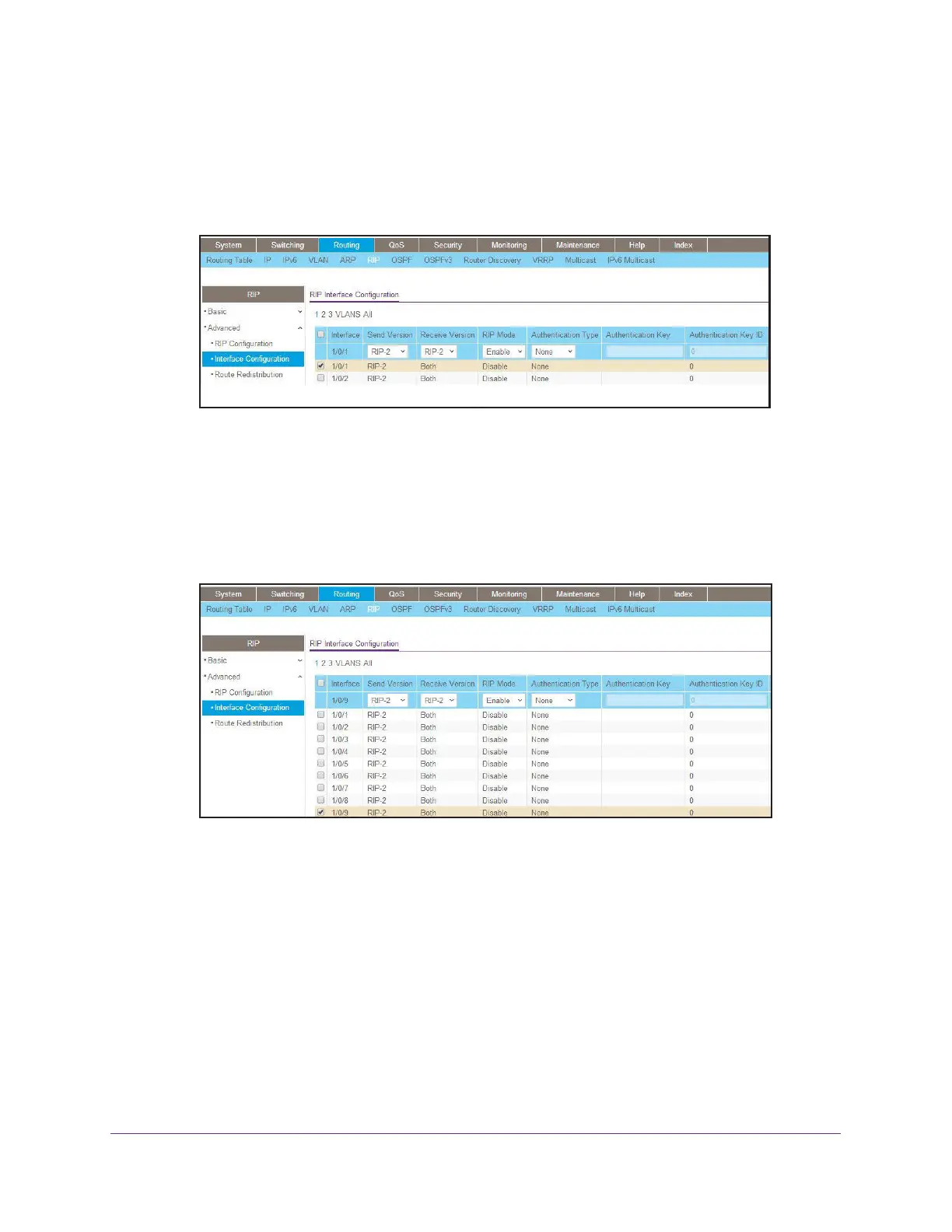

A screen similar to the following displays.
b. In the Interface list, select 1/0/1.
c. For RIP Admin Mode, select the Enable radio button.
d. Click Apply.
6. Enable RIP on interface 1/0/9.
a. Select Routing > RIP > Advanced > Interface Configuration.
A screen similar to the following displays.
b. In the Interface field, select 1/0/9.
c. For RIP Admin Mode, select the Enable radio button.
d. Click Apply.
7. Enable RIP on interface 1/0/13.
a. Select Routing > RIP > Advanced > Interface Configuration.
