RIP
98
Managed Switches
b. Enter the following information:
• In the Vlan ID field, enter 20.
• In the IP Address field, enter 192.150.4.1.
• In the Network Mask field, enter 255.255.255.0.
c. Click Unit 1. The ports display.
d. Click the gray box under port 3 until T displays.
The T specifies that the egress packet is tagged for the port.
e. Click Apply to save the VLAN that includes port 3.
3. Enable RIP on the switch (you can skip this step since the RIP is enabled by default).

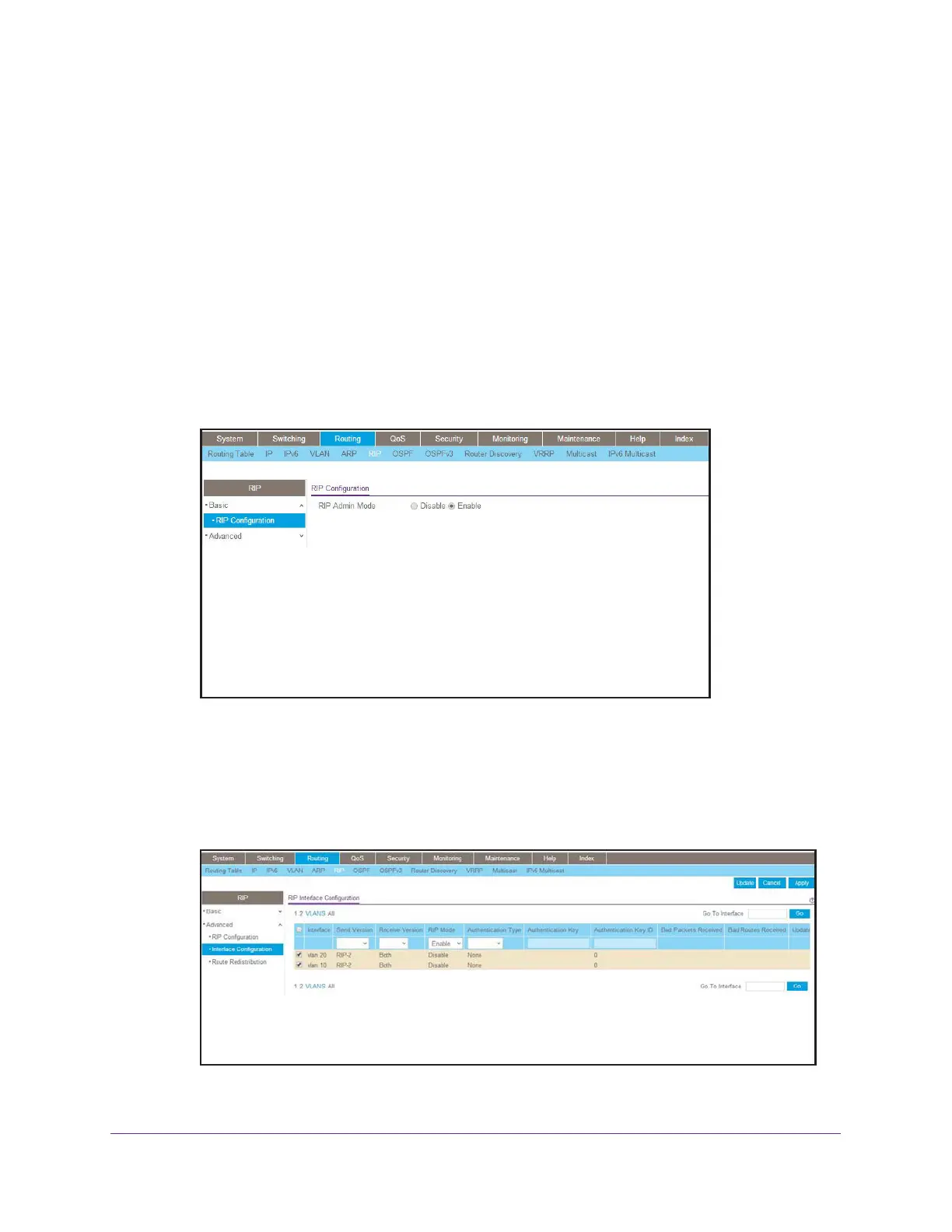

a. Select Routing > RIP > Basic > RIP Configuration.
A screen similar to the following displays.
b. For RIP Admin Mode, select the Enable radio button.
c. Click Apply to save the setting.
4. Enable RIP on VLANs 10 and 20.
a. Select Routing > RIP > Advanced > RIP Configuration.
A screen similar to the following displays.
b. Click the VLANS on the top of table.
