･ If you accidentally move the Carriage, you will hear a warning tone.
In this case, close the Top Cover.

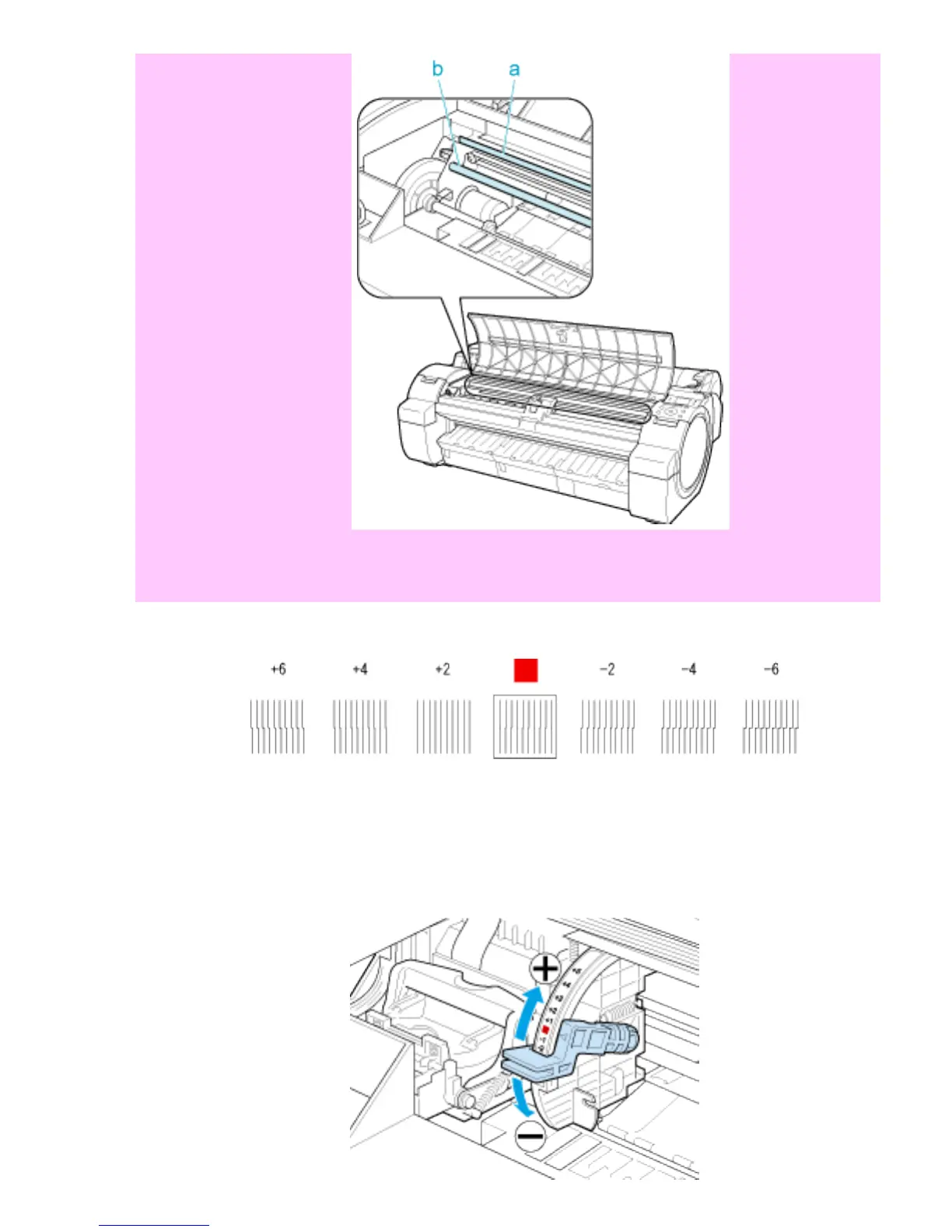

8. Examine the test pattern for adjustment. Determine the straightest set of lines.
9. Open the Top Cover and move the Angle Adjustment Lever to match the number (or the
square) of the straightest set of lines.
If no single set of lines is perfectly straight, move the Angle Adjustment Lever to a position
between the numbers (or between the number and the square) of the two sets of lines that
are least misaligned.
