Virtual Chassis Configuration Example
This section provides an example of virtual chassis configuration in a network.

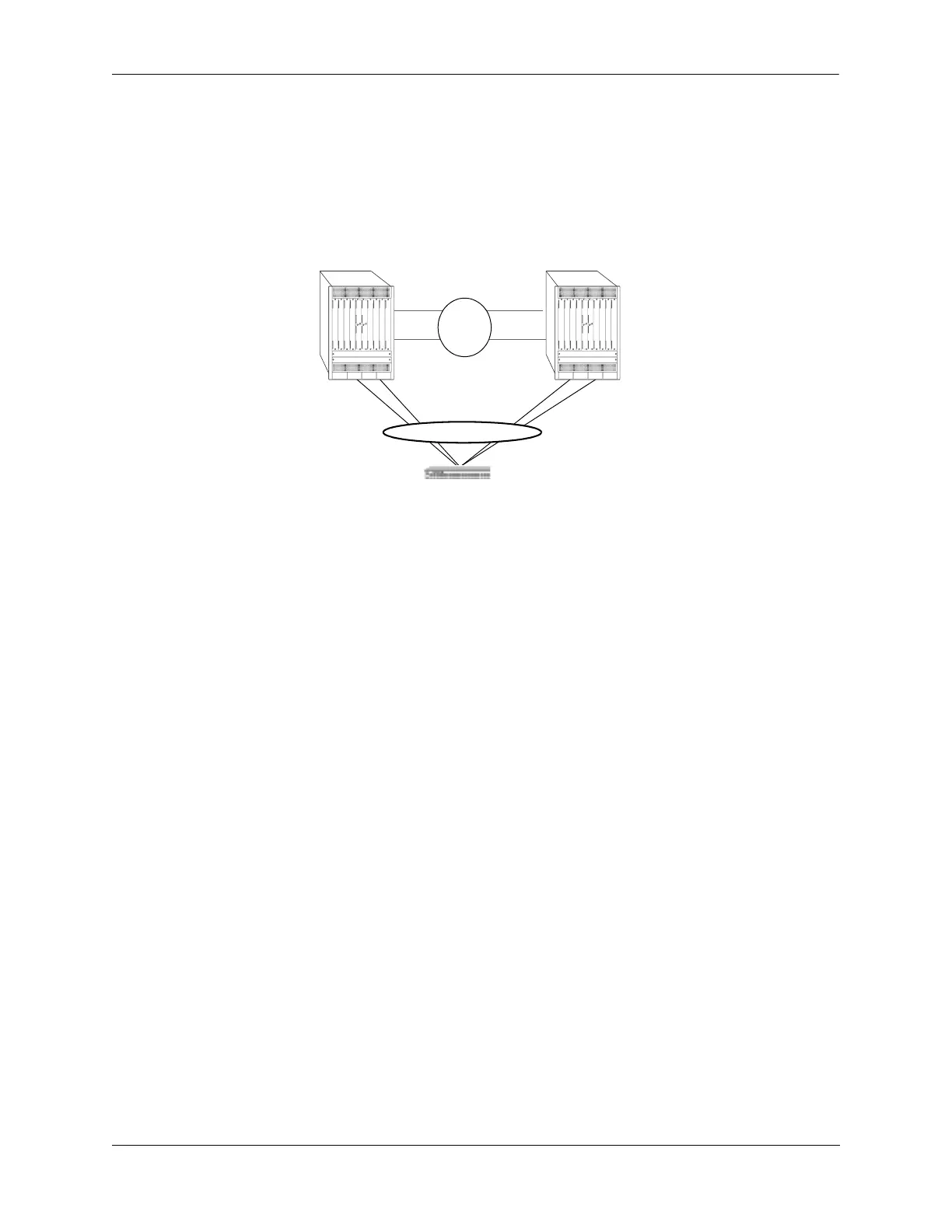

VC Example
Virtual Chassis Configuration
Chassis_1-> virtual-chassis configured-chassis-id 1
Chassis_1-> virtual-chassis vf-link 0 create
Chassis_1-> virtual-chassis vf-link 0 member-port 1/24-25
Chassis_1-> ip interface local emp address 10.255.100.1 mask 255.255.255.0
Chassis_1-> write memory
Chassis_1-> convert-configuration to vc_dir
Chassis_2-> virtual-chassis configured-chassis-id 2
Chassis_2-> virtual-chassis vf-link 0 create
Chassis_2-> virtual-chassis vf-link 0 member-port 1/24-25
Chassis_1-> ip interface local emp address 10.255.100.2 mask 255.255.255.0
Chassis_2-> write memory
Chassis_2-> convert-configuration to vc_dir
Chassis_1-> reload from vc_dir no rollback-timeout
Chassis_2-> reload from vc_dir no rollback-timeout
Virtual Chassis EMP IP Address Configuration
Once the virtual chassis group is operational, the rest of the configuration is carried out on the Master
Chassis. The step below is critical because it defines an IP address that will be used to manage the entire
virtual chassis.
VC_Core-> ip interface master emp address 10.255.100.100 mask 255.255.255.0
VLAN Configuration
Now that the virtual chassis group is operational, the rest of the configuration is carried out on the Master
chassis.
VFL
Master - Chassid-id 1
Slave - Chassid-id 2
LAG
