Configuring MVRP MVRP Overview
OmniSwitch AOS Release 7 Network Configuration Guide June 2013 page 12-7
2 Port 4 advertises VLAN 50, but is not a member of VLAN 50.
3 Port 3 of Switch B receives the advertisement, Switch B creates the dynamic VLAN 50, and Port 3
becomes a member of VLAN 50.
4 Port 2 advertises VLAN 50, but is not a member of this VLAN.
5 Port 1 on Switch A receives the advertisement, creates dynamic VLAN 50. Port 1 becomes a member
of VLAN 50.
The resulting configuration is depicted as follows:

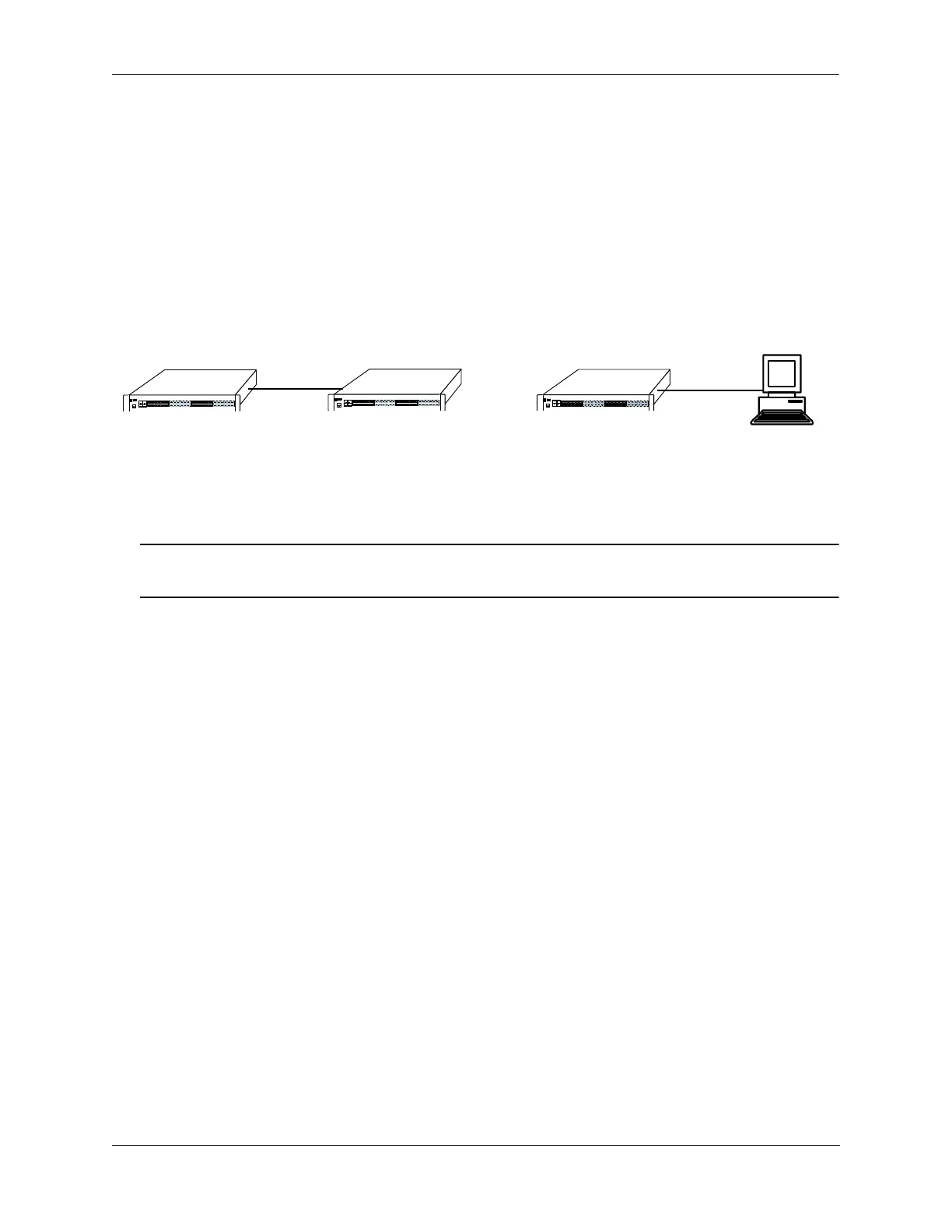

Dynamic Learning of VLAN 50
Note. Every port on a switch is not a member of all the VLANs. Only those ports that receive the
advertisement become members of the VLAN being advertised.
Switch A
Switch C
Switch B
End Station
Static VLAN: 10, 20, 30
Dynamic VLAN: 50
Static VLAN
Dynamic VLAN: 10, 20, 30, 50
1
2
3
4
5
Static VLAN
Dynamic VLAN: 10, 20, 30, 50
Static VLAN 50
