UNP Overview Configuring Universal Network Profiles
page 27-22 OmniSwitch AOS Release 7 Network Configuration Guide June 2013
B. SAP Assignment

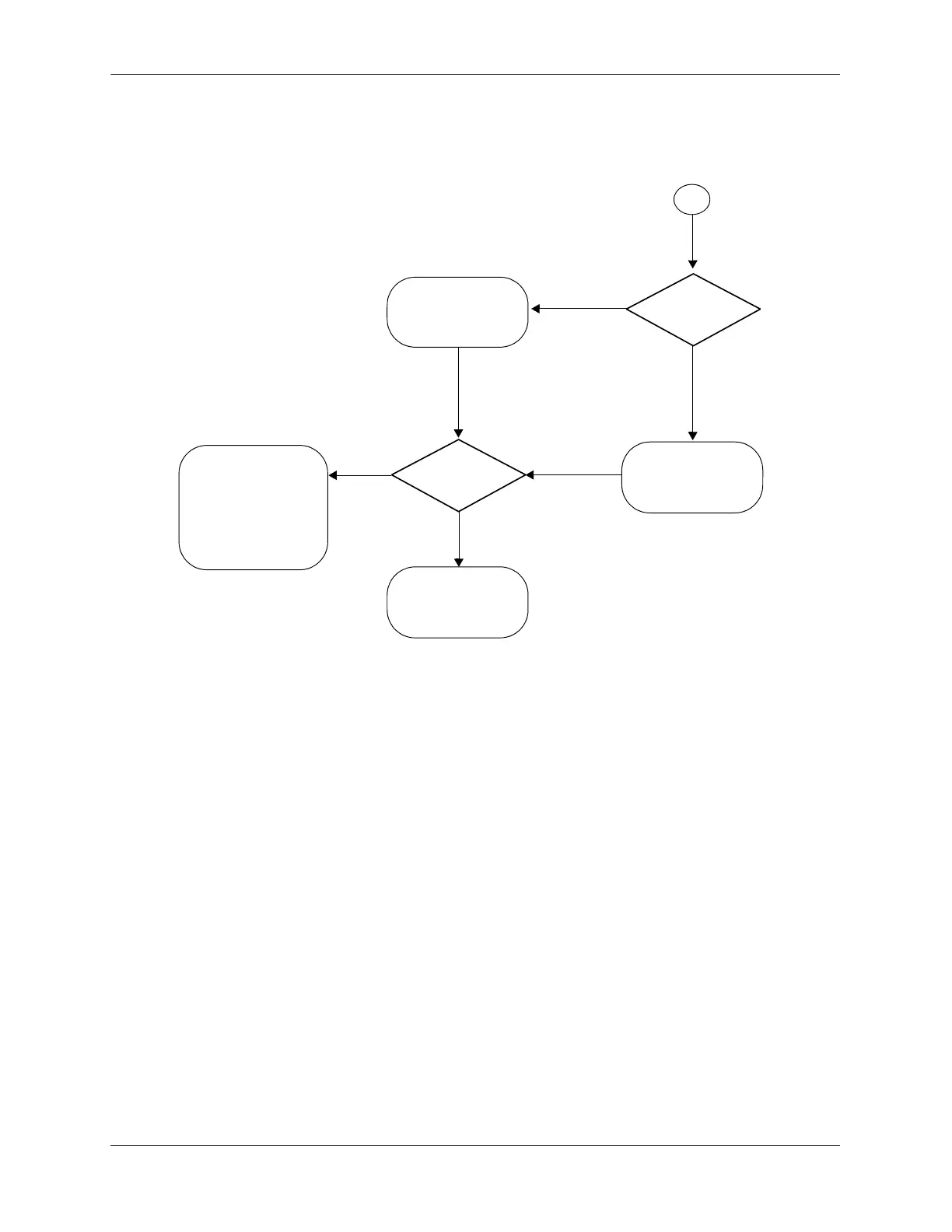

When initial classification returns a UNP profile, the following process is applied to determine the SAP to
which profile traffic is assigned:
1
The following conditions will prevent the switch from creating a dynamic SAP and the switch will filter
the packets intended for the SAP:
• The SAP already exists but is attached to a different I-SID/BLVAN.
• Switch resources are not available or configuration limits have reached the maximum number allowed.


Matching SAP
exists?


Trust VLAN tag
enabled?
B
SAP lookup based on
VLAN tag value of
NO
[End of Processing]
NO
YES
SAP lookup based on
VLAN tag value of
UNP service profile.
the packet.
Packet MAC address
assigned to SAP.
[End of Processing]
YES
If switch resources allow,
SAP is dynamically created
and packet MAC address
is assigned to the dynamic
SAP
1
