Step-by-Step Basic Installation Section 2-3

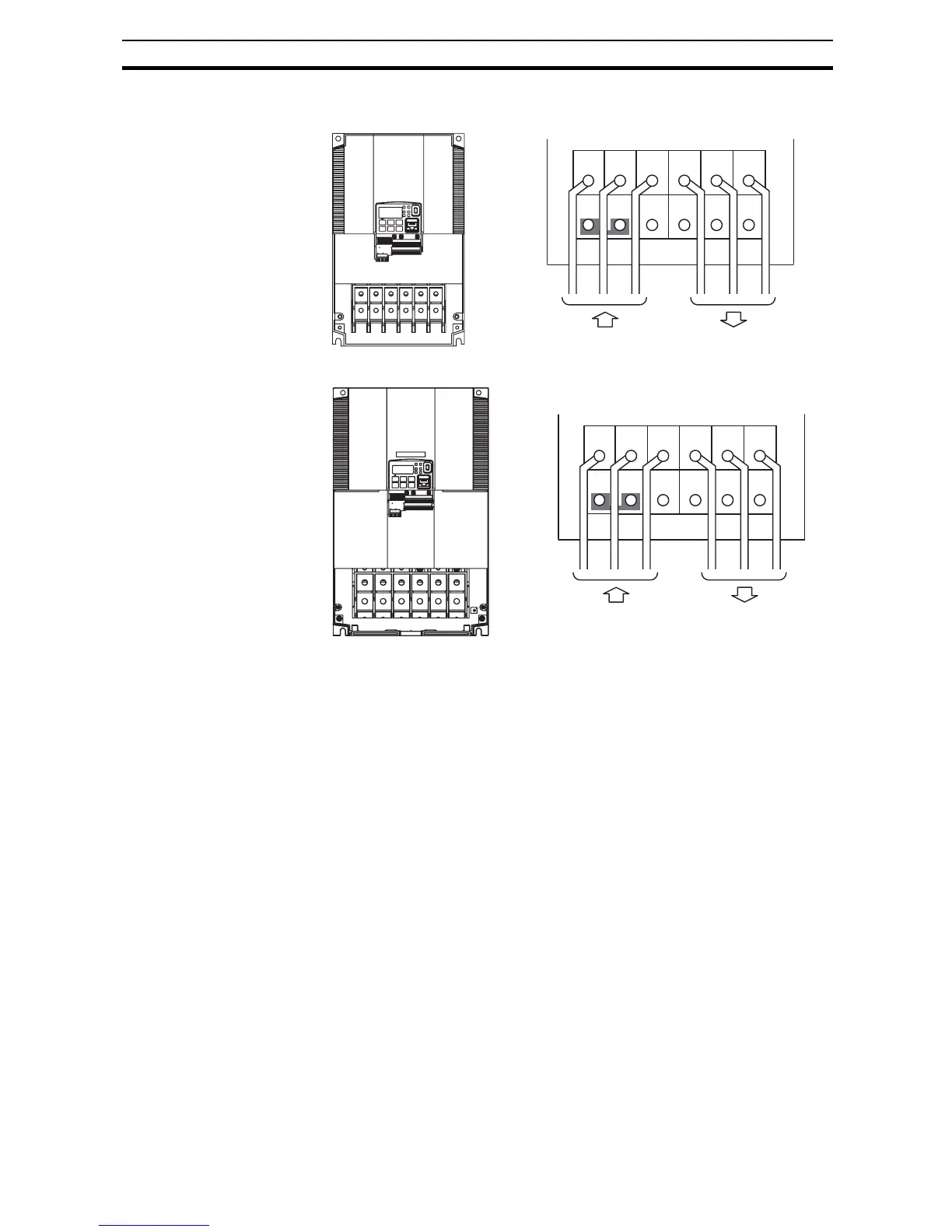

Three-phase 200 V 11 kW
Three-phase 400 V 11, 15 kW
Three-phase 200 V 15 kW
Note An inverter powered by a portable power generator may receive a distorted
power waveform, overheating the generator. In general, the generator capac-
ity should be five times that of the inverter (kVA).
!Caution Be sure that the input voltage matches the inverter specifications:
• Single-phase 200 to 240 V 50/60 Hz(0.1 kW~2.2 kW) for MX2-AB models
• Three-phase 200 to 240 V 50/60 Hz (0.1 kW~15 kW) for MX2-A2 models
• Three-phase 380 to 480 V 50/60 Hz (0.4 kW~15 kW) for MX2-A4 models
!Caution Be sure not to power a three-phase-only inverter with single phase power.
Otherwise, there is the possibility of damage to the inverter and the danger of
fire.
GGRB
N/ -
P/+
PD/+1
W/T3 V/T2U/T1T/L3 S/L2R/L1
Power input Output to Motor
GGRB
N/ -
P/+
PD/+1
W/T3 V/T2U/T1T/L3 S/L2R/L1
Power input Output to Motor
