By the following programming, the Calling Party Number and the Calling Party Name sent from the net-
work over CCIS can be displayed on the LCD of the analog telephone for Caller ID-Station.
HARDWARE REQUIRED
Analog telephone with LCD which supports Caller ID
SDT card (PN-4RSTF/PN-4RSTF-A)
LLC card (PN-4LLCB)
-48 V Power Supply (PZ-PW122)
DESCRIPTION DATA
Specify the calling party information which is
sent to the analog telephone for Caller ID-Sta-
tion.
•
(1)
(2)
Y=20
X-XXXXXXXX: Station No.
0: Calling Party Number
1: Calling Party Number and Calling Party
Name
Specify whether the calling station number is
sent to the analog telephone for Caller ID-Sta-
tion when an internal call is terminated.
(1)
(2)
507
0: Not sent
1: To send
Specify whether the calling party name is sent
to the analog telephone for Caller ID-Station
when an internal call is terminated.
[Series 3200 R6.1 software required]
NOTE 1: This data is effective only when the
2nd data of CM12 Y=20 is set to 1.
NOTE 2: For the programming for Calling
Number Display-CCIS and Calling
Name Display-CCIS, refer to the
NEAX 2000 IPS CCIS System Man-
ual.
(1)
(2)
524
0 : To send
(Calling Party Name is sent)
1 : Not sent
(Calling Party Number is sent)

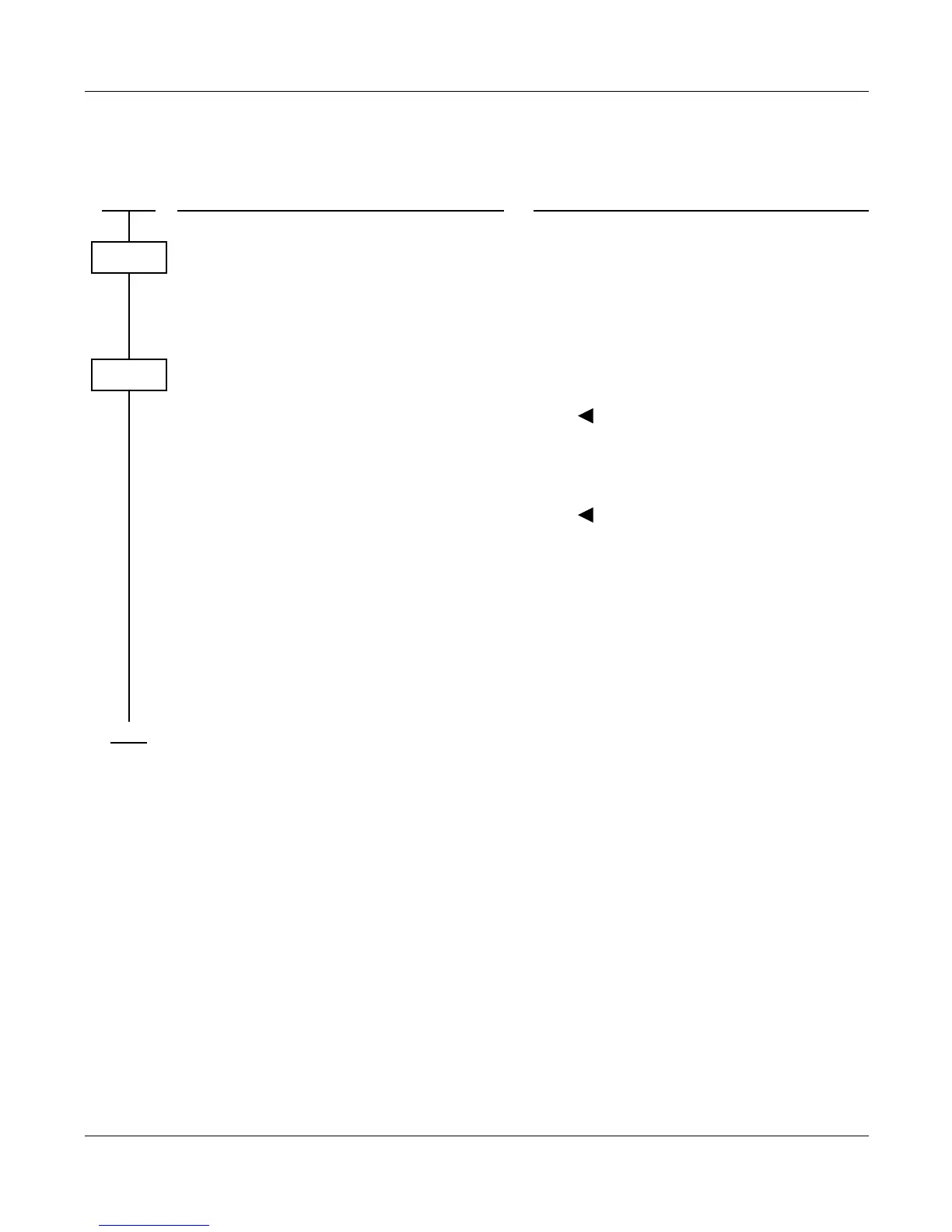

START
CM12
CM08
END
JULY/01/2006
CALLER ID-STATION
To Next Page
