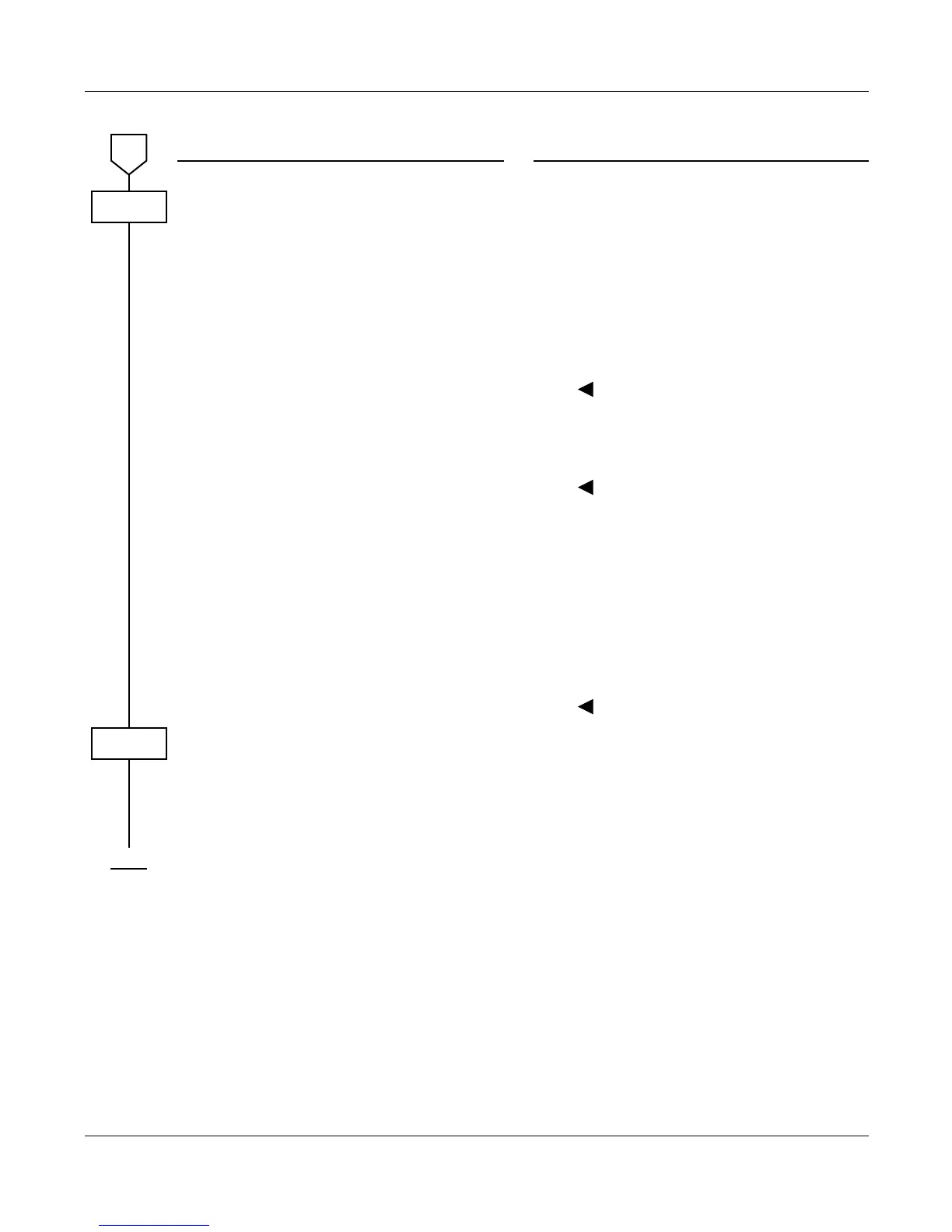

HARDWARE REQUIRED
DTMF Receiver (8RST card) × n
n: Depends on the number of DTMF stations and the traffic condition of the system.
DESCRIPTION DATA
Specify the DTMF Sender characteristics to
match the Central Office.
•
(1)
(2)
Y=24 DTMF Inter Digital Pause
00-63: Trunk Route No.
0 : 32 ms.
1 : 64 ms.
2 : 80 ms.
3 : 96 ms.
4 : 160 ms.
5 : 192 ms.
6 : 240 ms.
7 : 128 ms.
•
(1)
(2)
Y=26 DTMF Sender Signal Width
00-63: Trunk Route No.
0: 64 ms.
1 : 128 ms.
•
(1)
(2)
Y=46 DTMF Sender Release Timing
00-63: Trunk Route No.
0 : 2 seconds
1 : 4 seconds
2 : 6 seconds
3 : 8 seconds
4 : 12 seconds
5 : 14 seconds
6 : 16 seconds
7 : 10 seconds
Assign whether “*” or “#” from a DTMF Tele-
phone is used as a Switch Hook Flash while
hearing Busy Tone.
(1)
(2)
050: * is used as Switch Hook Flash
0: Effective
(1)
(2)
051: # is used as Switch Hook Flash
0: Effective
B
CM35
CM08
END
DIAL CONVERSION
