Quantum Scalar i500 User Manual

Chapter 12 Installing, Removing, and Replacing
Removing and Replacing the Library Control Blade and LCB Compact Flash Card
Scalar i500 User’s Guide 410
5 If the new LCB and compact flash card came in discrete packages,
insert the new compact flash card into the new LCB (or, if replacing
the compact flash card only, remove the existing compact flash card
and install the new one in the existing LCB).
6 Insert the new LCB into the vacant LCB slot on the back of the library.
When inserting the new LCB into the slot, be sure that the LCB LEDs
are located at the top of the blade, and that the latch hooks are on the
right side of the blade.
When sliding the new LCB into the slot, there should be no
resistance.

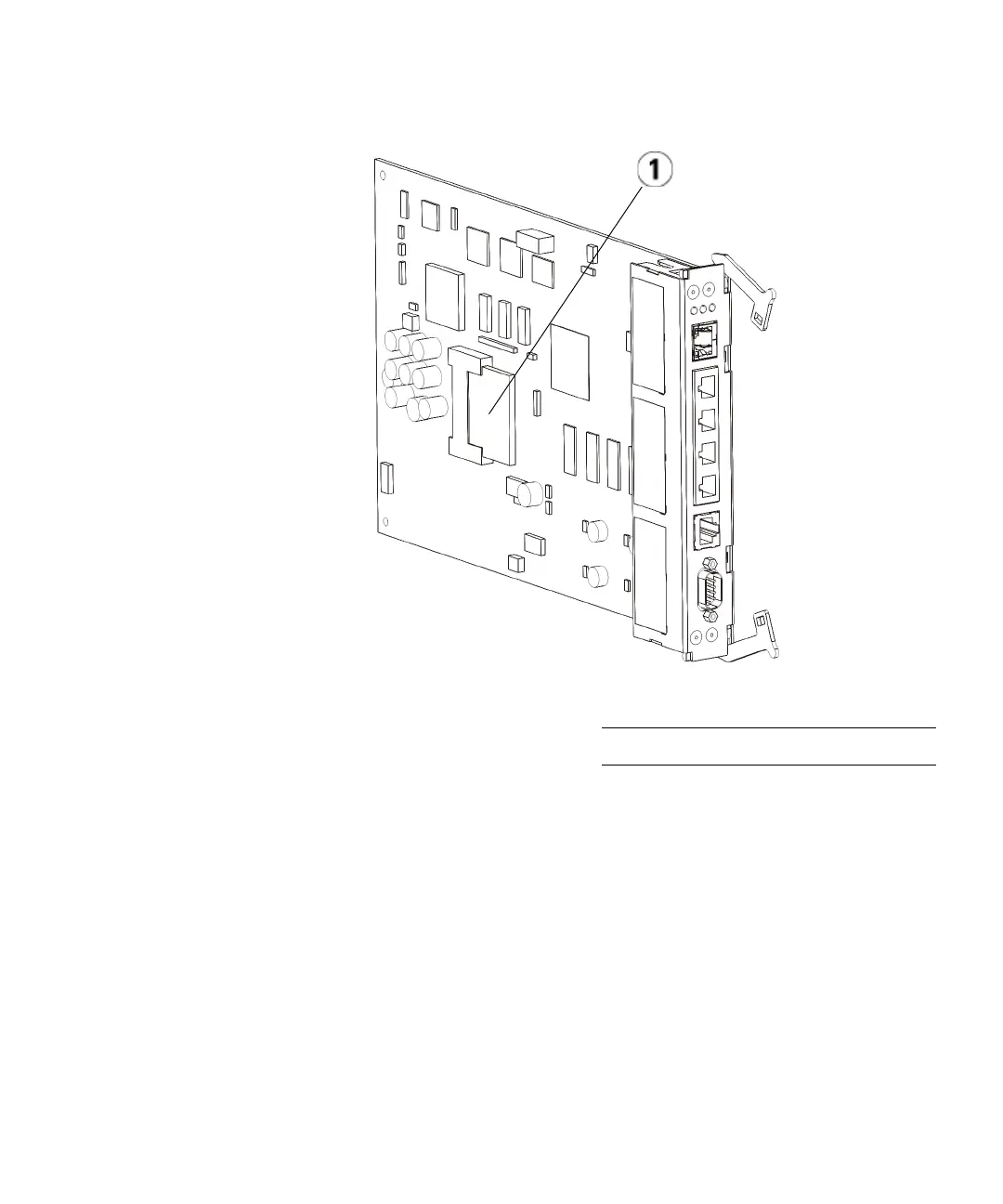

1 LCB compact flash card

Quantum Scalar i500 Specifications

General

Form Factor	Rack-mountable
Product Type	Tape Library
Weight	Varies by configuration
Power Consumption	Varies by configuration
Drive Support	LTO-8, LTO-7, LTO-6
Management	Web-based remote management
Drive Type	LTO Ultrium
Supported Media	LTO-5, LTO-6, LTO-7, LTO-8
Operating Temperature	10°C to 35°C
Humidity	20% to 80% (non-condensing)
Interface	SAS
