R&S FSW Series User Manual

Measurements and Results
R&S
®
FSW
142User Manual 1173.9411.02 ─ 43

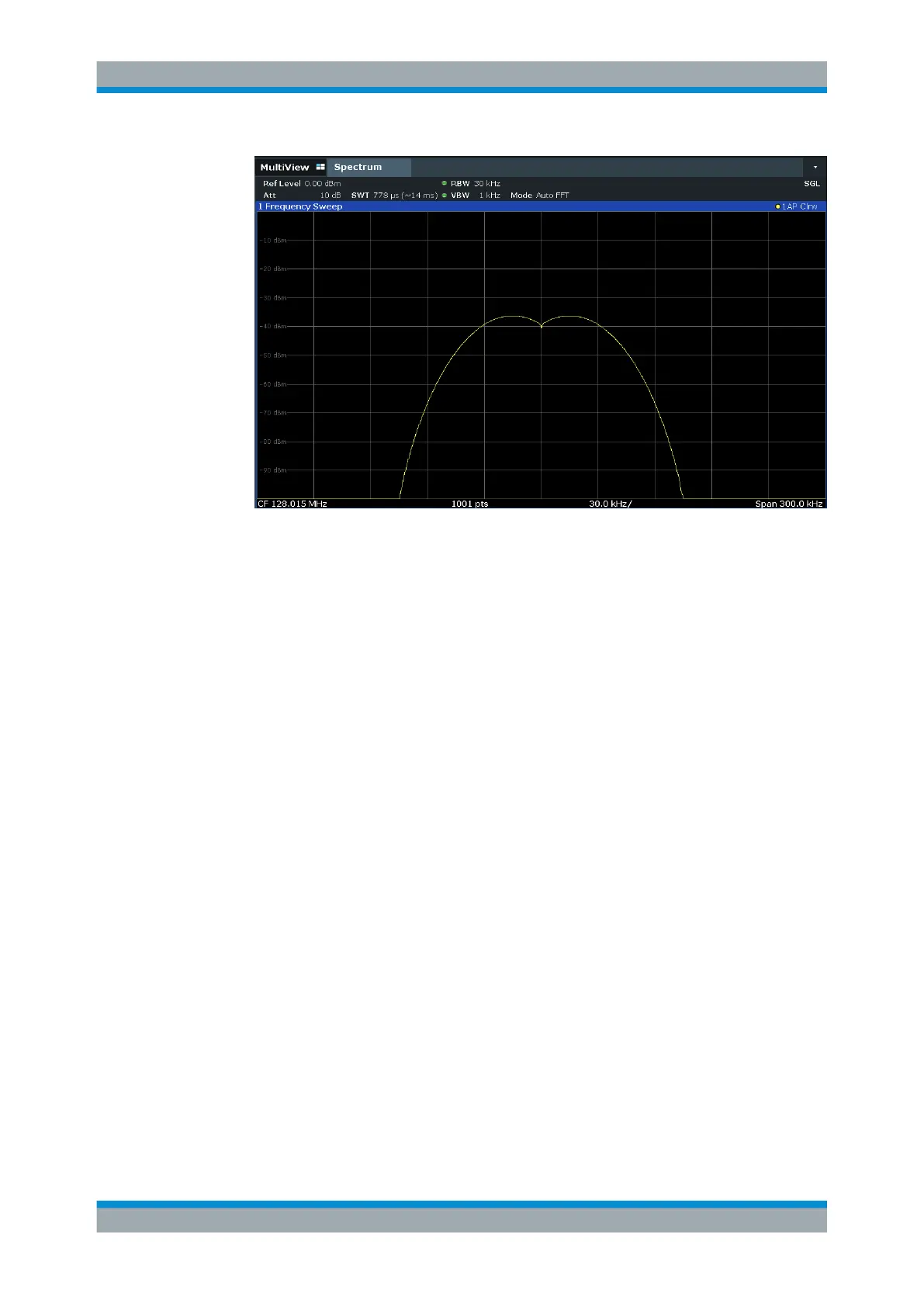

Figure 7-6: Measurement of two equally-leveled RF sinusoidal signals with the resolution band-
width which corresponds to the frequency spacing of the signals
Matching generator and R&S FSW frequencies
The level drop is located exactly in the center of the display only if the generator
frequencies match the frequency display of the R&S FSW exactly. To achieve exact
matching, the frequencies of the generators and the R&S FSW must be synchron-
ized.
5. Set the resolution bandwidth to 100
kHz.
It is no longer possible to clearly distinguish the two generator signals.
Basic Measurements
