Standard
The main measurement settings can be stored as a standard file. When such a stan-
dard is loaded, the required channel and general measurement settings are automati-
cally set on the R&S FSW. However, the settings can be changed. Predefined stand-
ards are available for standard measurements, but standard files with user-defined
configurations can also be created.

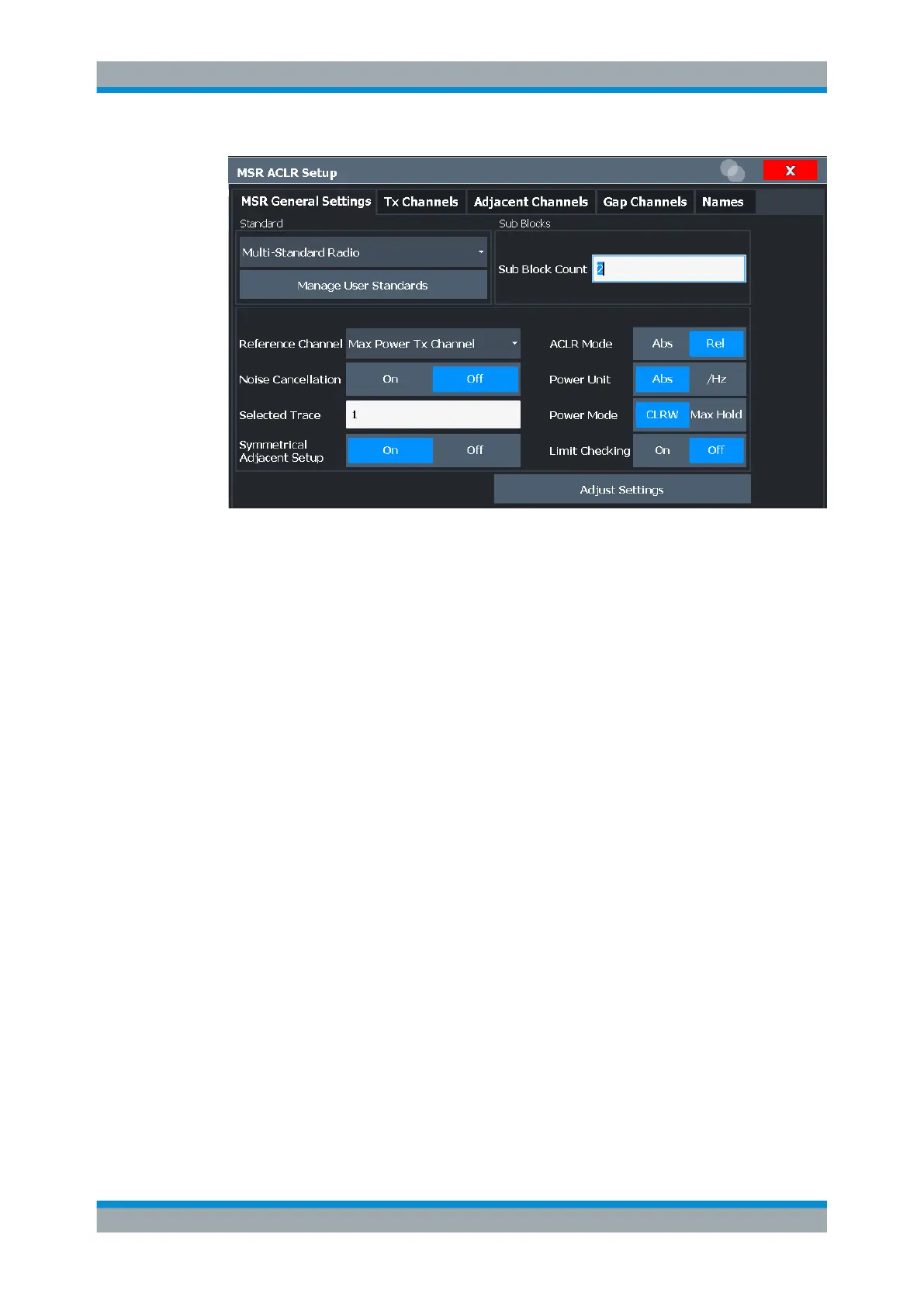

Note: If the "Multi-Standard Radio" standard is selected, the "ACLR Setup" dialog box
is replaced by the "MSR ACLR Setup" dialog box (see Chapter 7.2.5, "MSR ACLR
Configuration", on page 177).
If any other predefined standard (or "NONE") is selected, the "ACLR Setup" dialog box
is restored (see Chapter 7.2.4, "Channel Power Configuration", on page 168).
Note that changes in the configuration are not stored when the dialog boxes are
exchanged.
Channel Power and Adjacent-Channel Power (ACLR) Measurement
