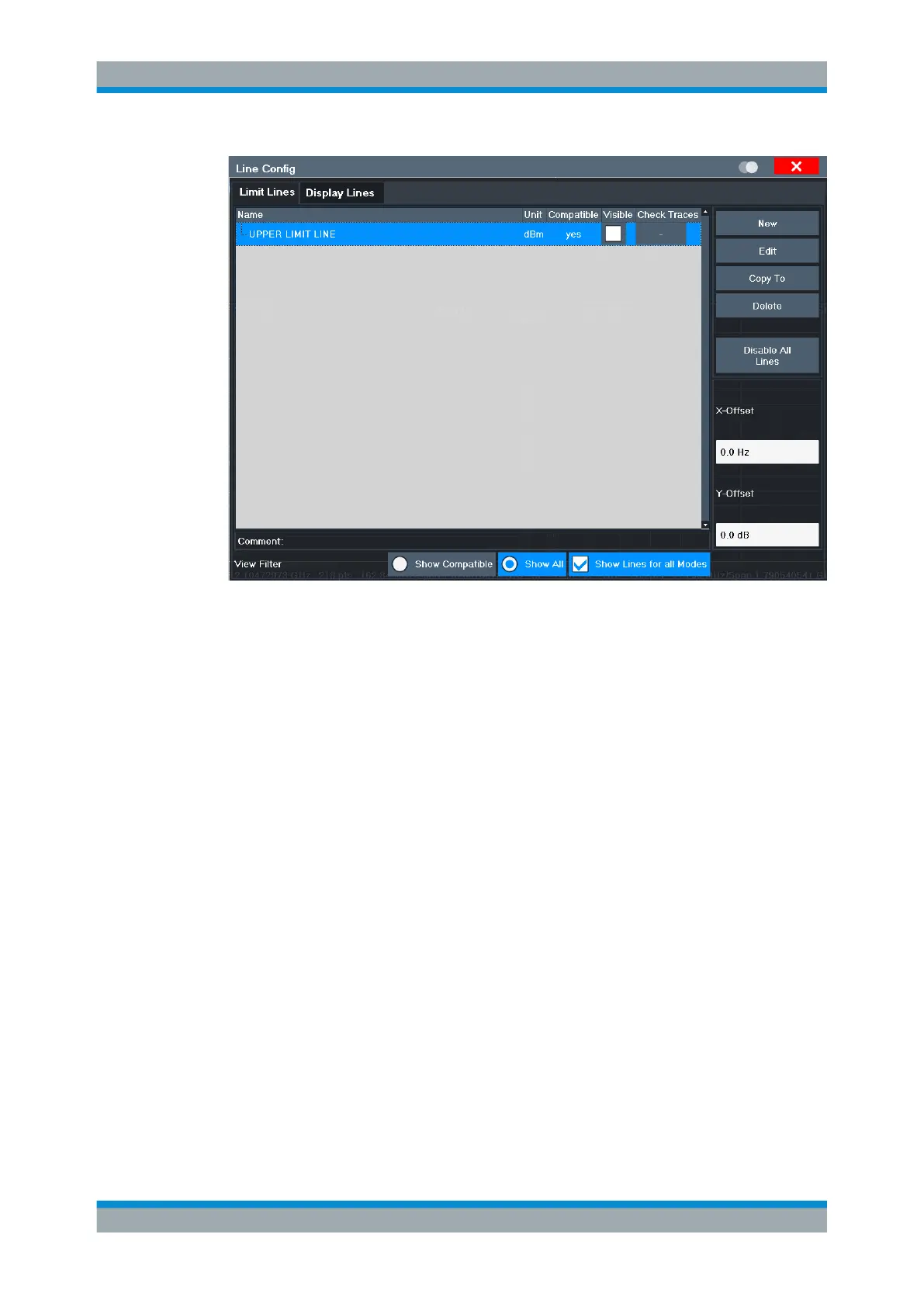

For the limit line overview, the R&S FSW searches for all stored limit lines with the file
extension .LIN in the limits subfolder of the main installation folder. The overview
allows you to determine which limit lines are available and can be used for the current
measurement.
For details on settings for individual lines see "Limit Line Details" on page 566.
For more basic information on limit lines see Chapter 9.4.2.1, "Basics on Limit Lines",
on page 559.
Name...........................................................................................................................564
Unit..............................................................................................................................565
Compatibility................................................................................................................565
Visibility....................................................................................................................... 565
Traces to be Checked................................................................................................. 565
Comment.....................................................................................................................565
Included Lines in Overview (View Filter)..................................................................... 565
â”” Show Lines for all Modes..............................................................................565
X-Offset.......................................................................................................................565
Y-Offset....................................................................................................................... 566
Create New Line......................................................................................................... 566
Edit Line...................................................................................................................... 566
Copy Line....................................................................................................................566
Delete Line..................................................................................................................566
Disable All Lines..........................................................................................................566
Name
The name of the stored limit line.
